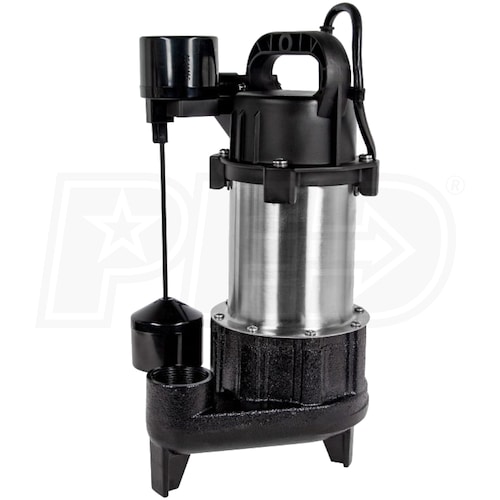

Little Giant 16EC-SSA-V - 1 HP Stainless Steel / Cast Iron Effluent Pump w/ PB Vertical Float
Model:
14942785
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5298 Gallons
Switch Type
Vertical
- Little Giant 16EC-SSA-V - 1 HP Stainless Steel Auto Effluent Pump
- Continuous duty rated for sump & light effluent applications
- Stainless Steel Motor Housing w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (8-Amps full load)
- Cooler running motor which extends the life of the pump
- Piggyback Vertical Float Switch
- Double-seal design minimizes switch corrosion
- Turns On at 9.5"-11.5" and turns Off at 3.5"-5.5"
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 3/4" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel motor shaft, screws and bolts
- 10-Foot Power Cord
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
14942785
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Stainless Steel
Impeller Material
Composite
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float

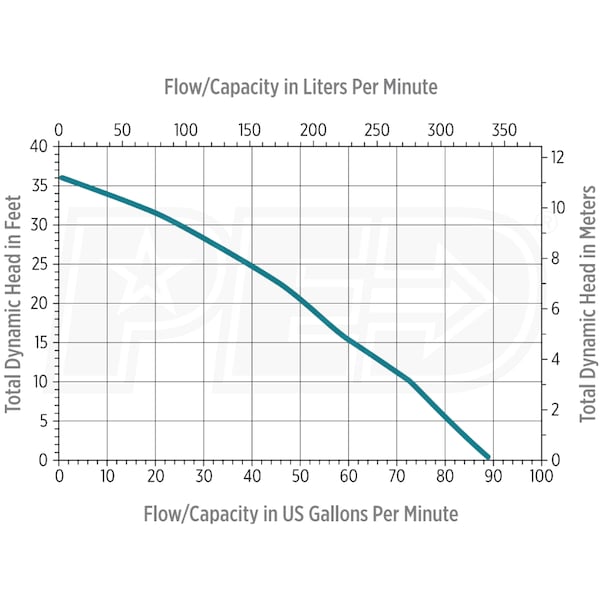

GPH @ 0 feet
5298
GPH @ 5 feet
4800
GPH @ 10 feet
4320
GPH @ 15 feet
3600
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Float On
9.5-11.5
Float Off
3.5-5.5
Manual Override
Yes
Max Head
30 Feet
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
29.8 Pounds
Consumer Warranty
3 Years
Product Length
8.9 Inches
Product Width
8.4 Inches
Product Height
11 Inches
UPC
0010121016422
