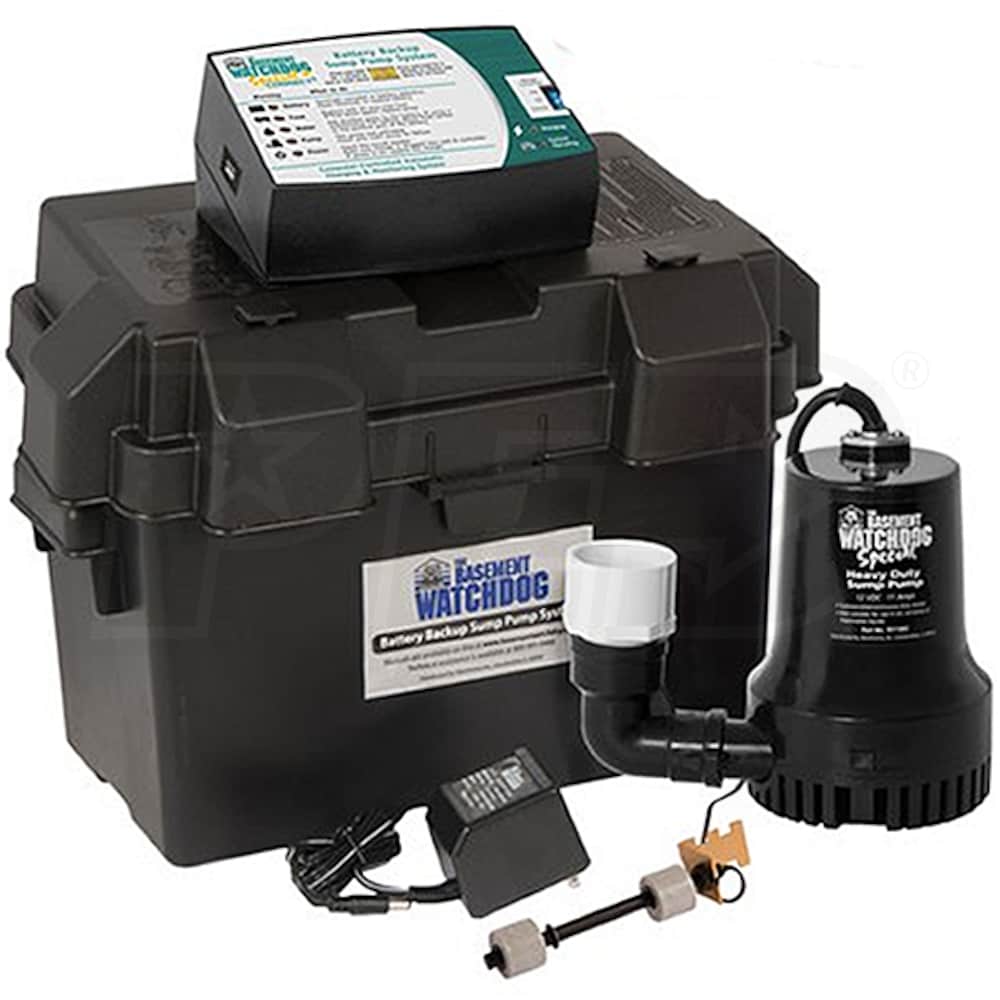

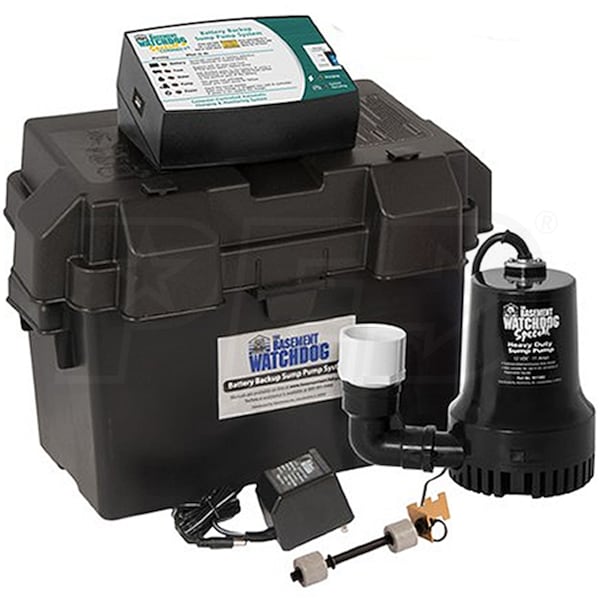

Basement Watchdog BWSP - Special CONNECT® Backup Sump Pump (1850 GPH @ 10')

Name: Basement Watchdog BWSP - Special CONNECT® Backup Sump Pump (1850 GPH @ 10')
Brand: Basement Watchdog
SKU: 1854
Price: 266.00 USD
Availability: InStock
Rating: 4.38 (21 reviews)

Model:

BWSP

Write A Review

$266.00

Free Shipping

In-Stock

Ships Monday, Dec 23rd

Shipping to60601

Basement Watchdog BWSP - Special CONNECT® Backup Sump Pump (1850 GPH @ 10')

Model: BWSP

$266.00

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Back-up

GPH

2600 Gallons

Switch Type

Vertical

Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."

The Basement Watchdog® Special CONNECT® is America's most popular battery backup sump pump system because it delivers great protection to prevent basement flooding, while communicating through WiFi to you and your other smart tech. This affordable, backup system has proven its dependability for decades. The combination of Basement Watchdog's built-in monitoring and alarm features, plus the high pumping capacity of the pump, ensure that it's ready to perform in any emergency. Pumps up to 2,600 GPH. With the purchase of the BW CONNECT® Module, text and email alerts will be sent to you automatically in case of any issue or maintenance needs.

Protect Your Basement from Flooding
Automatically starts when your existing sump pump fails
Senses power outages
Exclusive Monitoring System
Controller monitors power conditions and battery life
Sounds alarm during failure or required maintenance
Unique charging circuit limits the battery from overcharging
Remote Notification - now able to communicate with an
Auto Dialer, Home Security System or other device
Backup Sump Pump
Empties the sump pit after a malfunction, outage or excess water
Pumps 2600 gallons-per-hour @ 0' lift (or 1850 GPH @ 10')
Switches to 12-volt DC battery power when AC power fails
1.6-Amp Battery Charger
Now AGM Battery Compatible
Recharges battery when power is restored
Dual Float Switch
Added redundancy for protection and piece of mind
Only needs to move 1/4" to activate the pump
USB Port For Connection to Watchdog / Pro Series Wifi Module
Allows for advanced notification and system status
Requires Watchdog / Pro Series Wifi Module (Sold Separately)
BATTERY & BATTERY ACID IS SOLD SEPARATELY
For Indoor Use Only

Specifications

BWSP

General Information

Product Category

Sump Pump

Base

Base Material

Thermoplastic

Motor

Voltage

12 Volt DC

Running Amps

Battery Included

Starting Amps

Pump

Housing Material

Thermoplastic

Impeller Material

Plastic

Handles Solids

Float Type

Vertical Float

GPH @ 0 feet

2600

GPH @ 10 feet

1850

Check Valve Included

Battery Recharger

1.6 Amps

Overview

Product Category

Sump Pump

Weight

10 Pounds

Made in USA

Consumer Warranty

2 Years

UPC

717301121531

Accessories

Alarm

Yes

Wi-Fi enabled

Reviews

(21)

Basement Watchdog BWSP Reviews & Ratings

Product Q&A

(15)

Product Questions Answered by Jim, the Sump Pump Expert

I've owned and used Basement Watchdog battery backup systems for a long time and they have always performed very well for me but I see all these new systems with notification, self-testing and other nice features that would be great to have in a lower cost system. Will they ever improve or upgrade this system?

Simon F

from Wisconsin

November 14, 2014

Answer

Thank you for your interest in Sump Pumps Direct. And funny you should ask, Simon! Basement Watchdog has recently updated the controller in the BWSP. The newly updated system has been on the shelves and in circulation for about a year now. According to Basement Watchdog, the updated controller has proven its reliability, having sold over 10,000 systems - with only 5 defective units to date.

While this new controller has some similarities to our previous one, some significant hardware and software changes have been made. Those changes include:

• Remote Notification - We have added in terminals which allow for remote notification. This system is now able to communicate with an Auto Dialer, Home Security System or other device, to alert home owners to problems or required maintenance

• AGM Compatible - The most popular revision allows the customer to utilize wet cell, or AGM maintenance free batteries

• Improved Charging System – Improved battery monitoring and charging system

• Weekly Pump Activation – The system will run the pump for a few seconds every week to not only test the pump but to also exercise it which will help prolong the life of the pump

Was this answer helpful?

Yes

Which is better, a battery back-up system or a water back-up system?

Linda L

from Kentucky

February 06, 2014

Answer

Depending on the water table in your area and the potential for flooding you could go either way. If your water removal needs are below average, you could elect to go with a low GPH rated battery backup sump pump or water powered backup. Please note that water powered systems will only work with a minimum of 20-40 PSI. They will not work if you draw your water from a well. The typical water powered system would provide between 300-1000GPH of pumping capacity. If you're in a little higher water table that the flooding potential is a bit higher, you may want to consider a battery backup system rated at between 1000-2300GPH. If the flooding potential and water table are very high, you might look at the systems rated at 2400GPM and higher. You should also check with your local municipality to make sure that they are allowed as some municipalities have outlawed them as they do waste water in a sense.

Was this answer helpful?

Yes

Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.

Larry

from Illinois

January 22, 2014

The sump pump is in small room in the basement with poor ventilation. This system has a battery with a charger. Doesn't charging the battery release gases? Are those gases harmful when inhaled?

from Colorado

February 05, 2013

Answer

Thank you for visiting Sump Pumps Direct. In answer to your question, YES, batteries will produce harmful gases when charging.

This is what the Basement Watchdog Owners Manual has to say regarding the subject.

Explosive gases could cause serious injury or
death. Cigarettes, flames or sparks could
cause battery to explode in enclosed spaces.
Charge in well-ventilated area. Always
shield eyes and face from battery. Keep vent
caps tight and level.
To help reduce these risks, observe the
following precautions:
• NEVER smoke or allow a spark or flame in the
vicinity of the battery.
• Use the Basement Watchdog Special control
unit for charging a LEAD-ACID battery only.
Do not use the control unit for charging drycell
batteries that are most commonly used
with home appliances.
• Be sure the area around the battery is well
ventilated.
• When cleaning or adding water to the battery,
first fan the top of the battery with a piece of
cardboard or another non-metallic material to
blow away any hydrogen gas that may have
been emitted from the battery.
• DO NOT drop a metal tool onto the battery. It
might spark or short-circuit the battery and
cause an explosion.
• Remove personal metal items such as rings,
bracelets, watches, etc. when working with a
lead-acid battery. A short circuit through one
of these items can melt it causing a severe
burn.
• ALWAYS remove the charger from the electrical
outlet before connecting or disconnecting the
battery cables. Never allow the rings to touch
each other.
• Check the polarity of the battery posts. The
POSITIVE (+) battery post usually has a larger
diameter than the NEGATIVE (-) post.
• When connecting the battery cables, first
connect the small ring on the end of the
BLACK wire to the NEGATIVE (-) post of the
battery, and then connect the large ring on
end of the RED wire to the POSITIVE (+) post
of the battery.

Was this answer helpful?

Yes

Hi Jim, I am looking for a battery only sump pump that will pump 1500gph and I see the watchdog. I am looking to use this with battery only because power is not available for this project. I want to connect two batteries in parallel to give me more amperage. I am going to tie solar panels for charging purposes. My question is will it run if AC voltage is not there or will it turn on and off as water come in and raises the float? Thanks

Kenneth Arnett

from Mississippi

August 16, 2012

Answer

First off, the Basement Watchdog Special, model BWSP is not designed to operate with multiple batteries and will not do so. The only Basement Watchdog model capable of that would be the BIG DOG system. As long as the batteries are charged, it will operate whenever the float activates the pump. The Big Dog will also operate on AC power when it is available and DC power when the AC is not available.

Was this answer helpful?

Yes

Hi Jim, can I use the Basement Watchdog BWSP - Special Backup Sump Pump (1730 GPH @ 10') with a pedistal pump? I have considered the submeriable main sump pumps, but I like the ability to control the float on/off more with the pedistals for longer run times. Thanks!

Mike

from Michigan

August 12, 2012

I have a customer who wants to install a Sump Pump w/ Battery Back-up in an open stairwell. The battery and controller will be approximately 14' away inside the residence. Can I cut the control cable and splice the same gage wire to the inside location? Or will I new a heavier gage because of DC voltage?

Russell

from Maryland

April 23, 2012

Answer

For starters, the battery and control panel MUST be located indoors. The float switch and pump include 8' cables. Those can be extended a maximum 26' as long as the same gauge wire is used. The control wire or thinner gauge wire can be spliced as long as the gauge is the same or thicker.

12' extension cables with the Molex plugs for the pump and float are available direct from Basement Watchdog at 800-991-0466.

You would also need to provide extra protection from any possible freezing as this could potentially damage the pump beyond repair.

Was this answer helpful?

Yes

Is the PeakFlow 12v maintenance free deep cycle 120ah AGM battery compatible with the WatchDog BW4000 pump system and charger ? Will it last 7.5hrs in continuous mode like the battery sold with the kit? What is the shelf life if used 2x a year intermittently for 1hr. for

Walter

from Michigan

March 12, 2012

Answer

Per the instructions for the Basement Watchdog battery backup systems, DO NOT use a maintenance-free or a sealed battery. They are made of different materials and
will trigger a false “Battery problem” alarm.
A new Basement Watchdog 7.5 Hour Standby Battery, model 30HDC140S will run this system for a minimum of 7.5 hours continuously. However, most of the time the pump will turn on and off, and the battery will run the pump intermittently for days. In addition, the unique materials in the battery enable it to last for five to seven years in standby service.

Was this answer helpful?

Yes

If the backup pump is activated due to heavy water flow (to help the main pump) and the AC power stays on, will the system keep charging the battery to allow the backup pump to keep running indefinitely?

Scott Mueller

from Connecticut

January 24, 2012

will the watchdog special backup pump work with an existing sump pump? A few years ago we tried to add a battery backup and it wouldn't work with our current pump. So all I need to buy is the battery backup and install to my current sump pump? Thank you, Shari

Shari

from Ohio

December 06, 2011

Answer

Short of a generator or an .Auxiliary Power System, there is no other option for a "battery backup" for your 120 volt primary sump pump.
The Basement Watchdog Special battery backup sump pump system, like any other battery backup sump pump system is designed to be installed along with your primary or 120 volt sump pump. The battery requirements for the Basement Watchdog Special are as follows:
A new Basement Watchdog 7.5 Hour Standby Battery will run this system for a minimum of 7.5 hours continuously. However, most of the time the pump will turn on and off, and the battery will run the pump intermittently for days. In addition, the unique materials in the battery enable it to last for five to seven years in standby service.

• The use of automotive batteries is NOT recommended.
Automotive batteries are not designed for this application. They will only run the pump for a short time and will have a shorter life than a standby battery.
• DO NOT use a maintenance-free or a sealed battery. They are made of different materials and will trigger a false “Battery problem” alarm.
• The battery fluid sensor and cap are designed to fit the Basement Watchdog batteries. Measuring the battery fluid is one of the most important features of the system; since about 80% of backup sump pump failures are the result of a dead battery

Was this answer helpful?

Yes

How can I tell how much GPH I need to go with my battery back up? How can I tell when my sump pump needs replacing?

Aaron

from Ohio

March 05, 2011

Answer

A typical sump pump will usually last anywhere between 5 & 7 years. When replacing, you should replace it with the same HP rating unless your pump has a difficult time keeping up with water to be ejected. As for the backup system, that would depend on the amount you are willing to spend and how much water you want your backup to eject. The higher the GPH, the higher the cost. However, you should just think of it as cheap insurance.

Was this answer helpful?

Yes

what parts do i need to install the watchdog 1730 dachuo sump pump

Mel

from Indiana

March 04, 2011

Do I need to leave my battery backup system charging at all times?

Patrick Mcclone

from Wisconsin

January 03, 2011

If I buy a Basement Watchdog pump do I need a Basement Watchdog battery?

Karen

from Illinois

January 03, 2011

Answer

You can use any deep cycle marine battery, as long as it is not maintenance-free. However, there are several advantages to using a Basement Watchdog battery. The Watchdog battery accommodates the system’s fluid sensor which will sound an alarm when the battery needs water…a very important feature, since a dry battery will not perform. In addition, Basement Watchdog batteries run longer per charge, and last years longer. A typical marine battery will last 2-4 years, while the Watchdog battery will last approximately 5-7 years. Basement Watchdog batteries are shipped dry (without acid) so they stay fresh on the shelf indefinitely, while wet batteries have a short shelf life.

Update 11/16/15: Basement Watchdog has changed this requirement around 2013 and their backup systems will now accept maintenance free batteries. Please refer to their updated installation manual for instructions on the proper method for this battery installation.

Was this answer helpful?

Yes

Why doesn't this model come with a battery?

Jon

from Illinois

December 29, 2010

Answer

The same reason batteries are sold separately with toys.

Basement Watchdog builds thousands of these at a time - but they do not sell all at once.

Some units will naturally sit on the shelf longer than others.

To ensure the unit works right out of the box, we frequently purchase a limited supply of batteries and constantly rotate our stock.

This is a great replacement model. If you want a new system with a fresh battery, get the SPD-BWSPKIT instead.

Was this answer helpful?

Yes
