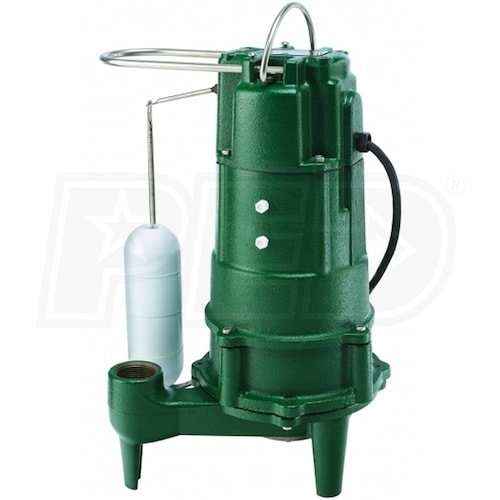

Zoeller M805 - 3/4 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float
Model:
805-0001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
Vertical
- Zoeller Shark® M805 - Automatic Residential Grinder Pump
- World's first integral automatic grinder; Up to 35' Max Head
- 3/4 HP Thermally Protected Motor (115V - 3400 RPM)
- Oil-filled & hermetically sealed to prevent overheating
- Stainless Steel Tri-Slice® Cutter Technology
- 3 Independent cutting channels provide over 250,000 cuts/min
- Cast Iron Motor Housing & Pump Housing
- Provides heat dissipation for extended life cycle & durability
- Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
- Assures maximum protection for extended pump life
- Vertical Float Switch
- Solid and buoyant polypropylene design
- 1-1/4" NPT Discharge
- Easily connects to your current discharge line
- Stainless Steel Screws, Bolts & Lifting Handle
- Designed to minimize corrosion in hard environments
- Makes this pump easy to install, service and remove
- Industry Leading Quality Control
- Entire unit is pressure tested after assembly
- 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
805-0001
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Vertical Float
GPH @ 0 feet
2400
GPH @ 5 feet
2400
GPH @ 10 feet
2200
GPH @ 15 feet
1980
GPH @ 20 feet
1740
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Float On
13 Inches
Float Off
5.75 Inches
Engine
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514364700
