Zoeller M803 - 1/2 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float

Model:

803-0001

Recommended
Write A Review
$1,042.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Thursday, Oct 31st
Shipping to60601

Zoeller M803 - 1/2 HP Cast Iron Residential Grinder Pump (1-1/4
Zoeller M803 - 1/2 HP Cast Iron Residential Grinder Pump (1-1/4") w/ Vertical Float
Model: 803-0001
$1,042.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

2100 Gallons

Switch Type

Vertical

  • Zoeller Shark® M803 - Automatic Residential Grinder Pump
  • World's first integral automatic grinder; Up to 35' Max Head
  • 1/2 HP Thermally Protected Motor (115V - 3400 RPM)
  • Oil-filled & hermetically sealed to prevent overheating
  • Stainless Steel Tri-Slice® Cutter Technology
  • 3 Independent cutting channels provide over 250,000 cuts/min
  • Cast Iron Motor Housing & Pump Housing
  • Provides heat dissipation for extended life cycle & durability
  • Carbon/Ceramic Shaft Seal & Upper/Lower Ball Bearings
  • Assures maximum protection for extended pump life
  • Vertical Float Switch
  • Solid and buoyant polypropylene design
  • 1-1/4" NPT Discharge
  • Easily connects to your current discharge line
  • Stainless Steel Screws, Bolts & Lifting Handle
  • Designed to minimize corrosion in hard environments
  • Makes this pump easy to install, service and remove
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

803-0001
specs product image PID-50853
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
15 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Float Type
Vertical Float

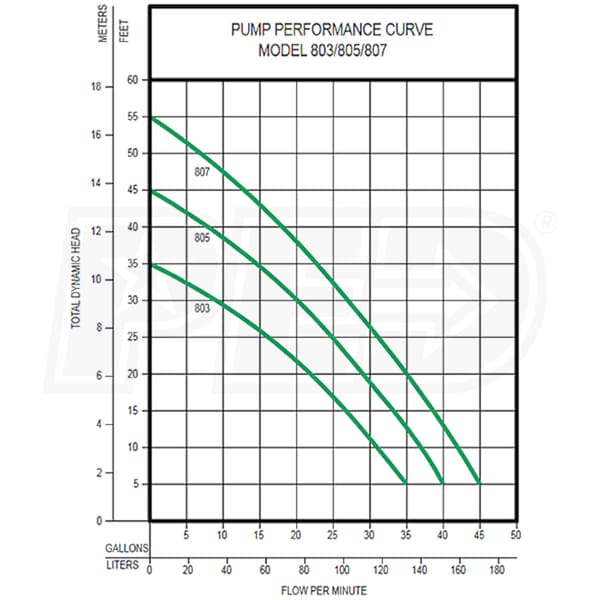

GPH @ 0 feet
2100
GPH @ 5 feet
2100
GPH @ 10 feet
1920
GPH @ 15 feet
1650
GPH @ 20 feet
1380
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Float On
13 Inches
Float Off
5.75 Inches
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
65 Pounds
Consumer Warranty
3 Years
Product Length
13 Inches
Product Width
8.9 Inches
Product Height
17.25 Inches
UPC
053514365080
