Zoeller 508-0014 - Aquanot Fit Battery Backup Sump Pump System (7A Charger) w/ WiFi (1800 GPH @ 10')
Model:
508-0014
+
Share This Product
Similar Products
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
6
$221.25
In-Stock
$309.99
In-Stock
$341.25
In-Stock
Model: THP207M
$24.99
Only 1 In-Stock
Model: MI20139
$63.00
Factory-Direct
Features
Style
Back-up
GPH
2340 Gallons
Switch Type
Vertical

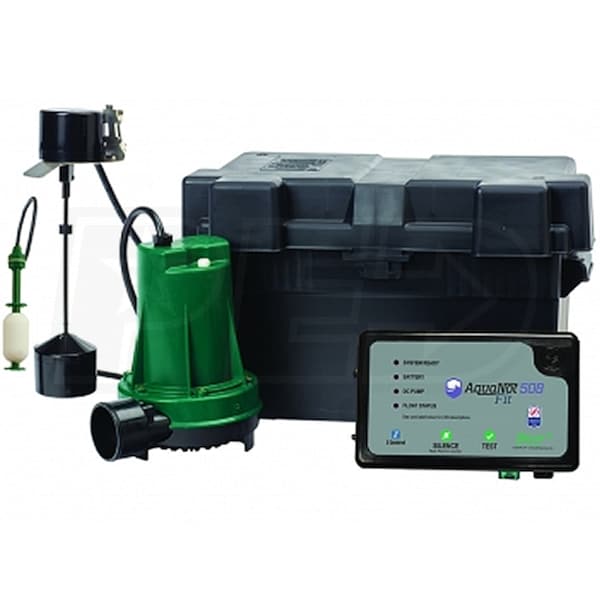

- Zoeller Aquanot® Fit Battery Backup Sump Pump System
- Internet-connected system with Z Control® Technology
- Z Control® Cloud - Test, Run, Silence, Reset & More
- Easily control your pump from your mobile device
- Mobile App allows for total piece of mind
- *Zero Monthly Monitoring Fees*
- Aquanot® Active 508 DC Controller w/ Z Control® Wi-Fi Gateway*
- Self-testing diagnostics for added protection
- Allows for email /text / push notifications of alarms and alerts
- Plus remote access and control, and online configurability
- Built-In Alerts For High-Water, Pump Cycled, Faults & Issues
- Easily silence/reset alarm with the push of a button
- 7-Amp Automatic Battery Charging System
- Self-contained design w/ Battery burnout & overcharge protection
- 12-Volt, Highly Efficient Backup Sump Pump (9' Leads)
- Aluminum seal pocket and cooling plate for extended operation
- Quick-disconnect discharge & pump legs make installation a breeze
- Dual Switch Design
- Compact, low-voltage design for reliable operation
- Adjustable, main vertical float switch
- Vertical reed sensor for high water and redundancy
- Furnished With All Required Fittings
- Heavy-duty, integrated DC pump discharge check valve
- Corrosion-Resistant battery box (Fits Group 27, 29 or 31 batteries)
- BATTERY & PRIMARY PUMP SOLD SEPARATELY
- *Requires an internet connection and wireless router (Not Included)
- 3-Year Limited Warranty
- For Indoor Use Only
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
508-0014
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
12 Volt DC
Battery Included
No
Power Cord Length
6 Feet
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Vertical Float
GPH @ 0 feet
2340
GPH @ 5 feet
2340
GPH @ 10 feet
1800
GPH @ 15 feet
600
GPH @ 20 feet
360
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Max Head
22 Feet
Submersible
Yes
Remote Monitoring
Yes
Overview
Product Category
Sump Pump
Consumer Warranty
3 Years
UPC
053514451035
Accessories
Alarm
Yes
Wi-Fi enabled
Yes
Reviews
(4)
Zoeller 508-0014 Reviews & Ratings
Zoeller is the name you hear most when it comes to pumps and this latest entry is the new & improved battery backup with higher head capability, higher pumping capacity, a re-designed, U.S Built pump and more bells and whistles on the controller, including an app based monitoring system.
This pump will provide a 30GPM capacity at a 10-foot head with a max head of 20 feet! The pump is built by Zoeller at their Louisville, KY. plant and the controller have undergone a total re-design which now includes a Zoeller run and operated App that provides alerts on system operation, built-in alarms with Zoeller's own Z Control Cloud connectivity which allows for testing the system, running the system, silencing alarms, resets & more from your mobile device. The Mobile App also allows for total peace-of-mind with *Zero Monthly Monitoring Fees.
This backup system will work with a wet cell or maintenance free 12V deep cycle and comes with a 3 year warranty.
You'll never go wrong with Zoeller and when you consider all that this system has to offer at a very reasonable price.
This pump will provide a 30GPM capacity at a 10-foot head with a max head of 20 feet! The pump is built by Zoeller at their Louisville, KY. plant and the controller have undergone a total re-design which now includes a Zoeller run and operated App that provides alerts on system operation, built-in alarms with Zoeller's own Z Control Cloud connectivity which allows for testing the system, running the system, silencing alarms, resets & more from your mobile device. The Mobile App also allows for total peace-of-mind with *Zero Monthly Monitoring Fees.
This backup system will work with a wet cell or maintenance free 12V deep cycle and comes with a 3 year warranty.
You'll never go wrong with Zoeller and when you consider all that this system has to offer at a very reasonable price.
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Verified Buyer
Very Pleased
By Jim V
New Jersey
Purchased 08/09/2024 |
Review Posted 09/03/2024
Very well thought out package. Everything that I needed to complete the installation was included in the box. The backup pump and floats fit in my existing sump with my existing Zoellar pump. Controller was easy to install. Wires just plug in and was easy to connect to the Cloud .
Jim V Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, I'd Buy It Again, Features, Exceeded Expectations
Cons:
None
Verified Buyer
Mates Purge Toy With My Zoeller M78 Pump
By Loren C.
Fenton, Michigan
Purchased 06/29/2021 |
Review Posted 07/20/2021
It mates perfectly with my Zoeller m78 pump. All the parts I needed were supplied. Just needed tools and pvc glue. I install was easy and worked. I did have to adjust the float and high water float a few times and change their location so that my discharge pipes into the sump aren’t ever flooded ( even at the high water mark). The high water float forces the dc pump on as well as sounds an alarm. This protects against a float malfunction on the dc pump.
It did take multiple tries to get the controller setup on my wifi. The process was producing an error message . I double checked all my names and passwords after the first error. On the fourth or fifth try it worked.
It has completed a couple of self tests and sends me real-time email notifications and to the mobile app as well. You get a full diagnostic report. So if you have a float fault that isn’t fixed with a reset, you could get a neighbor or relative to take care of it while your gone.
It did take multiple tries to get the controller setup on my wifi. The process was producing an error message . I double checked all my names and passwords after the first error. On the fourth or fifth try it worked.
It has completed a couple of self tests and sends me real-time email notifications and to the mobile app as well. You get a full diagnostic report. So if you have a float fault that isn’t fixed with a reset, you could get a neighbor or relative to take care of it while your gone.
Loren C. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Easy To Use, High Quality, Id Buy It Again
Cons:
Expensive
Verified Buyer
WiFi Connectivity And Features Are Great + A Good Pump/redundan
By Tod L.
YORKVILLE, Illinois
Purchased 12/30/2019 |
Review Posted 01/20/2020
Added this to my non-switched Zoeller N57, with a LevelGuard switch. Installation was easy the Zoeller Youtube video was very helpful.
The backup pump is whisper quiet with plenty of capacity. The redundancy on the switches is good: my Level Guard + backup float switch + backup-backup high-level reed switch.
The smart WiFi controller set-up was easy, connecting to my mesh router, and using the app on my iPhone and iPad. Follow the instructions. (Note: I confirmed my WiFi signal in this corner of the basement before purchasing.) A few account functions are limited to using a Windows PC this is noted in the instructions.
This WiFi-enabled controller is pricey, but works great. I wanted the connectivity to understand what’s happening with the power outages, back-up pump operation, and battery conditions. Several notifications and alerts are available and weekly testing confirmations are great. Connectivity has been solid since the installation. I emailed Zoeller to clarify a couple of things on the ZControl Cloud alerts. Elliot was prompt and had great technical know-how on the controller.
The backup pump is whisper quiet with plenty of capacity. The redundancy on the switches is good: my Level Guard + backup float switch + backup-backup high-level reed switch.
The smart WiFi controller set-up was easy, connecting to my mesh router, and using the app on my iPhone and iPad. Follow the instructions. (Note: I confirmed my WiFi signal in this corner of the basement before purchasing.) A few account functions are limited to using a Windows PC this is noted in the instructions.
This WiFi-enabled controller is pricey, but works great. I wanted the connectivity to understand what’s happening with the power outages, back-up pump operation, and battery conditions. Several notifications and alerts are available and weekly testing confirmations are great. Connectivity has been solid since the installation. I emailed Zoeller to clarify a couple of things on the ZControl Cloud alerts. Elliot was prompt and had great technical know-how on the controller.
Tod L. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
4/5
Pros:
Features, Easy To Use, Quiet, Id Buy It Again
Cons:
Price
