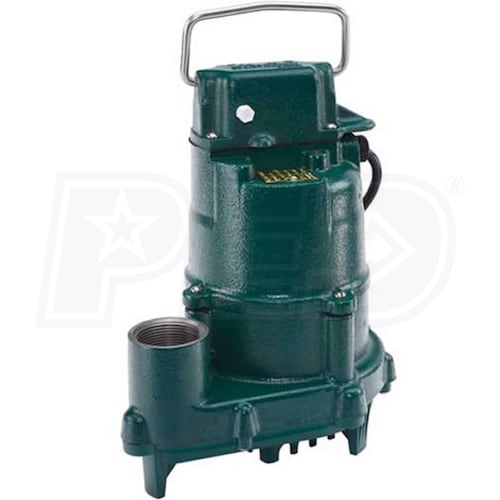

Zoeller N152 - 4/10 HP Cast Iron High Head Effluent Pump (Non-Automatic)

Model:

152-0002

Write A Review
$338.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Dec 23rd
Shipping to60601

Zoeller N152 - 4/10 HP Cast Iron High Head Effluent Pump (Non-Automatic)
Zoeller N152 - 4/10 HP Cast Iron High Head Effluent Pump (Non-Automatic)
Model: 152-0002
$338.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

4140 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch or Control Panel***
  • Zoeller N152 High Head Dose-Mate Submersible Effluent Pump
  • Provides up to 38' Max Head
  • For septic tank, low pressure pipe (LPP) & enhanced flow step systems
  • Durable Cast Iron Construction (Pump Housing & Base)
  • Corrosion-resistant powder coated epoxy finish
  • 4/10 HP Thermally Protected Motor (3450 RPM)
  • Oil-filled & hermetically sealed to prevent overheating w/ auto-reset
  • Non-Clogging Engineered Thermoplastic Vortex Impeller
  • Passes 3/4" spherical solids - No screens to clog
  • Carbon/Ceramic Shaft Seal & Upper/Lower Sleeve Bearings
  • Assures maximum protection for extended pump life
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel screws, guard, handle, arm and seal assembly
  • 1-1/2" NPT Discharge
  • Allows for easy connection to your discharge line
  • Also includes 1-1/2" x 2" PVC adapter fitting
  • 20' Power Cord
  • UL Listed 3-wire neoprene cord and plug
  • Industry Leading Quality Control
  • Entire unit is pressure tested after assembly
  • 3-Year Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

152-0002
specs product image PID-72672
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Nominal Voltage
120 Volt
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch

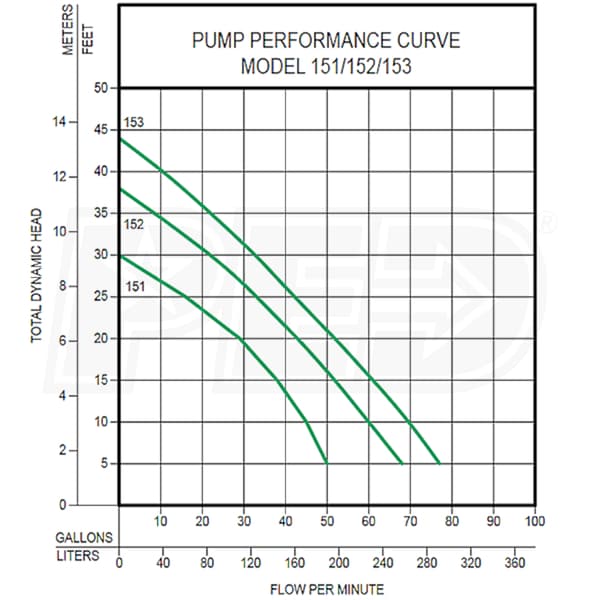

GPH @ 0 feet
4140
GPH @ 5 feet
4140
GPH @ 10 feet
3660
GPH @ 15 feet
3180
GPH @ 20 feet
2640
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Max Head
38 Feet
Submersible
Yes
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
37 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
UPC
053514118655
