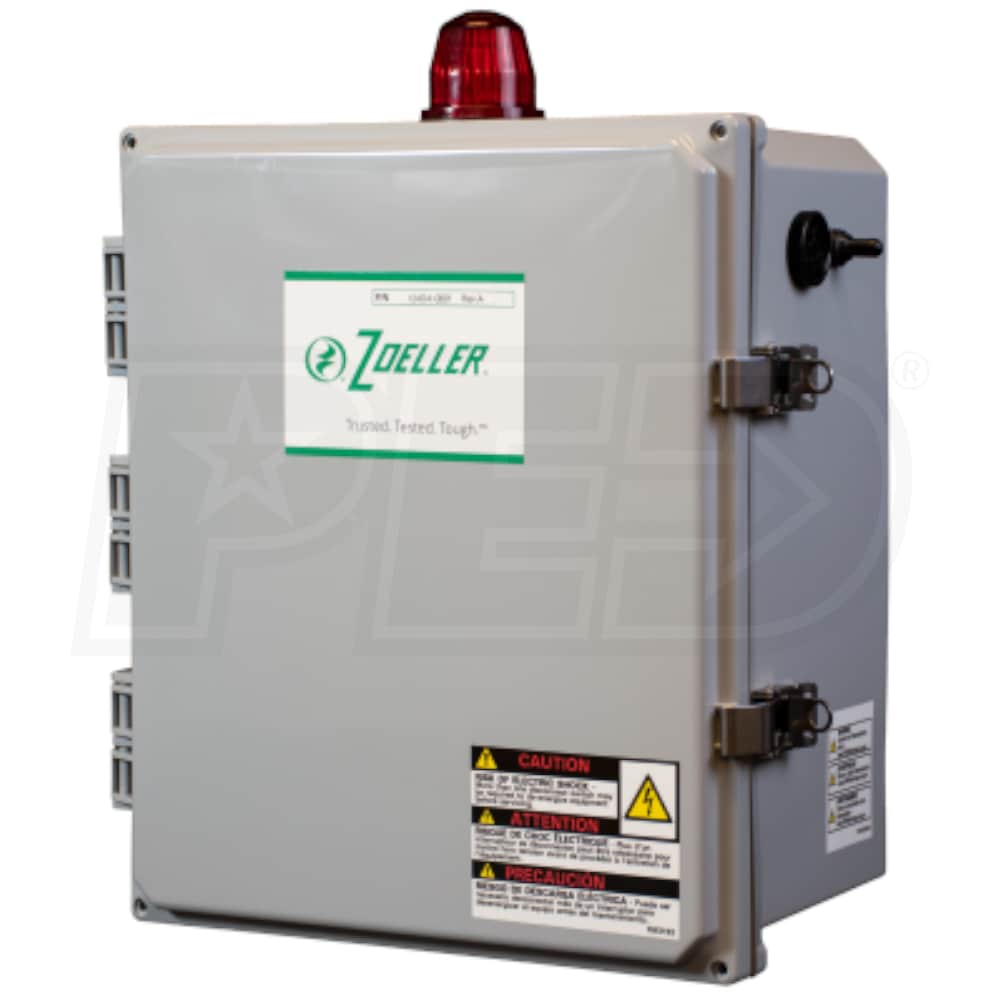

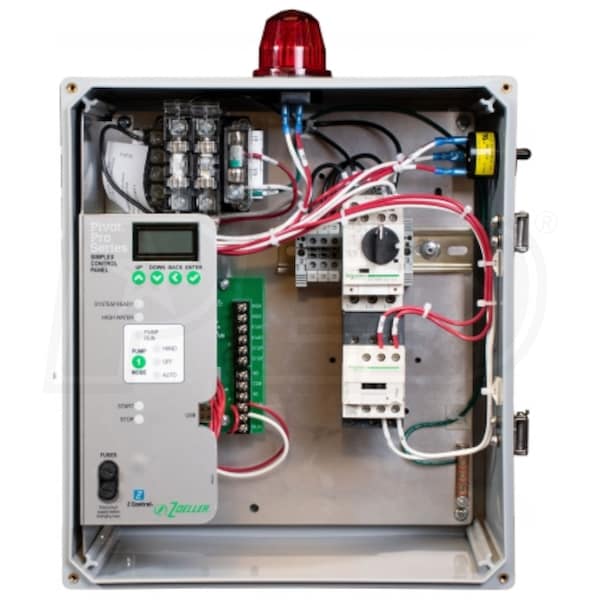

Zoeller 114C4-0001- Pivot Pro Simplex Control Panel w/ Alarm 200/230/460V 3PH (2.5-4A) Indoor/Outdoor NEMA 4X Enclosure
Model:
114C4-0001
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- Zoeller Pivot Pro Simplex Control Panel (114C4-0001)
- For a single pump in residential & commercial applications
- Three-Phase, 200 / 230 / 460V (2.5-4A Max)
- ***Requires 3-Variable Level Float Switches (Not Included)***
- Z Control® Enabled (Requires "Wi-Fi Gateway 90002-0001" - Not Included)
- Free access to the Z Control® Cloud
- Allows remote access to view equipment status and adjust settings
- Configure alert settings for nearly instant email, text, and push notifications
- LCD Screen
- Allows for easy access to status, counters, and settings
- NEMA 4X Watertight Enclosure (14" x 12" x 6")
- Allows for indoor and outdoor installations; -40°F - 140°F
- Lockable latch for added security
- RED / AMBER / GREEN LEDs
- For switch indicators, Pump Run, High Water, System Ready & HOA
- 360° Red Alarm Beacon
- Provides a visual alert when a high water situation occurs
- High Water Alarm
- 95 dBA Audible alarm so you can also hear when an event occurs
- User-Friendly Controls
- Hand/Off/Auto Toggle switch; Alarm Test/Silence switch
- Adjustable Settings
- Float switch logic choices
- Compatible w/ additional alarms and indicators
- See spec sheet & install instructions for more details
- Auxiliary Dry Contact & USB Port
- Allows for connection for remote alarm devices/dialers etc.
- 120V Control Circuit & Alarm
- Multi-tap 200/230/460V transformer
- Max Alarm & Control Circuit Power Consumption: 32W
- Includes (4) Enclosure Mounting Brackets
- 5-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
114C4-0001
General Information
Product Category
Water Pump Accessories
Motor
Voltage
208/230/460V 3-Phase
Running Amps
2.5-4
Overview
Product Category
Water Pump Accessories
Consumer Warranty
5 Years
Commercial Warranty
5 Years
Dimensions
12"x10"x6"
UPC
53514441791
