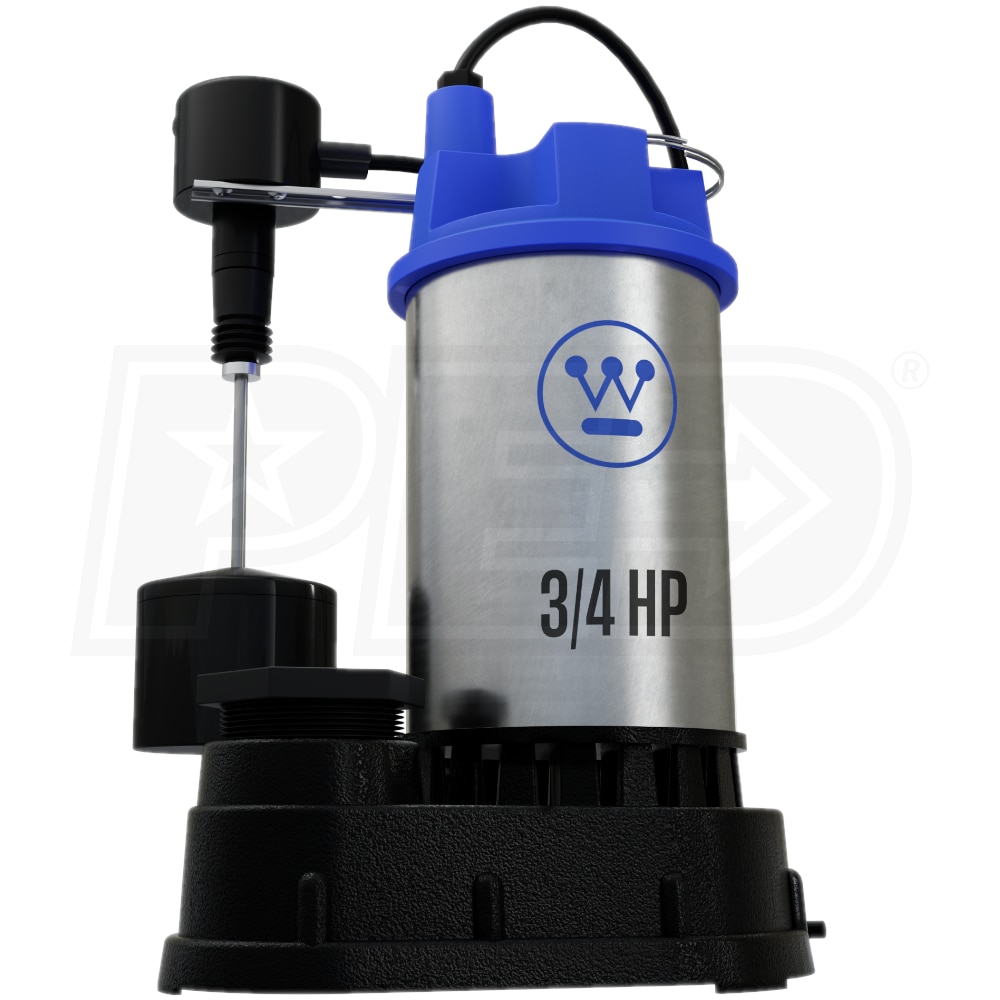

Westinghouse 3/4 HP Stainless Steel / Cast Iron Submersible Sump Pump w/ PB Vertical Float Switch
Model:
WH75SS
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
6000 Gallons
Switch Type
Vertical
- Westinghouse 3/4 HP Submersible Automatic Sump Pump
- Provides reliable performance and quiet operation
- Cast Iron Base w/ Stainless Steel Pump Housing
- Resists corrosion, impact, stress and heat
- 3/4 HP Heavy Duty Permanent Split Capacitor (PSC) (120V)
- Energy efficient design, only 10A for lower running costs
- Thermally Protected, Continuous Duty Rated
- Oil-filled motor for maximum heat dissipation
- Top Suction Design
- Helps filter debris to prevent clogs
- Piggyback Vertical Float Switch
- For reliable automatic operation or manual operation during an emergency
- Designed for sump pits 10" diameter or larger
- Polycarbonate Impeller
- Handles debris up to 1/4"
- Lubricated Ball Bearings and Shaft Seal
- Helps extend pump life
- 1-1/2" NPT & 1-1/4" NPT Discharge
- Makes it easy to connect to existing plumbing
- 10' Power Cord w/ 3-Prong Grounded Plug
- UL Listed for added safety
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
WH75SS
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
120 Volt
Running Amps
10
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Impeller Material
Plastic
Solids Handling Size
.25 inch
Handles Solids
Yes
Float Type
Vertical Float

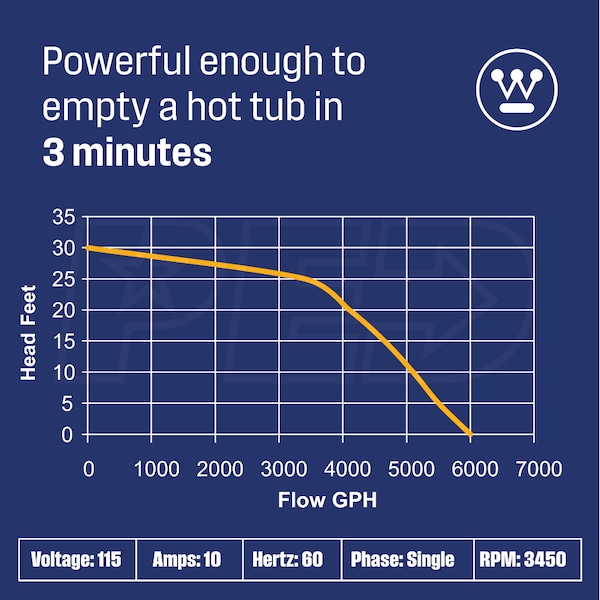

GPH @ 0 feet
6000
GPH @ 5 feet
5500
GPH @ 10 feet
5100
GPH @ 15 feet
4650
GPH @ 20 feet
4100
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Check Valve Included
No
Float On
9.2
Float Off
4.9
Manual Override
Yes
Max Head
30 Feet
Submersible
Yes
Engine
Horsepower
.75 HP
Overview
Product Category
Sump Pump
Weight
23 Pounds
Consumer Warranty
1 Year
Product Length
8.33 Inches
Product Width
8.2 Inches
Product Height
13 Inches
UPC
860010653616
