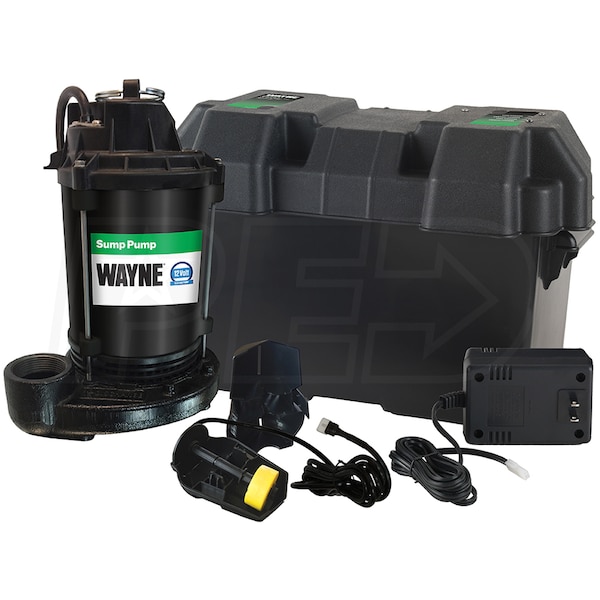

Wayne - ESP25n - Battery Backup Sump Pump (1500 GPH @ 10')

Name: Wayne - ESP25n - Battery Backup Sump Pump (1500 GPH @ 10')
Brand: Wayne
SKU: 1171
Price: 339.99 USD
Availability: InStock
Rating: 4.35 (40 reviews)

Model:

ESP25N

Write A Review

$339.99

Free Shipping

In-Stock

Ships Friday, Nov 22nd

Shipping to60601

Wayne - ESP25n - Battery Backup Sump Pump (1500 GPH @ 10')

Model: ESP25N

$339.99

Accessories

Features

Specifications

Reviews

Product Q&A

How-To Articles

Manuals

Expert Recommended Accessories Selected by Jim, our Expert

Required Accessories 9

These accessories are required to properly setup/install this product.

Optional Accessories 10

Features

Style

Back-up

GPH

2880 Gallons

Switch Type

Vertical

Wayne ESP25 Battery Backup Sump Pump
Assembled in the US with foreign and domestic parts
Upgraded epoxy steel body and cast-iron base. (ESP25) w/ 6' Cord 12V Backup Sump Pump
Helps extend pump life in harsh sump basin conditions
Pumps 2880 gallons-per-hour @ 0' lift (or 1500 GPH @ 10')
Adjustable Reed Float Switch
Easily mounts at high water level in your sump basin
Automatically starts when your existing sump pump fails
Audible Alarm For Local Notification
Alarms sounds when high water even occurs and pump is running
12V Battery Charger w/ LED Indicator Light
Smart charging technology for maximum battery efficiency
Provides real-time battery charge status
Includes Thermoplastic Battery Box
Corrosion-resistant design provides safer operation
Compatible with Residential Sump Applications
Requires minimal pluming modifications for an easier installation
Requires (1) 12V Deep Cycle Battery (SOLD SEPARATELY)
Recommended for use with the WAYNE WSB1275, 75 AMP hr maintenance free battery
2-Year Limited Warranty
For Indoor Use Only

California residents see

Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.

For more information go to: www.p65Warnings.ca.gov

Specifications

ESP25N

General Information

Product Category

Sump Pump

Base

Base Material

Cast Iron

Min Sump Basin Size

14 Inch

Motor

Voltage

12 Volt DC

Battery Included

Power Cord Length

8 Feet

Pump

Housing Material

Steel

Impeller Material

Plastic

Handles Solids

Float Type

Vertical Float

GPH @ 0 feet

2880

GPH @ 5 feet

2160

GPH @ 10 feet

1500

GPH @ 15 feet

840

Discharge Port Size

1-1/2 Inch

Check Valve Included

Manual Override

Max Head

20 Feet

Submersible

Yes

Overview

Product Category

Sump Pump

Weight

20 Pounds

Consumer Warranty

2 Years

Product Length

17 Inches

Product Width

10 Inches

Product Height

14 Inches

UPC

040066207524

Additional Model Numbers

ESP25, ESP25N

Accessories

Alarm

Yes

Wi-Fi enabled

Reviews

(40)

Wayne ESP25N Reviews & Ratings

Product Q&A

(6)

Product Questions Answered by Jim, the Sump Pump Expert

Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.

Larry

from Illinois

January 22, 2014

Jim, I've seen some reviews on Wayne sump pumps that indicate they are timer operated instead of float switch operated. Is this true and what are the advantages and disadvantages of either system?

Joe

from Delaware

July 15, 2012

Answer

The Wayne primary pumps operate using a vertical float switch that will activate the pump and shut it off at a set level. There are no other options that I am aware of. The battery backup systems will also use a vertical float switch but do incorporate a timing system into their operation as a safety and this may be the source of your confusion. The control box has a time delay which keeps the pump from repeated, short cycles when it shuts off. This time delay feature will allow the pump to run 20-25 seconds after the switch reaches the off position.

Was this answer helpful?

Yes

Hi Jim, I have an off-grid solar panel system that constantly charges a 12V deep cycle battery bank. The battery bank is capable of storing over 200 amp hours, well above the Wayne 75 amp battery. My question is: if I were to connect this backup pump to the current solar battery bank and leave it unplugged from the wall (solar is capable of maintaining the load and keeping the batteries charged), would the controller run properly without ever being plugged into the wall? I don't want a constant alarm eating my batteries and the pump itself would be used only in emergencies when typical grid power is out. Is there a way to shut off the need for grid power? I prefer to keep the solar array seperate from the grid because it also supplies electricity for our sensitive elecronics, and it's more reliable in the event that I'm not home that the solar panels can theoretically power the pump endlessly. What are your thoughts? Thanks, Joe

Joe J.

from Michigan

March 14, 2012

Answer

Per the engineers at Wayne:

In theory this should work. In fact, one of the features that we built into the new ESP-25 is the elimination of the constant annoying alarm for lack of AC while installing the system. That alarm now only sounds if the power has established an AC connection and then it is removed either physically or by power outage. So if it is never hooked up to AC this alarm will be forever disabled. The rest of the board will not see the difference from a regular battery. The solar cells should work just fine assuming they are regulated and feeding a battery bank. The normal alarms when the pump kicks on and if the available voltage drops below the required threshold cannot be silenced. Just to be safe, if this type of application is going to be more than one or two units, I would try it out before committing to large quantities. There could be something in the circuitry I am overlooking that needs to see that AC signal, but my initial read is that the AC is only used for charging the battery. If you have any additional questions, don’t hesitate to ask.
p.s. This will only work on the new digital version of the ESP-25, not an old version or the ESP-15.

Was this answer helpful?

Yes

for the esp25, how large Ah battery is needed to run pump for 1 hour continuous with 10 ft of head?

Dave

from Wisconsin

April 17, 2011

Answer

The system is designed to operate most efficiently with sealed lead acid (SLA) batteries. Deep cycle marine batteries or automotive style batteries can also be used.
Sealed lead acid batteries cost slightly more, but they can last longer. Among
the manufacturers of sealed lead acid batteries are Hawker, Panasonic,
PowerSonic, Yuasa and Eagle Picher.
The oversize battery case (included) will accommodate a 12-volt SLA battery or
a 12-volt deep cycle marine battery (up to a 27-frame size).

The Wayne 75 amp battery model# WSB1275 will operate this pump for up to 8 hours of continuous operation.

Was this answer helpful?

Yes

Do I need to leave my battery backup system charging at all times?

Patrick Mcclone

from Wisconsin

January 03, 2011
