Pro-Series PHCC-2400 Battery Back Up Sump Pump (2400 GPH at 10')
Model:
PHCC-2400
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Back-up
GPH
3900 Gallons
Switch Type
Dual Vertical Sensor

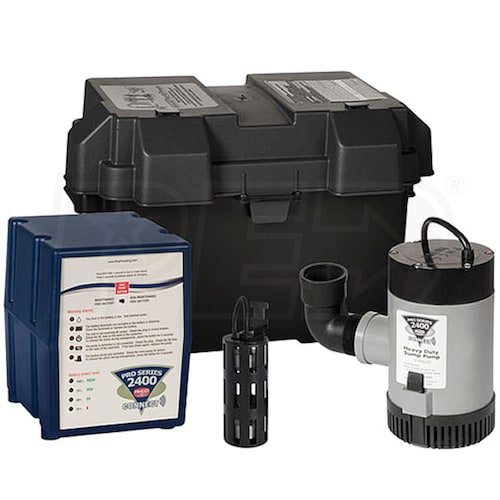

- Pro-Series PHCC-2400 Battery Back Up Sump Pump
- BATTERY & BATTERY ACID IS SOLD SEPARATELY
- Automatically starts when your existing sump pump fails
- Provides added sump pump output with or withour power
- Exclusive Monitoring System w/ Weekly Self-Test

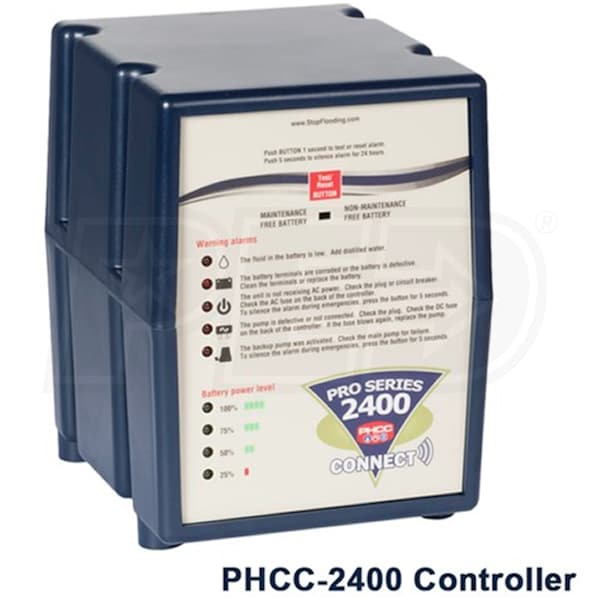

- Computer-controller monitors power conditions and battery level
- Sounds alarm & flashes during failure or required maintenance
- Indicator lights for remaining battery life (100%, 75%, 50%, 25%)
- Backup Sump Pump
- Empties the sump pit in seconds after a malfunction or outage
- Pumps 3900 gallons-per-hour @ 0' lift (or 2400 GPH @ 10' lift)
- Runs on 120-volt AC power when power is on
- Switches to 12-volt DC battery power when AC power fails
- 13-Amp Battery Charger
- Has the ability to charge standard & maintenance free batteries
- Quickly recharges battery when power is restored
- Shuts off completely to prolong the life of the battery

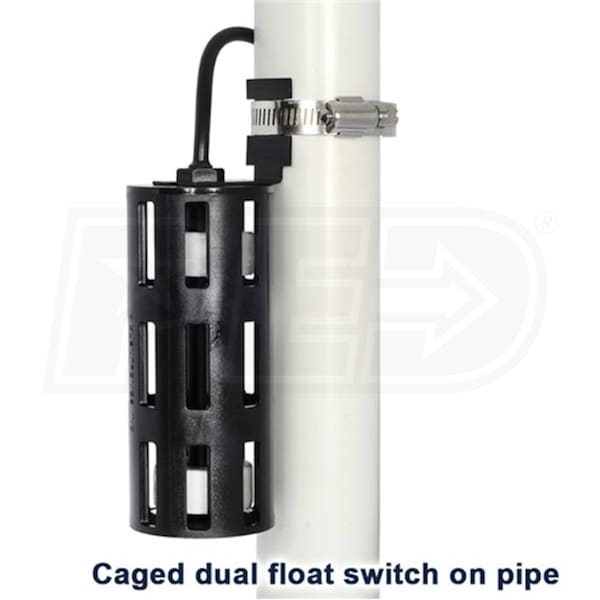

- Pro Series Dual Float Switch w/ Protective Cage
- Added redundancy for protection and piece of mind
- Only needs to move 1/4" to activate the pump
- Flow/Amp. Draw @ 10 ft Head 2,400 GPH / 16 Amps DC
Specifications
PHCC-2400
General Information
Product Category
Sump Pump
Motor
Voltage
12 Volt DC/120 Volt AC
Battery Included
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Handles Solids
No
Float Type
Dual Vertical Sensor
GPH @ 0 feet
3900
GPH @ 10 feet
2400
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
No
Battery Recharger
13 Amps
Overview
Product Category
Sump Pump
Weight
23 Pounds
Made in USA
No
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
8.5 Inches
UPC
717301121784
Accessories
Alarm
Yes
Wi-Fi enabled
No
Reviews
(27)
Pro Series PHCC-2400 Reviews & Ratings
Product Q&A
(3)
Product Questions
Answered by Jim, the Sump Pump Expert
Can I use a sealed battery on this unit?
Skye
from New Hampshire
November 14, 2020
Is this sump pump suitable as a battery back-up sump that needs a 12ft lift?
John F.
from Michigan
May 03, 2017
Looking down the road, if and when the pump fails / wears out, would I be able to replace it or do I need to replace the entire unit? Hence, would I be able to use the power inverter or controller with other pumps? Thanks.
Larry
from Illinois
January 22, 2014
