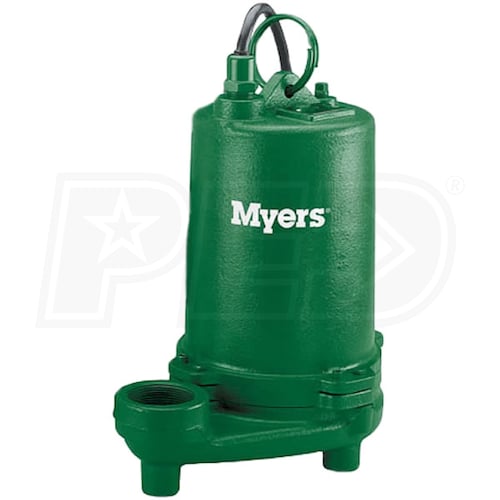

Myers S50HTPC1 - 1/2 HP Cast Iron High Temp Effluent Pump (Control Box Req.)

Model:

S50HTPC1

Write A Review
$1,470.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Myers S50HTPC1 - 1/2 HP Cast Iron High Temp Effluent Pump (Control Box Req.)
Myers S50HTPC1 - 1/2 HP Cast Iron High Temp Effluent Pump (Control Box Req.)
Model: S50HTPC1
$1,470.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

6000 Gallons

Switch Type

None

  • Myers S50HT Series High Temperature Automatic Effluent Pump
  • Can withstand liquid temperatures up to 200°F
  • Cast Iron Housing, Volute Case & Impeller
  • Resists the most extreme corrosive environments
  • PW217-280 (Sold Separately) Control Panel Req. For Auto Operation
  • Wide angle, High-Temperature tether float connects to panel
  • Oil-Filled 1/2 HP PSC Motor (12-Amps)
  • Provides continuous bearing lubrication & max heat dissipation
  • Built-In Heat Sensor Overload Protection
  • Prevents overload damage & automatically resets when motor cools
  • Semi-Open Impeller Design
  • Allows this pump to pass solids up to 3/4" & prevents clogging
  • Durable Silicon/Carbide Shaft Seal
  • Fully lubricated for longer service
  • Stainless Steel Motor Shaft, Impeller Lock Nut & Fasteners
  • Allows easy disassembly after extended service
  • 2" NPT High Flow Discharge
  • Allows for an output of up to 100 GPM
  • Heavy-Duty Lift-Out Ring For Easy Installation
  • 1-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

S50HTPC1
specs product image PID-15236
General Information
Product Category
Sump Pump
Motor
Voltage
120 Volt
Running Amps
12
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.75 inch
Float Type
No Switch
GPH @ 0 feet
6000
GPH @ 5 feet
6000
GPH @ 10 feet
6000
GPH @ 15 feet
5280
GPH @ 20 feet
4200
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
No
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
60 Pounds
Consumer Warranty
1 Year
Product Length
11.85 Inches
Product Width
8.62 Inches
Product Height
15.75 Inches
UPC
022315316867
