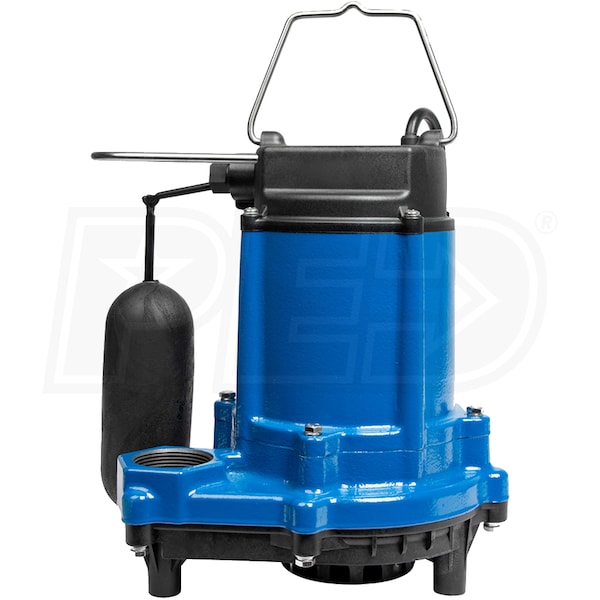

Little Giant Select Series LG-SC33SA - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model:

LG-SC33SA

Write A Review
Coming Soon
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant Select Series LG-SC33SA - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Little Giant Select Series LG-SC33SA - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: LG-SC33SA
Coming Soon
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3420 Gallons

Switch Type

Vertical

  • Little Giant Select Series Automatic Submersible Sump Pump
  • For clear water applications in sump basins and lift stations
  • Epoxy Coated Cast Iron Pump Housing
  • Helps minimize corrosion to help extend pump life
  • Oil-Filled, 1/3 HP Permanent Split Capacitor Motor (PSC)
  • Thermally-protected, with automatic reset for extended motor life
  • Snap-Action, Vertical Float Switch
  • Allows this pump to provide reliable, automatic operation
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • Professional Grade Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 300 Stainless Steel Hardware
  • Prevents rust and corrosion that's common with sheet metal parts
  • 1-1/2" FNPT Discharge
  • Easily connect to your current discharge without any changes
  • 10-Foot Power Cord
  • Ideal for use in residential applications
  • 2-Year Limited Warranty

Specifications

LG-SC33SA
specs product image PID-82400
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Total Head Lift
28 Feet
Float Type
Vertical Float
GPH @ 0 feet
3420
GPH @ 5 feet
3200
GPH @ 10 feet
3000
GPH @ 15 feet
2500
GPH @ 20 feet
2200
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
8-11
Float Off
2-5
Manual Override
No
Submersible
Yes
Engine
Horsepower
.33 HP
General Information
UPC
010121001039
Additional Model Numbers

14942671, LG-SC33SA
