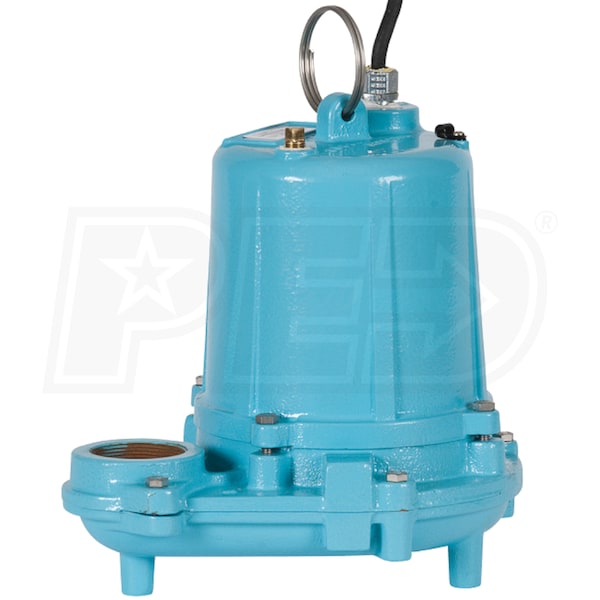

Little Giant WS100HM-34 - 1 HP Cast Iron High Head Effluent Pump w/ 30' Cord (Non-Automatic) (460V 3-Phase)
Model:
620206
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
9000 Gallons
Switch Type
None
- ***NON-AUTOMATIC - 3-Phase - Requires Control Panel***
- WS100HM-34 - 1 HP Cast Iron Effluent Pump (460V 3-Phase)
- Continuous duty rated for wastewater removal, dewatering or transfer
- Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1 HP Split-Phase Motor w/ Thermal Overload Protection
- High-torque design w/ low amp draw (3.1-Amps full load)
- Epoxy Coated Cast Iron Volute w/ Vortex Style Cast Iron Impeller
- Non-clogging design passes up to 3/4" solids
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection in harsh wastewater conditions
- 2" FNPT Discharge
- Easily connect to your current discharge without any changes
- Upper & Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- Stainless Steel Screws, Bolts & Handle
- Designed to prevent rust and corrosion
- 30-Foot SJOW Power Cord
- 90' Max Shutoff Head
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
620206
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
460 Volt 3-Phase
Running Amps
3.1
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Starting Amps
16.7
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
9000
GPH @ 5 feet
9000
GPH @ 10 feet
9000
GPH @ 15 feet
8700
GPH @ 20 feet
8400
Discharge Port Size
2 Inch
Manual Override
Yes
Max Head
90 Feet
Submersible
Yes
Engine
Horsepower
1 HP
Overview
Product Category
Sump Pump
Weight
62 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
12.25 Inches
Product Width
9.38 Inches
Product Height
13.75 Inches
UPC
010121121454
