Little Giant 18S-CIM - 1-1/2 HP Cast Iron Sewage Pump (3") w/ 20' Cord (Non-Automatic) (200-208V 3-Phase)

Model:

520302

Write A Review
$1,315.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601

Little Giant 18S-CIM - 1-1/2 HP Cast Iron Sewage Pump (3
Little Giant 18S-CIM - 1-1/2 HP Cast Iron Sewage Pump (3") w/ 20' Cord (Non-Automatic) (200-208V 3-Phase)
Model: 520302
$1,315.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

9600 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Little Giant 18S-CIM - 1-1/2 HP Sewage Pump (208V 3-Phase)
  • For use in residential, commercial, industrial and agricultural applications
  • Ideal for light to medium transfer demands
  • Epoxy Powder Coated Cast Iron Construction
  • Provides excellent corrosion-resistance & durability
  • Heavy-Duty 1-1/2 HP Three-Phase Motor
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • 3" FNPT Threaded Discharge
  • Easily connect to your existing discharge without any changes
  • Epoxy Coated Cast Iron Volute w/ Brass Impeller
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection in harsh wastewater conditions
  • 420 Stainless Steel Shaft w/ Upper/Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20' STW Power Cord
  • 64' Max Shutoff Head
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

520302
specs product image PID-153037
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
200-208V 3-Phase
Running Amps
13.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Brass
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
No Switch

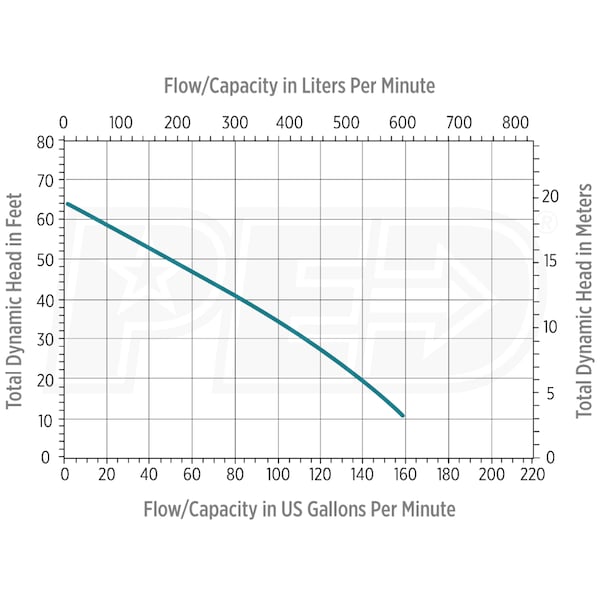

GPH @ 0 feet
9600
GPH @ 5 feet
9600
GPH @ 10 feet
9600
GPH @ 20 feet
8220
Discharge Port Size
3 Inch
Check Valve Included
No
Max Head
64 Feet
Engine
Continuous Operation
Yes
Horsepower
1.5 HP
Overview
Product Category
Sump Pump
Weight
94 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
13 Inches
Product Width
8.4 Inches
Product Height
18.4 Inches
UPC
010121114319
