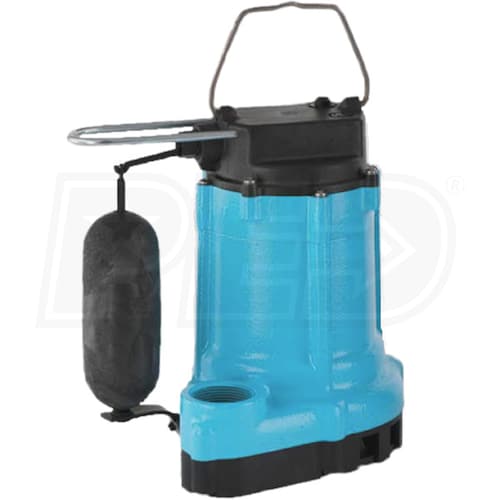

Little Giant 10ECH-CIA-SFS - 1/2 HP Thermoplastic / Cast Iron Effluent Pump w/ Vertical Float Switch (30' Cord)
Model:
511624
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
3600 Gallons
Switch Type
Vertical
- 10ECH-CIA-SFS - Designed For High Head Applications
- Capable of delivering heads up to 60-feet
- Automatic Submersible Cast Iron Sump Pump
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/2 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (9-Amps full load)
- Cooler running motor which extends the life of the pump
- Integral Snap-Action Vertical Float Switch
- Double-seal design minimizes switch corrosion
- Turns On at 8-11" and turns Off at 3"-6"
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 3/4" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Designed to handle liquids up to 140F
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 30-Foot Power Cord
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
511624
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
3/4 inch
Handles Solids
Yes
Maximum PSI
15.6
Total Head Lift
60 Feet
Float Type
Vertical Float

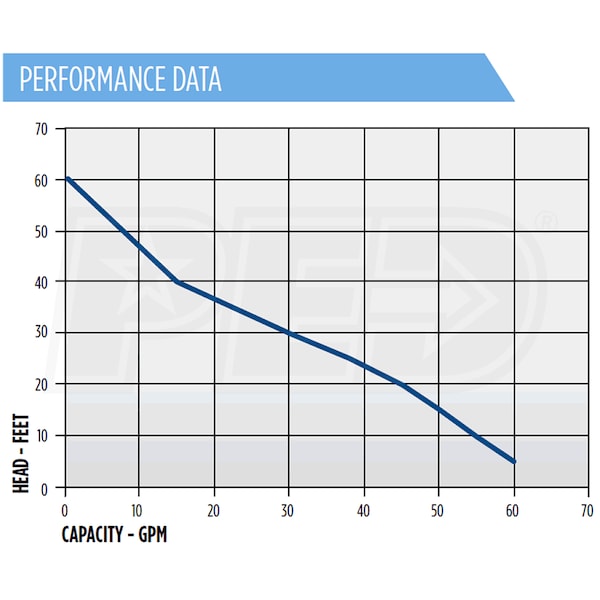

GPH @ 0 feet
3600
GPH @ 5 feet
3600
GPH @ 10 feet
3300
GPH @ 20 feet
2700
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
8-11
Float Off
3-6
Manual Override
No
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
39 Pounds
Consumer Warranty
2 Years
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
11.31 Inches
UPC
010121003088
