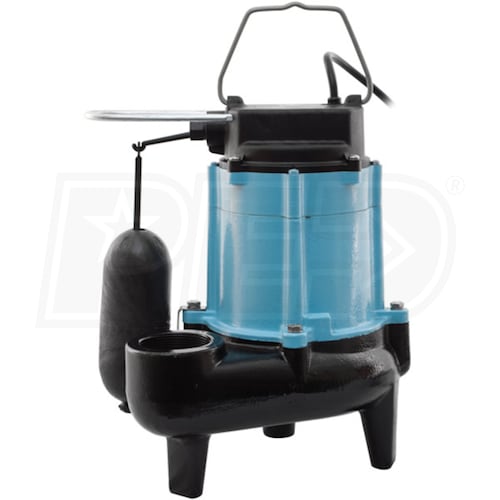

Little Giant 10SC-CIA-SFS - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float

Model:

511431

Write A Review
$414.99
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601

Little Giant 10SC-CIA-SFS - 1/2 HP Cast Iron Sewage Pump (2
Little Giant 10SC-CIA-SFS - 1/2 HP Cast Iron Sewage Pump (2") w/ Vertical Float
Model: 511431
$414.99
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

7200 Gallons

Switch Type

Vertical

  • Continuous Duty Rated Automatic Submersible Sewage Pump
  • Upper sintered sleeve and lower ball bearings
  • Designed for the tough demanding tasks for wastewater removal
  • Non-clog thermoplastic Elastomer impeller
  • Epoxy Coated Cast Iron & Thermoplastic Housing w/ 2" Discharge
  • Nitrile with carbon and ceramic faces
  • Minimizes rust & corrosion to extend overall pump life
  • Integral float switch: On levels: 9" -12" Off levels: 3" - 6"
  • Handles 2" solids
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Epoxy coated cast iron / theromplastic cover
  • Energy saving design w/ low amp draw (11-Amps full load)
  • Epoxy coated cast iron housing and volute ( 2" FNPT ) discharge
  • Cooler running motor which extends the life of the pump
  • Designed for continuous duty
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • 1 / 2 HP PSC motor with overload protection
  • Epoxy Coated Cast Iron Volute w/ Vortex Style Nylon Impeller
  • Our SKU number(s): Little Giant 511346
  • The manufacturer model number(s): Little Giant 511346
  • Non-clogging design passes up to 2" spherical solids
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection is harsh wastewater conditions
  • Upper Sintered Sleeve Bearings & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Stainless Steel Screws, Bolts & Handle
  • Never worry about sheet metal parts that rust or corrode
  • 20-Foot SJTW Power Cord
  • 25' Max Shutoff Head
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

511431
specs product image PID-109623
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
11
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
2 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
7200
GPH @ 5 feet
7200
GPH @ 10 feet
6000
GPH @ 15 feet
4800
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
11-14
Float Off
6-9
Manual Override
No
Max Head
25 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
37.5 Pounds
Consumer Warranty
2 Years
Product Length
10.7 Inches
Product Width
8.6 Inches
Product Height
14.8 Inches
UPC
010121002883
