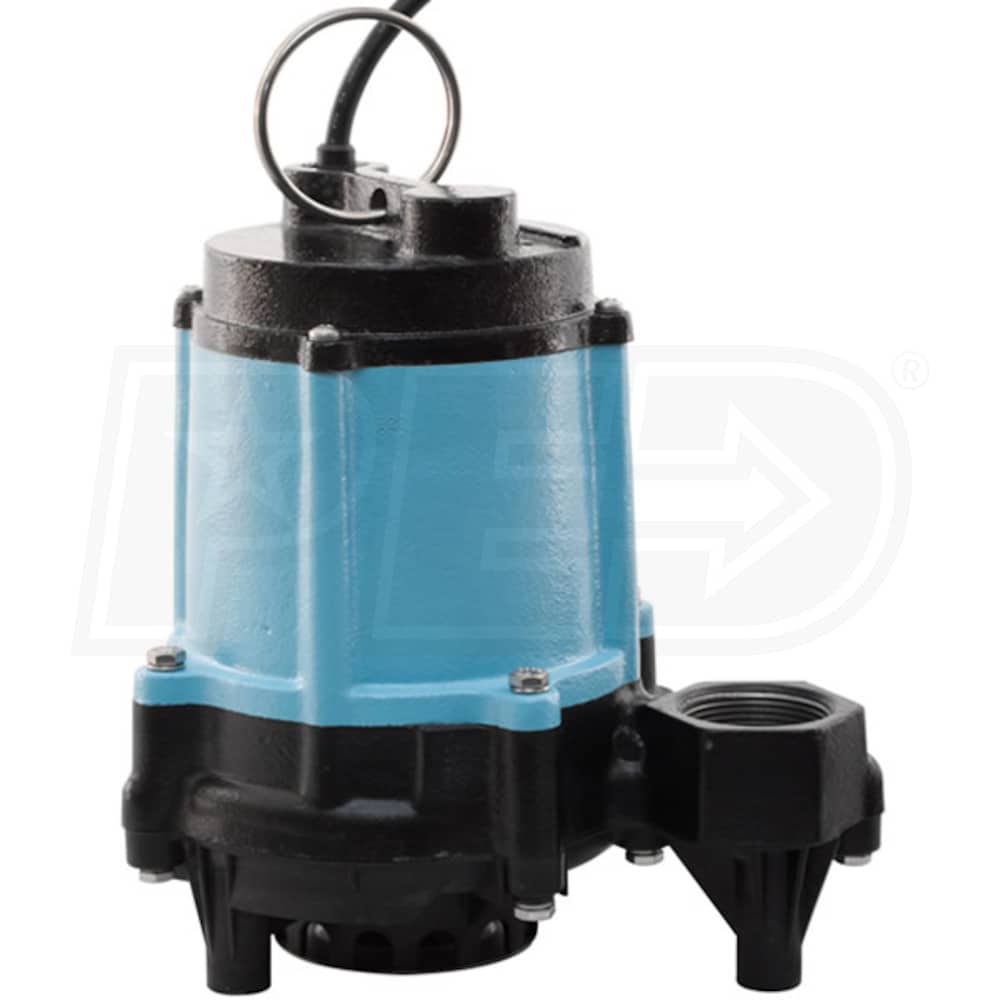

Little Giant 10EN-CIM - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)

Model:

511310

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant 10EN-CIM - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)
Little Giant 10EN-CIM - 1/2 HP Cast Iron Submersible Sump Pump (Non-Automatic)
Model: 511310
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4020 Gallons

Switch Type

None

  • **NON-AUTOMATIC - Requires Float Switch For Automatic Operation**
  • Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/2 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw (8-Amps full load)
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solds
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 10-Foot Power Cord
  • 30' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

511310
specs product image PID-10305
Motor
Voltage
120 Volt
Running Amps
8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.5 inch
Float Type
No Switch
GPH @ 0 feet
4020
GPH @ 5 feet
4020
GPH @ 10 feet
3660
GPH @ 15 feet
3000
GPH @ 20 feet
2400
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
Yes
Engine
Horsepower
.5 HP
Overview
Weight
28 Pounds
Consumer Warranty
2 Years
Product Length
8.75 Inches
Product Width
8.5 Inches
Product Height
9.87 Inches
UPC
010121138988
