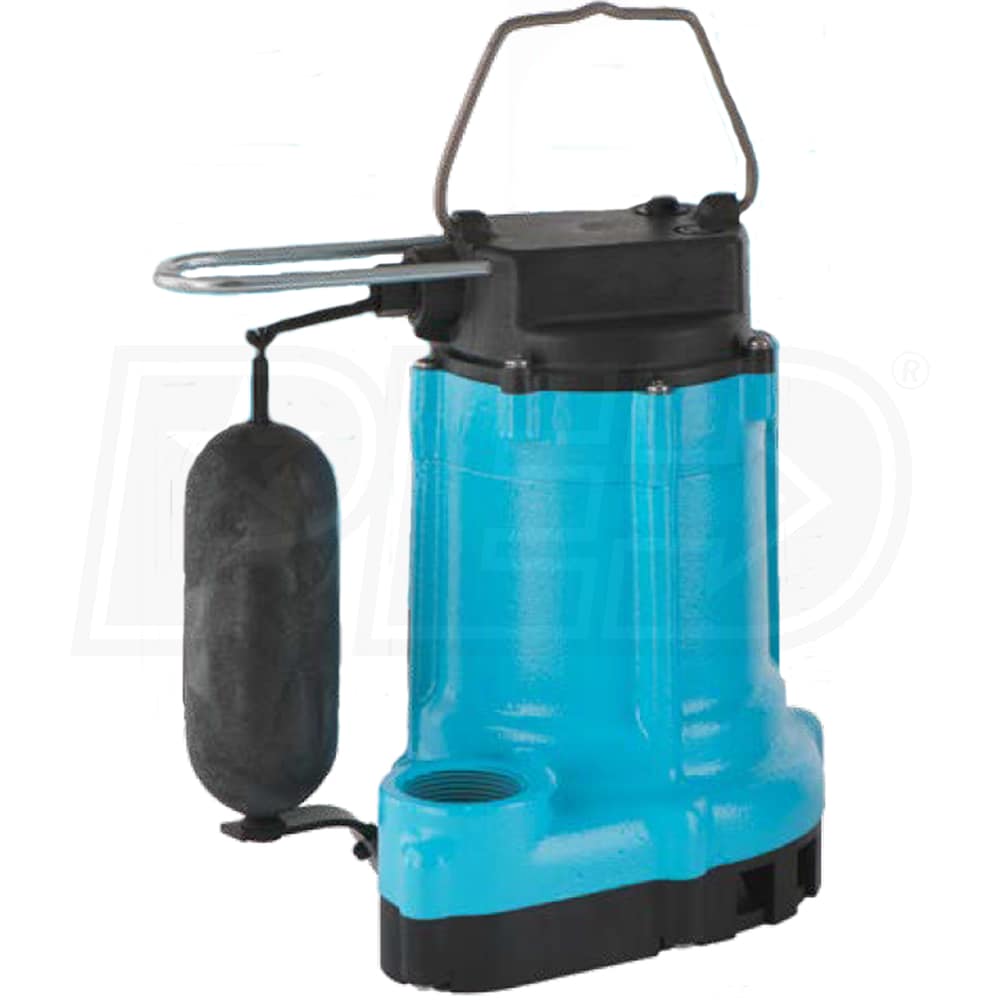

Little Giant 9EC-CIA-SFS 4/10-HP Thermoplastic / Cast Iron Submersible Effluent Pump w/ Vertical Float Switch
Model:
509804
+
Share This Product
Features
Style
Effluent
GPH
4200 Gallons
Switch Type
Vertical
- Upper sintered sleeve bearings; lower ball bearings
- Continuous Duty Rated Automatic Submersible Effluent Pump
- Polypropylene base
- Continuous duty rated for sump & effluent applications
- Nitrile with carbon and ceramic faces
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Handles 3 / 4" solids
- Minimizes rust & corrosion to extend overall pump life
- Epoxy coated cast iron housing and cover
- 4/10 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw (7.5-Amps full load)
- Designed for continuous duty
- 4 / 10 HP PSC with overload protection
- Cooler running motor which extends the life of the pump
- Our SKU number(s): Little Giant 509209
- Integral Snap-Action Vertical Float Switch
- Double-seal design minimizes switch corrosion
- The manufacturer model number(s): Little Giant 509209
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 3/4" solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 30-Foot Power Cord
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
509804
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
7
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4200
GPH @ 5 feet
4200
GPH @ 10 feet
3900
GPH @ 20 feet
3000
Discharge Port Size
1-1/2 Inch
Float On
7-10
Float Off
2-5
Max Head
40 Feet
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Weight
27.5 Pounds
Product Length
10.7 Inches
Product Width
8.4 Inches
Product Height
11.8 Inches
UPC
010121003170
