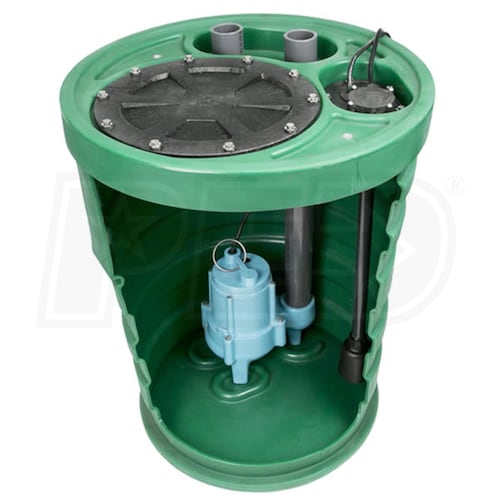

Little Giant 9SP2V2D - Pit Plus® Sr. 4/10 HP Premium Simplex Sewage System w/ ECM Switch (2" Vent, 2" Discharge)

Model:

509685

Write A Review
$599.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 16-20 Weeks

Little Giant 9SP2V2D - Pit Plus® Sr. 4/10 HP Premium Simplex Sewage System w/ ECM Switch (2
Little Giant 9SP2V2D - Pit Plus® Sr. 4/10 HP Premium Simplex Sewage System w/ ECM Switch (2" Vent, 2" Discharge)
Model: 509685
$599.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Sewage Pump

GPH

6600 Gallons

Switch Type

Electronic

  • Pit+Plus® Sr. Premium Simplex Systems
  • Most advanced and contractor-friendly sewage basin in the industry
  • Separate Pump And Switch Access Cover
  • Access the pump and/or switch independently
  • No disruption to the plumbing connections
  • Saves time, money, and mess
  • ECM™ (External Control Module) Switch
  • Monitor liquid level for operation of a switch outside the basin to prevent failure
  • Easy Installation w/ All Materials Included
  • Molded inlet hub, torque stops, 360° molded handle,
  • Integrated anti-flotation collar, stainless steel fasteners
  • 4-Inch intake grommet
  • 24" x 30" Basin w/ Functional & Asthetic Finished Cover
  • 2" discharge, 2" vent recessed location
  • Independent recessed switch module and pump access cover
  • Switch cord grips and locators for directional control
  • Little Giant 9SN-CIM Cast Iron Sewage Pump
  • 4/10 HP - PSC motor with thermal overload protection
  • Check Valve Sold Separately
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

509685
specs product image PID-70701
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
8.5
Pump
Housing Material
Cast Iron
Solids Handling Size
2 inch
Handles Solids
Yes
Maximum PSI
8.7
Total Head Lift
20 Feet
Float Type
Electronic
GPH @ 0 feet
6600
GPH @ 5 feet
6600
GPH @ 10 feet
4200
GPH @ 15 feet
1800
Discharge Port Size
2 Inch
Check Valve Included
No
Float On
15
Float Off
8
Engine
Horsepower
.4 HP
Overview
Product Category
Sump Pump
Assembly Required
No
Consumer Warranty
2 Years
Product Length
24 Inches
Product Width
24 Inches
Product Height
32 Inches
UPC
010121147706
Accessories
Alarm
No
Wi-Fi enabled
No
