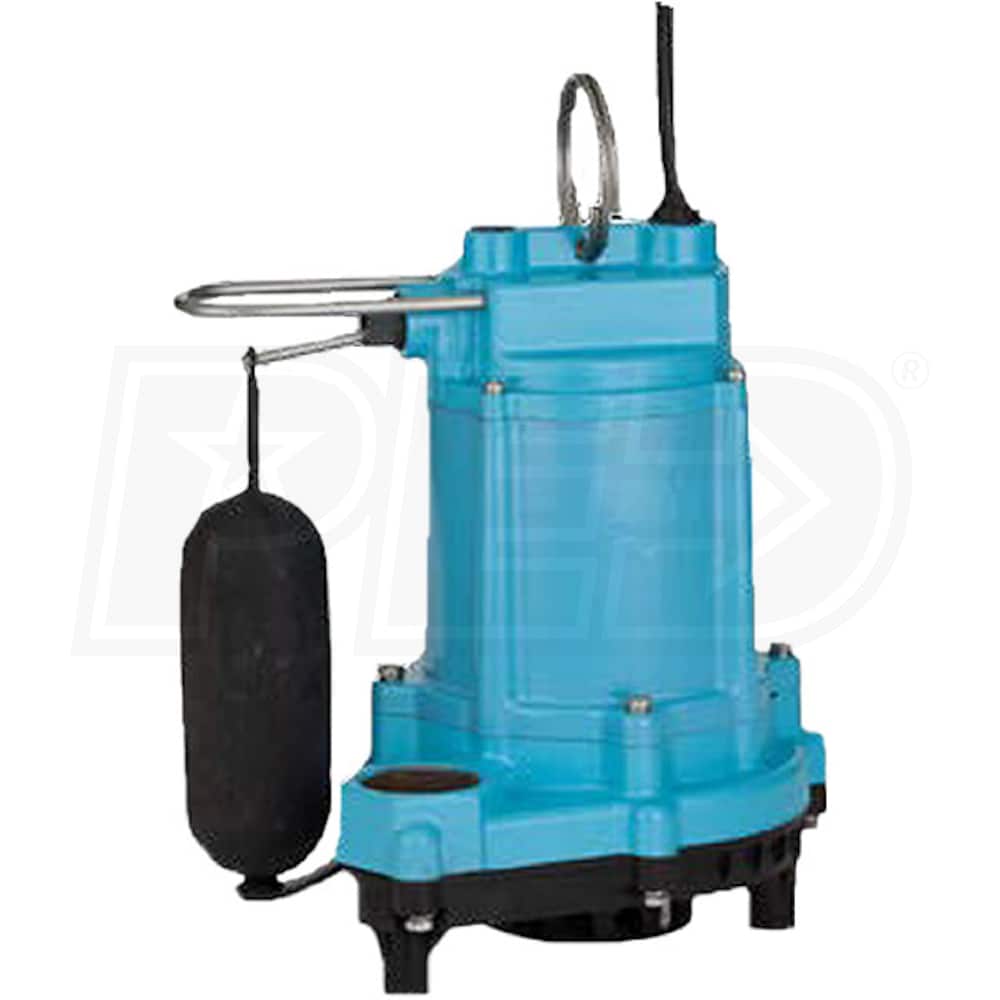

Little Giant 6EC-CIA-SFS - 1/3 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)

Model:

506804

Write A Review
$219.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601
Little Giant 6EC-CIA-SFS - 1/3 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)
Little Giant 6EC-CIA-SFS - 1/3 HP Polypropylene & Cast Iron Submersible Sump Pump w/ Vertical Float Switch (20' Cord)
Model: 506804
$219.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3180 Gallons

Switch Type

Vertical

  • Automatic Submersible Cast Iron Sump Pump
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506804
specs product image PID-62945
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Float Type
Vertical Float

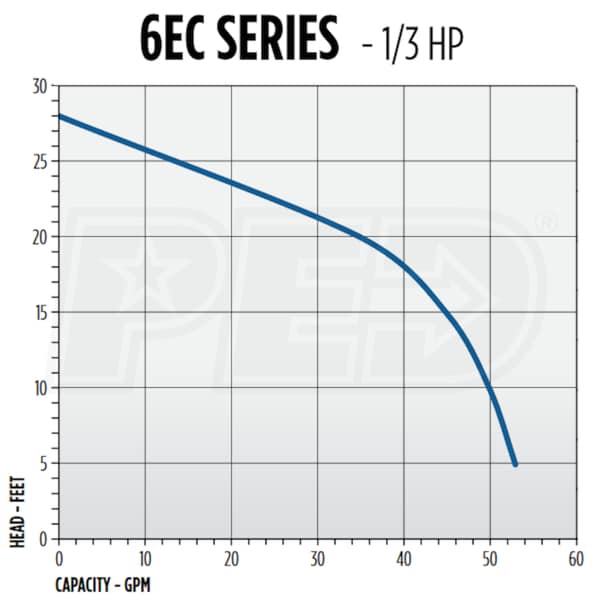

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
8-11 Inches
Float Off
2-5 Inches
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
29 Pounds
Consumer Warranty
2 Years
Product Length
10.66 Inches
Product Width
8.48 Inches
Product Height
11.28 Inches
UPC
010121149052
