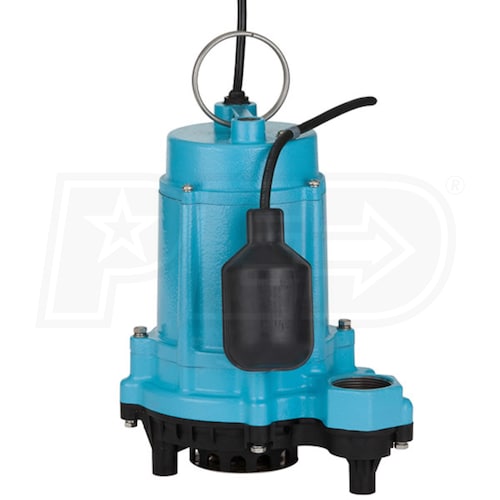

Little Giant 6EC-CIA-RF - 1/3 HP Submersible Sump Pump w/ Piggyback Tether Float Switch
Model:
506803
+
Share This Product
Recommended Accessories

Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
12
Model: LS-ALM-120V-US-RETAIL
$99.99
Only 2 In-Stock
Level Sense Pro - Sump Pump High Water Alarm, Wi-Fi Enabled, Temperature, Humidity, & Leak Detection
Model: LS-PRO-120V-WIFI
$199.99
Only 1 In-Stock
$20.25
In-Stock
$20.00
Only 1 In-Stock
$405.00
Factory-Direct
$442.00
Factory-Direct
Model: SSPC
$156.00
Only 5 In-Stock
Model: THP207M
$24.99
Only 4 In-Stock
Model: E2-2200
$59.99
In-Stock
Model: E-C18EWSF
$33.99
In-Stock
Model: 30-0041
$31.90
In-Stock
$18.00
In-Stock
Features
Style
Primary
GPH
3180 Gallons
Switch Type
Piggy-Back Tether
- Automatic Submersible Sump Pump
- Continuous duty rated for sump & light effluent applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- 1/3 HP PSC Motor w/ Thermal Overload Protection
- Energy saving design w/ low amp draw
- Cooler running motor which extends the life of the pump
- Piggyback Tether Float Switch
- Increase cycle time for optimal water removal
- Vortex Style Nylon Impeller
- Non-clogging design passes up to 1/2" spherical solids
- No Sheet Metal Parts To Rust Or Corrode
- Stainless steel intake plate, screws, bolts and handle
- Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
- Assures maximum protection for extended pump life
- Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
- Minimizes friction while providing smooth & quiet operation
- 10-Foot Power Cord
- 28' Max Shutoff Head
- 2-Year Limited Warrranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
506803

General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Piggy-Back Tether Switch

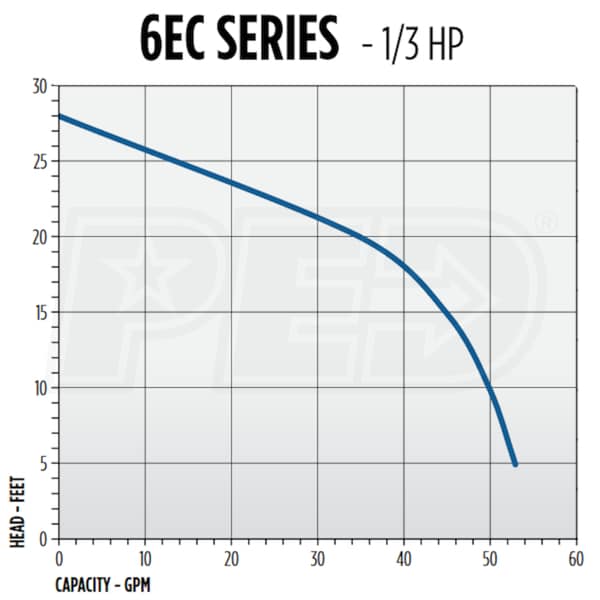

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
13-15 Inches
Float Off
6-8 Inches
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
27.5 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121149045
Reviews
(3)
Little Giant 506803 Reviews & Ratings

Pump Failed Upon Installation
By Olin K.
durango, Colorado
Purchased 11/16/2019 |
Review Posted 12/10/2019
The pump was installed in a large water tank at a depth of about 15'. When powered up, it didn't run. We pulled the pump and removed the top cap which covers the electrical compartment that contains the starting capacitor and electrical connections The compartment was full of water. We think the cover O-ring failed.
Perhaps it wasn't designed to operate in deep water. The manufacturer doesn't cover this in the pumps specifications.
Perhaps it wasn't designed to operate in deep water. The manufacturer doesn't cover this in the pumps specifications.
Olin K. Recommends This
Was this review helpful?
Expert Response
Very sorry to hear you experienced problems with your pump. Based on what you described, using this pump at a depth of 15', while the pump only has a 10' power cord leads me to believe that is pump/cord may have been modified prior to installation. Please understand that you may have voided the warranty. I would suggest contacting Little Giant directly @ (800) 701-7894, for troubleshooting.

Jim O.
Sump Pump Expert
Rating Breakdown
4/5
1/5
1/5
1/5
Pros:
Durable
Cons:
Low Quality

Sump Pump Replaced
By Peter B.
Glendale, Wisconsin
Purchased 10/21/2019 |
Review Posted 11/13/2019
Quiet and efficient.
Peter B. Recommends This
Was this review helpful?
Rating Breakdown
4/5
5/5
5/5
5/5
Pros:
Quiet
Cons:
Difficult To Use

Appears To Be A Very Good Pump For The Price
By Jeffrey B.
Windham, Maine
Purchased 07/17/2019 |
Review Posted 08/08/2019
This looks like a well made pump. Delivery was quick and installation was simple. Runs very quietly and smoothly.
Jeffrey B. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Easy To Use, Quiet, Price, Fast
