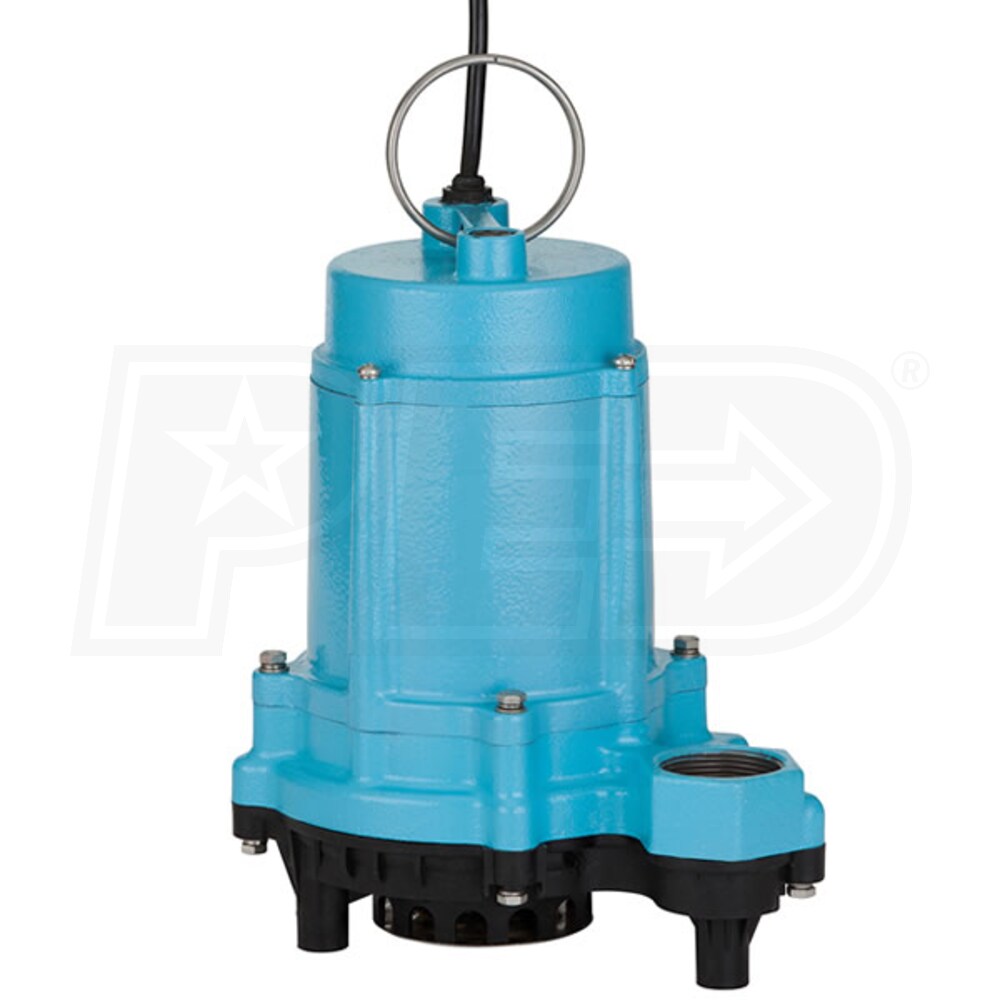

Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump w/ 20' cord (Non-Automatic)

Model:

506802

Write A Review
$239.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, May 12th
Shipping to60601
Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump w/ 20' cord (Non-Automatic)
Little Giant 6EC-CIM - 1/3 HP Submersible Sump Pump w/ 20' cord (Non-Automatic)
Model: 506802
$239.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3180 Gallons

Switch Type

Vertical

  • Manual Submersible Sump Pump - Non-Automatic
  • Continuous duty rated for sump & light effluent applications
  • Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/3 HP PSC Motor w/ Thermal Overload Protection
  • Energy saving design w/ low amp draw
  • Cooler running motor which extends the life of the pump
  • Vortex Style Nylon Impeller
  • Non-clogging design passes up to 1/2" spherical solids
  • No Sheet Metal Parts To Rust Or Corrode
  • Stainless steel intake plate, screws, bolts and handle
  • Nitrile Mechanical Shaft Seal w/ Carbon & Ceramic Faces
  • Assures maximum protection for extended pump life
  • Cold Rolled Steel Shaft w/ Upper/Lower Sintered Sleeve Bearings
  • Minimizes friction while providing smooth & quiet operation
  • 20-Foot Power Cord
  • 28' Max Shutoff Head
  • 2-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506802
specs product image PID-70638
General Information
Product Category
Sump Pump
Base
Base Material
Thermoplastic
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Nylon
Solids Handling Size
.5 inch
Maximum PSI
12.1
Total Head Lift
28 Feet
Float Type
Vertical Float

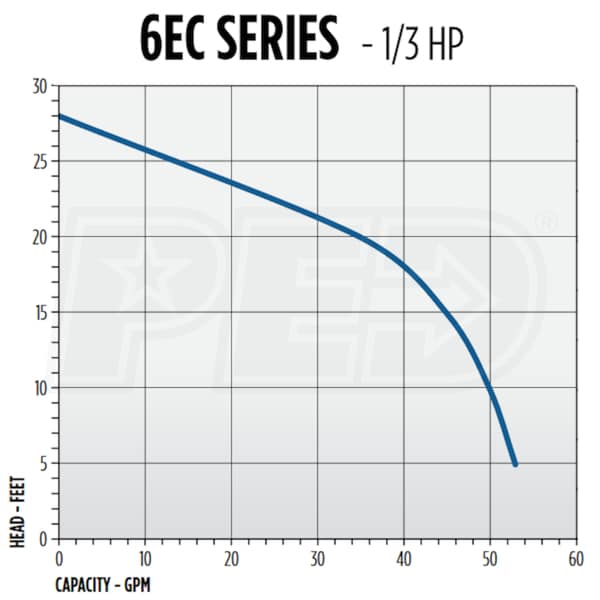

GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Manual Override
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
27.5 Pounds
Certification
cCSAus
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
8.79 Inches
Product Height
11.28 Inches
UPC
010121148994

Reviews

(3)
Little Giant 506802 Reviews & Ratings
Verified Buyer
Verified Buyer
Great Submersible Pump
By Paul K
New Mexico
Purchased 04/18/2024 |
Review Posted 06/03/2024
I bought this to replace a Little Giant Pump that was submerged in a waterfall feature for 17 years. The new pump works great and the quality is unbeatable. The new pump cost less at Sump Pumps Direct than the original pump purchase 17 years ago at a local landscape supply company.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Reliable
Cons:
None
Little Giant 6EC-CIM
By Billie B
Tennessee
Review Posted 07/16/2022
Great pump! Previous unit, same model, lasted 8 years of continuous use in the hot months. Love the 20' whip and lifting eye. First pump ordered was damaged in shipping called customer support and they were fantastic! Was sent, very quickly, a replacement pump at no cost to me. Use this pump to recirculate a 1/4 acre pond at approximately 50 gal per minute with 10 foot lift and does a fine job! If or when this one quits working I would buy it again. Will tell friends to use Sump Pumps Direct and Little Giant! ONLY CON is the weight of the unit BUT if you want a cast body you can expect that.
Billie B Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Easy To Use, Price, I'd Buy It Again, Easy To Store
Cons:
Heavy
Verified Buyer
Verified Buyer
Extremely Reliable
By Abel A.
Denver, Colorado
Purchased 03/22/2022 |
Review Posted 04/13/2022
I've been a supporter of Little Giant pumps for years. I use them for our outdoor water feature/waterfall. I run them continually and they have a very long operational life span. More importantly this company had the very best price nationwide. Big positive for me!!
Abel A. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Price, Reliable, High Quality
Cons:
Heavy

Product Q&A

(1)
Expert avatar photo
Product Questions Answered by Jim, the Sump Pump Expert
Will the pump be damaged if it sits completely submerged for an extended period of time without running?
Jeff V.
from Vermont
July 22, 2017
