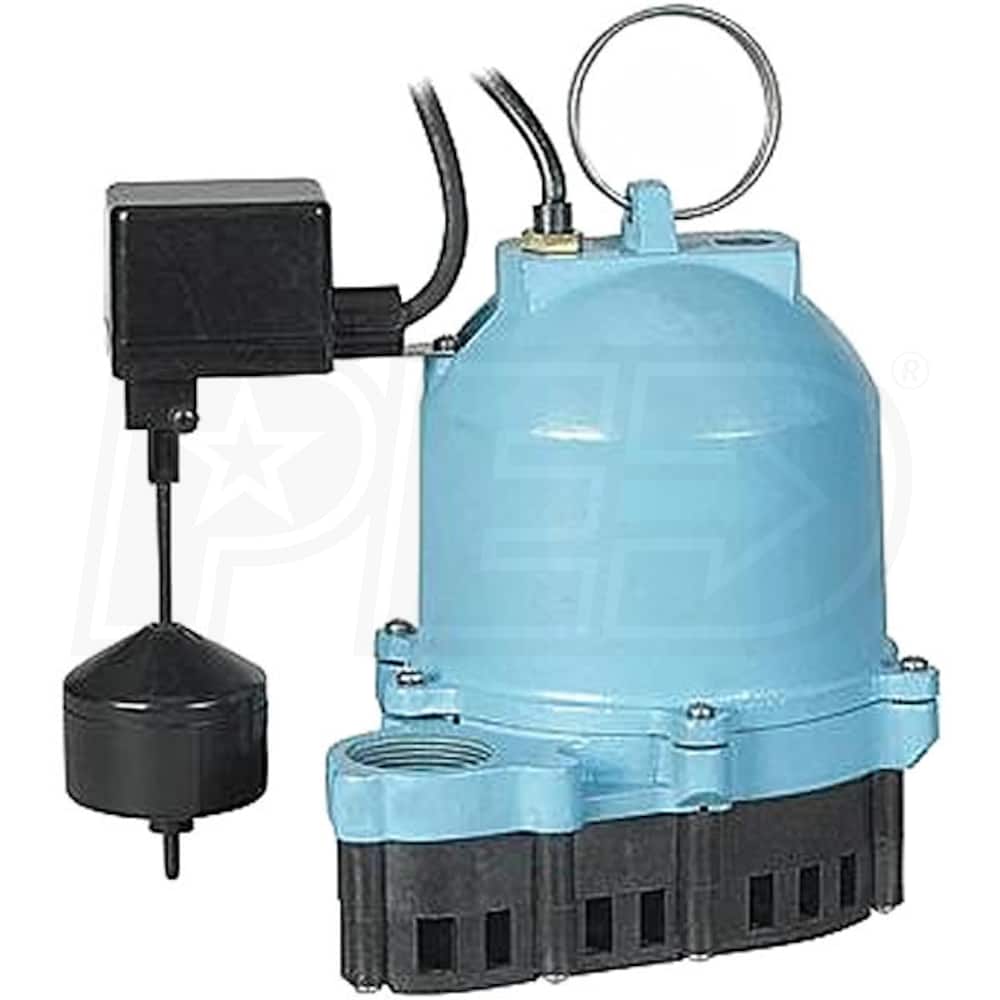

Little Giant ES33V1-10 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch

Model:

506422

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Little Giant ES33V1-10 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Little Giant ES33V1-10 - 1/3 HP Cast Iron Submersible Sump Pump w/ Vertical Float Switch
Model: 506422
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3120 Gallons

Switch Type

Vertical

  • Contractor Grade, High Performance, Submersible Sump Pump
  • For use in residential and light commercial applications
  • Epoxy Coated Cast Iron Housing
  • Corrosion resistance design extends the life of the pump
  • Piggyback Vertical Float Switch
  • Switch can be bypassed to run pump manually in an emergency
  • Thermal Overload Protected, Powerful 1/3 HP (5-Amp) PCS Motor
  • For high starting & running torque
  • Low amp draw to conserve electrical energy
  • Oil-Filled Motor Housing
  • For lifetime bearing lubrication & maximum heat dissipation
  • Recessed, Composite Vortex Impeller
  • Reduces clogging with the ability to pass up to 3/8" solids
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper Sintered-Sleeve Bearing & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506422
specs product image PID-10286
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Solids Handling Size
.375 inch
Float Type
Vertical Float

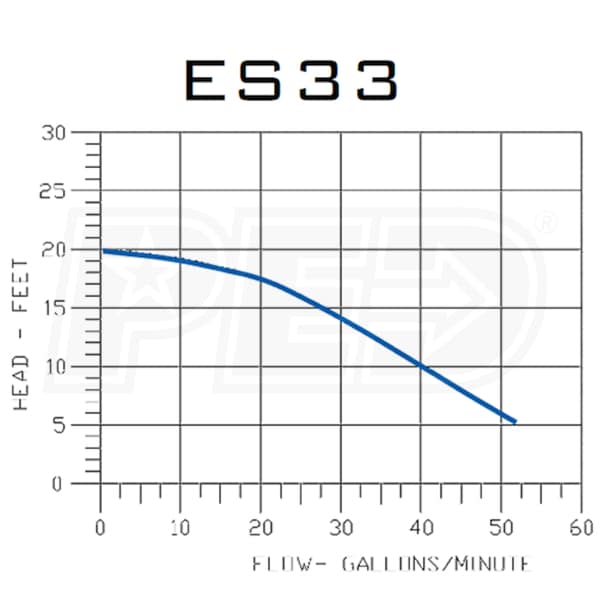

GPH @ 0 feet
3120
GPH @ 5 feet
3120
GPH @ 10 feet
2400
GPH @ 15 feet
1680
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
4.25-5.75 Inches
Float Off
1.5-2.5 Inches
Manual Override
Yes
Engine
Horsepower
.33 HP
Overview
Weight
28 Pounds
Consumer Warranty
1 Year
Product Length
9.75 Inches
Product Width
11.75 Inches
Product Height
9.25 Inches
UPC
010121109063
