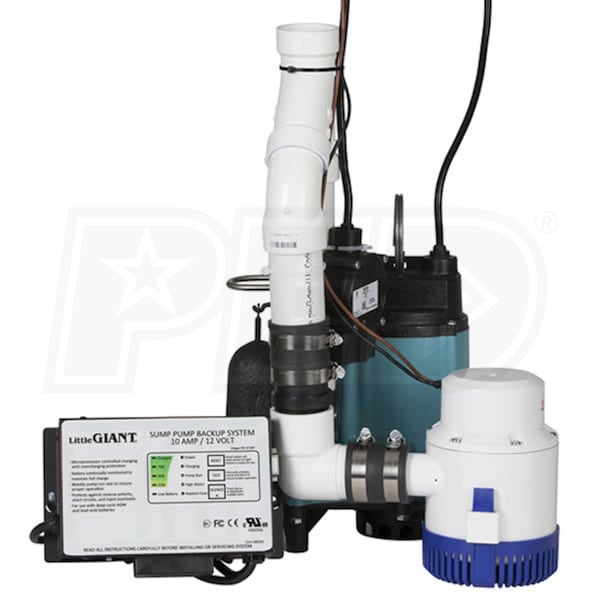

Little Giant SPBS-10HF-6 - 1/3 HP Combination Primary & Backup Sump Pump System
Model:
506411
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Combo
GPH
3180 Gallons
Switch Type
Diaphragm
- Protect Your Home + Added Peace Of Mind
- Easy and quick installation
- Diaphragm switch eliminates moving parts switch error
- Check valve, elbow connector, & pump coupling included
- 12-Volt DC Backup Pump
- Empties the sump pit after a malfunction, outage or excess water
- 2520 GPH at 0' and 1200 GPH @ 10'
- 20' shut off/maximum lift
- 1/3 HP Primary Pump (6EC-CIA-SFS)
- Energy-efficient permanent split capacitor (PSC) motor
- Automatic reset thermal overload protection
- Heavy-duty cast iron construction
- 10-Amp Controller/Charger/Alarm Unit
- Test button to manually run backup pump to insure proper operation
- Battery continually monitored to maintain full charge
- 6' power cord on pump and charging unit
- BATTERY & BATTERY ACID IS SOLD SEPARATELY
- Use only with 12 VDC deep cycle battery (Size 27)
- Rated 85-140Ah, lead-acid or AGM
- For Indoor Use Only
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
506411
General Information
Product Category
Sump Pump
Base
Min Sump Basin Size
18 Inch
Motor
Voltage
120 Volt
Running Amps
14
Battery Included
No
Thermal Protection
Yes
Power Cord Length
6 Feet
Starting Amps
32
Pump
Outlet Diameter
1-1/2 Inch
Pump Head Material
Cast Iron
Quick Clean Out
Yes
Housing Material
Cast Iron
Solids Handling Size
1/8 inch
Handles Solids
No
Maximum PSI
11.7
Total Head Lift
36 Feet
Float Type
Diaphragm
GPH @ 0 feet
3180
GPH @ 5 feet
3180
GPH @ 10 feet
3000
GPH @ 15 feet
2520
GPH @ 20 feet
2040
Backup GPH @ 0 feet
2520
Check Valve Included
Yes
Float On
13.5
Float Off
9
Backup GPH @ 5 feet
1740
Backup GPH @ 10 feet
1200
Backup GPH @ 20 feet
0
Battery Recharger
10 Amps
Max Head
20 Feet
Engine
Horsepower
.3 HP
Overview
Product Category
Sump Pump
Weight
41.5 Pounds
Consumer Warranty
2 Years
UPC
010121148123
