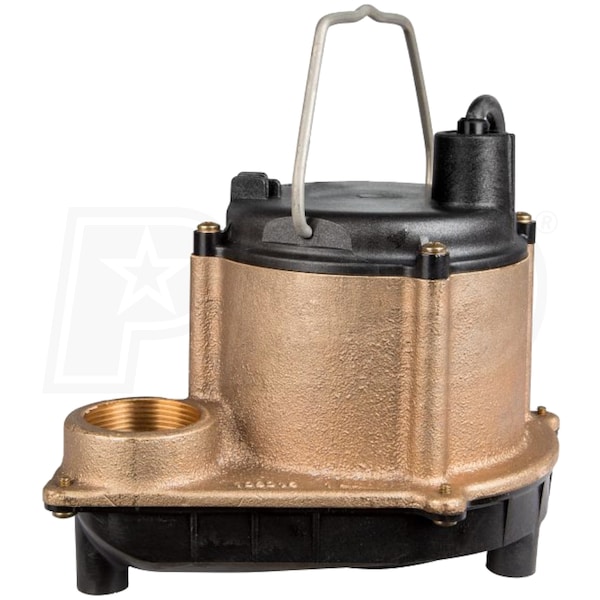

Little Giant 6-CBM - 1/3 HP Cast Bronze Submersible Sump Pump w/ 10' Cord (Non-Automatic)

Model:

506257

Write A Review
$318.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Monday, Nov 25th
Shipping to60601

Little Giant 6-CBM - 1/3 HP Cast Bronze Submersible Sump Pump w/ 10' Cord (Non-Automatic)
Little Giant 6-CBM - 1/3 HP Cast Bronze Submersible Sump Pump w/ 10' Cord (Non-Automatic)
Model: 506257
$318.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2760 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch***
  • Little Giant 506257 - 6-CBM - 1/3 HP Bronze Sump Pump (115V)
  • Continuous duty rated for residential & light commercial use
  • Polypropylene Base w/ Epoxy Coated Cast Bronze Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • A great option for sump pits w/ brine water (water softener)
  • 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Oil-filled motor housing provides lower operating temperatures
  • Vortex Style Nylon Impeller
  • Corrosion resistant design minimizes clogging
  • Stainless Steel Fasteners
  • Protects against corrosion in harsh sump pits
  • Upper Sintered-Sleeve Bearing & Lower Ball Bearings
  • Minimizes friction while providing smooth & quiet operation
  • Carbon/Ceramic Mechanical Seal
  • Assures maximum protection against pump failure
  • 10' Power Cord
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

506257
specs product image PID-153277
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
14.3
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast-Bronze
Impeller Material
Nylon
Solids Handling Size
.13 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Manual Override
Yes
Max Head
18 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
17.75 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
7.25 Inches
UPC
010121014107
