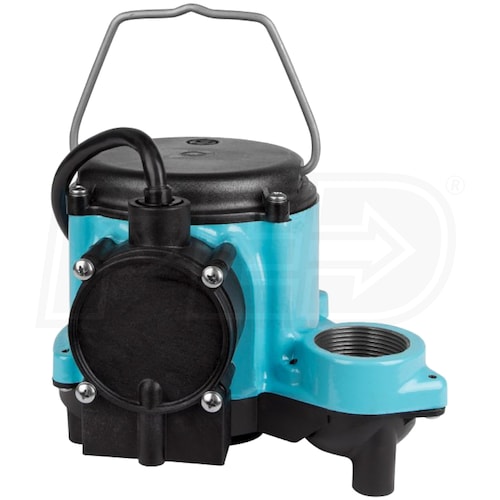

Little Giant 6-CIA - 1/3 HP Cast Iron Automatic Sump Pump w/ Integral Diaphragm Switch (25' Cord)
Model:
506125
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Primary
GPH
2760 Gallons
Switch Type
Diaphragm
- Little Giant 506125 - 6-CIA - 1/3 HP Automatic Sump Pump (115V)
- Continuous duty rated for basement & crawlspace applications
- Polypropylene Base w/ Epoxy Coated Cast Iron Pump Housing
- Minimizes rust & corrosion to extend overall pump life
- Integral Diaphragm Pressure Switch
- Provides reliable automatic operation
- 1/3 HP Shaded Pole Motor w/ Thermal Overload Protection
- Oil-filled motor housing provides lower operating temperatures
- Vortex Style Nylon Impeller
- Reduces clogging while providing consistent pumping
- Stainless Steel Fasteners
- Protects against corrosion in harsh sump pits
- Upper & Lower Sintered-Sleeve Bearing
- Minimizes friction while providing smooth & quiet operation
- Carbon/Ceramic Mechanical Seal
- Assures maximum protection against pump failure
- 25' Power Cord
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
506125
General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Motor
Voltage
120 Volt
Running Amps
9
Thermal Protection
Yes
Power Cord Length
25 Feet
Oil Free Motor
No
Starting Amps
14.3
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Nylon
Handles Solids
No
Float Type
Diaphragm
GPH @ 0 feet
2760
GPH @ 5 feet
2760
GPH @ 10 feet
1740
GPH @ 15 feet
750
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Manual Override
No
Max Head
18 Feet
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
18.5 Pounds
Consumer Warranty
3 Years
Commercial Warranty
3 Years
Product Length
9.5 Inches
Product Width
8.5 Inches
Product Height
6 Inches
UPC
010121061255
