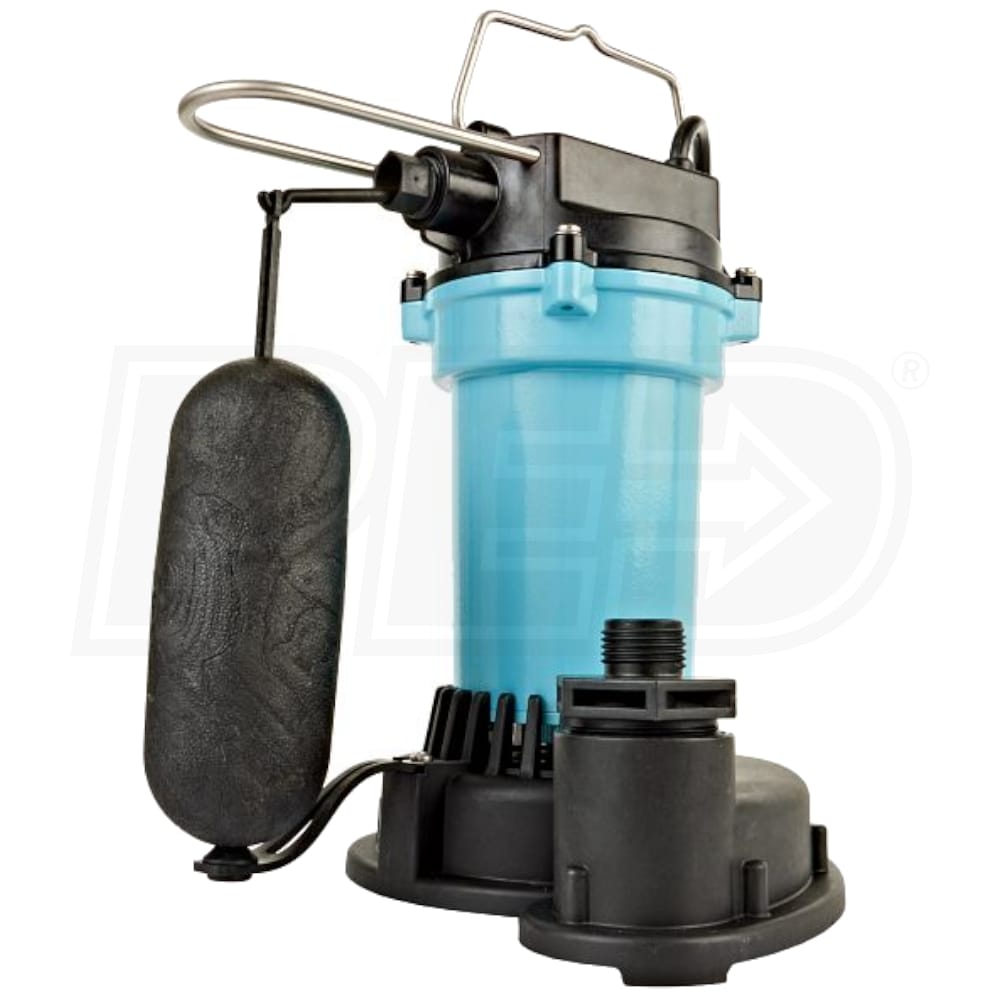

Little Giant 5.5-ASPA - 1/4 HP Submersible Sump Pump w/ Vertical Float Switch

Model:

505702

Write A Review
$165.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days
Little Giant 5.5-ASPA - 1/4 HP Submersible Sump Pump w/ Vertical Float Switch
Little Giant 5.5-ASPA - 1/4 HP Submersible Sump Pump w/ Vertical Float Switch
Model: 505702
$165.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

2400 Gallons

Switch Type

Vertical

  • Automatic Submersible Sump Pump
  • Great for light sump & light effluent applications
  • Polypropylene Base w/ Alumunium Pump Housing
  • Minimizes rust & corrosion to extend overall pump life
  • 1/4 HP Shaded Pole Motor w/ Thermal Overload Protection
  • Provides added protection to keep your pump running
  • Integral Snap-Action Vertical Float Switch
  • Double-seal design minimizes switch corrosion
  • Vortex Style Nylon Impeller
  • Allows for solid handling up to 3/8"
  • 1-1/4" Discharge w/ 3/4" Garden Hose Adapter
  • Easily connect to existing plumbing
  • Great for emergency dewatering via garden hose
  • 10-Foot Power Cord
  • 1-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

505702
specs product image PID-109632
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
3.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast-Aluminum
Impeller Material
Plastic
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Vertical Float

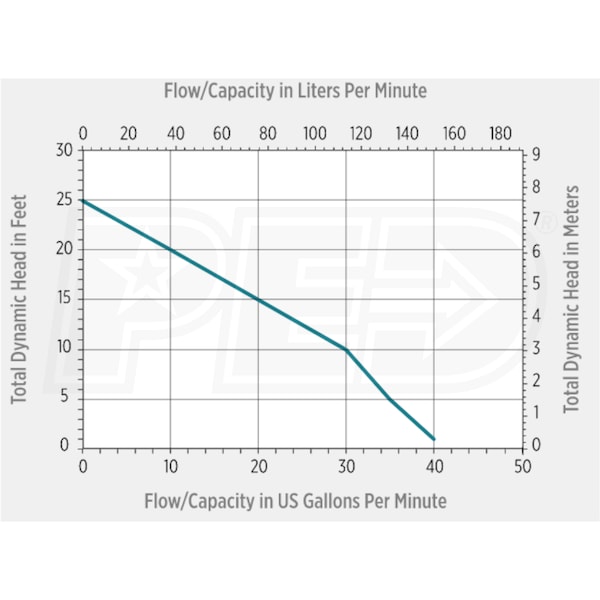

GPH @ 0 feet
2400
GPH @ 5 feet
2100
GPH @ 10 feet
1800
GPH @ 15 feet
1200
GPH @ 20 feet
600
Discharge Port Size
1-1/2 Inch
Manual Override
No
Max Head
25 Feet
Submersible
Yes
Engine
Horsepower
.25 HP
Overview
Product Category
Sump Pump
Weight
10.25 Pounds
Consumer Warranty
1 Year
Commercial Warranty
1 Year
Product Length
10.4 Inches
Product Width
8.7 Inches
Product Height
10.8 Inches
UPC
010121003385
