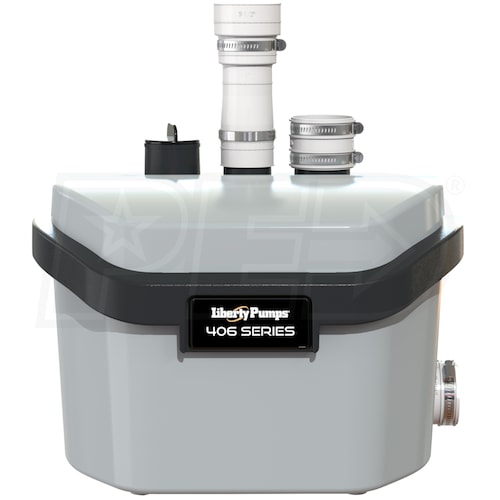

Liberty Pumps 1/6 HP Compact Remote Sink/Drain Pump System (1-1/2") (200/230V)

Model:

406HV

Write A Review
$342.75
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Liberty Pumps 1/6 HP Compact Remote Sink/Drain Pump System (1-1/2
Liberty Pumps 1/6 HP Compact Remote Sink/Drain Pump System (1-1/2") (200/230V)
Model: 406HV
$342.75
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

GPH

1200 Gallons

Switch Type

  • Liberty Pumps Compact Drain Pump (200/230V)
  • Factory pre-assembled for easy installation
  • Versatile Design

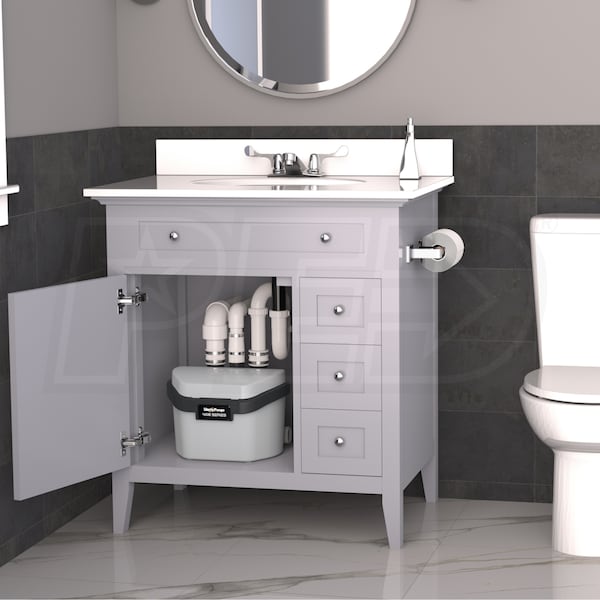

  • For utility & bar sinks, bar sinks, laundry trays and dehumidifiers

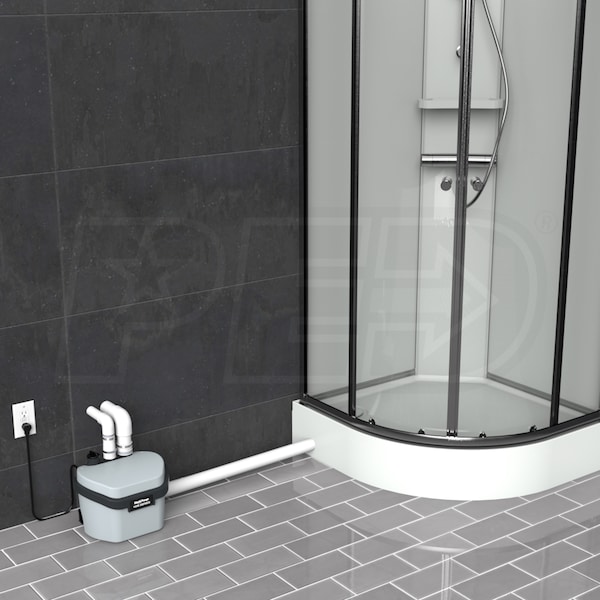

  • Showers and Gray wastewater drainage below gravity lines
  • Compact, Short Profile Design
  • Corrosion-resistant ABS basin with molded-in connections
  • Only 10" tall (base to top inlet flange)
  • Fully Automatic Operation
  • Easy access to float switch without disconnecting piping
  • Designed For Quiet Operation
  • Keeps the noise levels under 50dB
  • 1/6 HP Air-Cooled Motor w/ Thermal-Overload Protection (200/230V)
  • Maintenance free, permanently lubricated sealed bearings
  • 1/8" Solids handling
  • Meets the needs for most gray water applications
  • Floor-Level Side Inlets w/ Integral Check Valve & Couplings
  • Allows for easier plumbing
  • Stepped Discharge Adapter
  • 1", 1-1/4" & 1-1/2" options
  • Easy Serviceability
  • Access cover with gas-tight seal
  • 9' Power Cord w/ 3-Prong, Grounded Plug
  • Ideal for most applications
  • Maximum Fluid Temperature:
  • 104°F (40°C) continuous duty
  • 140°F (60°C) intermittent duty (10 seconds on/5 seconds off)
  • 3-Year Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

406HV
specs product image PID-113427
General Information
Product Category
Sump Pump
Motor
Voltage
230 Volt
Running Amps
1.0
Power Cord Length
9 Feet
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.125 inch
Handles Solids
Yes
Total Head Lift
25 Feet
Float Type
Internal Switch
GPH @ 0 feet
1200
GPH @ 5 feet
1140
GPH @ 10 feet
990
GPH @ 15 feet
810
GPH @ 20 feet
600
Discharge Port Size
1-1/4 Inch and 1-1/2 Inch
Check Valve Included
Yes
Engine
Horsepower
.16 HP
Overview
Product Category
Sump Pump
Weight
17 Pounds
Consumer Warranty
3 Years
Product Length
13.2 Inches
Product Depth
10.7 Inches
Product Height
8.9 Inches
UPC
671812163018
