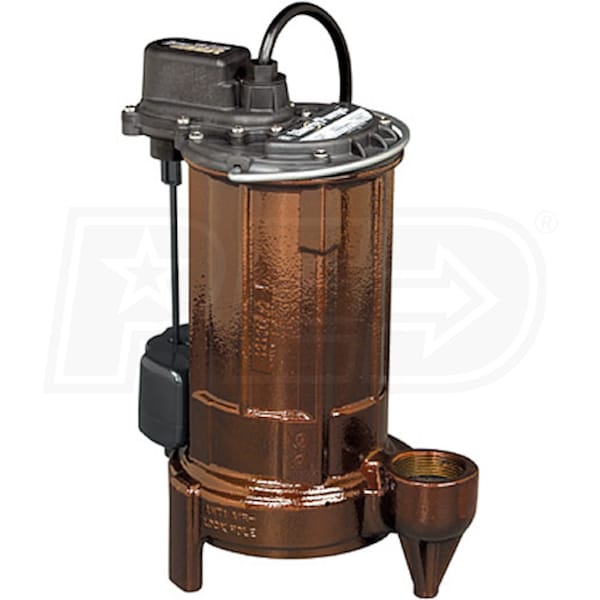

Liberty Pumps 287HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump w/ Vertical Float (208-230V)

Model:

287HV

Write A Review
$357.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 2-5 Business Days

Liberty Pumps 287HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump w/ Vertical Float (208-230V)
Liberty Pumps 287HV - 1/2 HP Cast Iron Submersible Sump / Effluent Pump w/ Vertical Float (208-230V)
Model: 287HV
$357.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

4080 Gallons

Switch Type

Vertical



Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • ***208-230 Volt***
  • Automatic Submersible Cast Iron Sump Pump
  • For high head (up to 30') and/or high output applications
  • Liberty's UNI-BODY Casting w/ Epoxy Powder Coat Finish
  • A solid, one-piece housing that eliminates lower motor seal
  • Magnetically Operated Vertical Float Switch
  • Provides automatic operation in sump pits as small as 10-inches
  • Rugged, Energy Efficient & Thermally Protected 1/2 HP Motor (208-230V)
  • Hermetically sealed, permanently lubricated design
  • High-Temperature, Engineered Polymer Impeller
  • Vortex style design for superior solid handling
  • High Capacity 1-1/2" Discharge
  • Will replace most pumps without any plumbing changes
  • Quick-Disconnect 10' Standard Power Cord
  • Allows for easy replacement of cord without breaking motor seals
  • Non-Corrosive Stainless Steel Fasteners & Bottom Screen
  • Increases the lifespan of the pump even in the harshest sump pits
  • Easily removable screen keeps debris from damaging the pump
  • 416 Stainless Steel Rotor Shaft
  • With permanently lubricated bearings for extended pump life
  • 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

287HV
specs product image PID-80171
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Min Sump Basin Size
10 Inch
Motor
Voltage
208/230 Volt
Running Amps
4.6
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
23
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4080
GPH @ 5 feet
3750
GPH @ 10 feet
3360
GPH @ 15 feet
2940
GPH @ 20 feet
2520
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
9.5 Inches
Float Off
4 Inches
Manual Override
No
Max Head
38 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
29 Pounds
Consumer Warranty
3 Years
Product Length
9.5 Inches
Product Width
6.5 Inches
Product Height
13 Inches
UPC
671812109733
