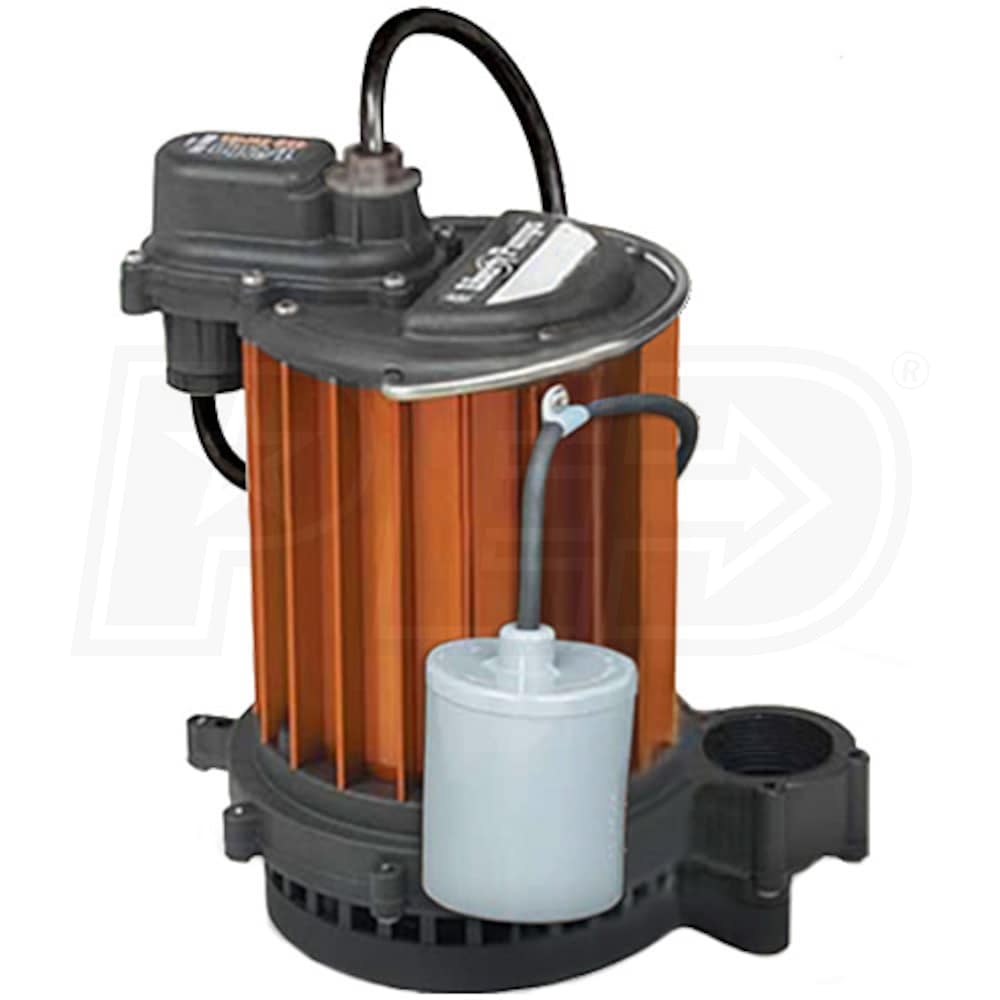

Liberty Pumps 233 - 1/3 HP Aluminum Submersible Sump Pump w/ Piggyback Tether Float
Model:
233
+
Share This Product
Similar Products
Recommended Accessories

Expert Recommended Accessories
Selected by Jim, our Expert
Optional Accessories
16
$240.00
In-Stock
Model: 442-10A-EYE
$1,182.75
Only 1 In-Stock
$394.50
In-Stock
$153.00
Only 1 In-Stock
Model: ALM-P1-EYE
$397.50
Only 4 In-Stock
$65.25
In-Stock
Model: CV150
$15.00
Only 5 In-Stock
$20.25
Only 3 In-Stock
$20.25
In-Stock
Model: QCV150
$32.25
Only 5 In-Stock
Model: SSPC
$156.00
Only 5 In-Stock
Model: E2-2200
$59.99
In-Stock
Model: E-C18EWSF
$33.99
In-Stock
Model: 30-0041
$31.90
In-Stock
$18.00
In-Stock
Features
Style
Primary
GPH
2640 Gallons
Switch Type
Piggy-Back Tether

Liberty Pumps 233 - 1/3 HP Aluminum Submersible Sump Pump w/ Piggyback Tether Float
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- Automatic Aluminum/Polypropylene Sump Pump
- A superior value for average water removal
- Deep Finned Powder Coated Aluminum Motor Housing
- Provides 225% more cooling capacity than cast iron housings
- Quick-Disconnect Wide Angle Piggyback Tether Float Switch
- Provides automatic operation in sump pits as small as 14-inches
- Rugged & Thermally Protected 1/3 HP Motor
- Hermetically sealed, permanently lubricated design
- High-Temperature, Engineered Polymer Impeller
- Vortex style design for superior solid handling
- High Capacity 1-1/2" Discharge
- Will replace most pumps without any plumbing changes
- Quick-Disconnect 10' Standard Power Cord
- Allows for easy replacement of cord without breaking motor seals
- Removable Pump Base
- Allows for suction down to 1/8"
- Non-Corrosive Stainless Steel Fasteners & Rotor Shaft
- Increases the lifespan of the pump even in the harshest sump pits
- Permanently lubricated upper/lower bearings for extended life
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov
Specifications
233

General Information
Product Category
Sump Pump
Base
Base Material
Polypropylene
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
5.2
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Starting Amps
8
Pump
Housing Material
Aluminum
Impeller Material
Composite
Solids Handling Size
.375 inch
Float Type
Piggy-Back Tether Switch

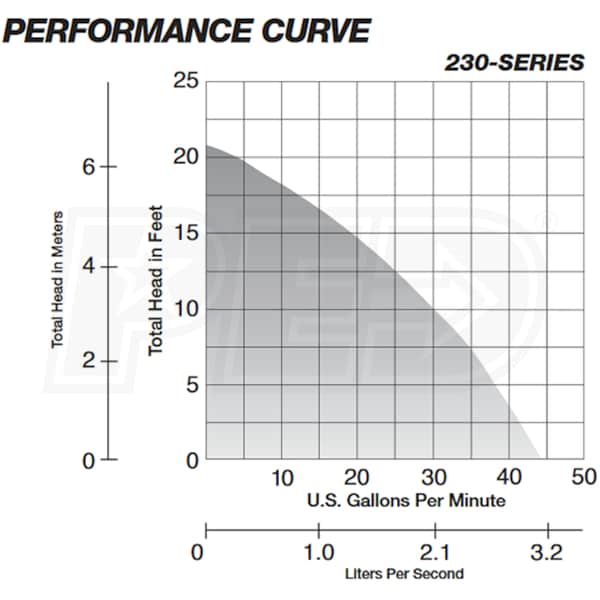

GPH @ 0 feet
2640
GPH @ 5 feet
2220
GPH @ 10 feet
1800
GPH @ 15 feet
1140
GPH @ 20 feet
240
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
10 Inches
Float Off
4 Inches
Manual Override
Yes
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
12 Pounds
Consumer Warranty
3 Years
Product Length
9.625 Inches
Product Width
6.5 Inches
Product Height
10.5 Inches
UPC
671812002331
Reviews
(3)
Liberty Pumps 233 Reviews & Ratings

Quality Pump, Good Price
By Jim G.
Franksville, Wisconsin
Purchased 04/05/2017 |
Review Posted 10/26/2020
I purchased two of these pumps, they seemed quality built. I installed them, plugged them in and they have been perfect. They are so quiet I sometimes have to check the water level to make sure they are operating. Very pleased, highly recommended.
Jim G. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Price, Exceeded Expectations, High Quality

Excellent Shopping Experience
By Jim W.
SAN CLEMENTE, California
Purchased 11/14/2015 |
Review Posted 12/08/2015
Purchasing a Liberty (233) sump pump was incredibly fast & easy. Really great website and e-com deal. As for the pump, I've had two of these in the ground at a rental property for about 5 years and they have performed flawlessly. I bought this last one as a spare in preparation for El Niño!
Jim W. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5

Too Pretty To Use!
By Frank S.
Ankeny, Iowa
Purchased 06/19/2014 |
Review Posted 07/10/2014
This is the best sump pump I have ever purchased. I've been using sump pumps for over 40 years all types from pedestal to submersibles. This pump is the most quiet by far, you must be standing right next to it to hear it run. It does a great job of lifting water while being very energy efficient, only 5.2 running amps and less than half the start amps of any other pump I've owned. This makes it a good choice when used with a portable emergency generator. I remounted the tether switch onto the discharge pipe to increase the switch cycle range using a couple of hose clamps and a piece of old radiator hose. Also Installed a Zoeller check valve. Nice looking copper powder coat.
Frank S. Recommends This
Was this review helpful?
Rating Breakdown
5/5
5/5
5/5
5/5
Pros:
Quiet, Fast, High Quality, Energy Efficient
