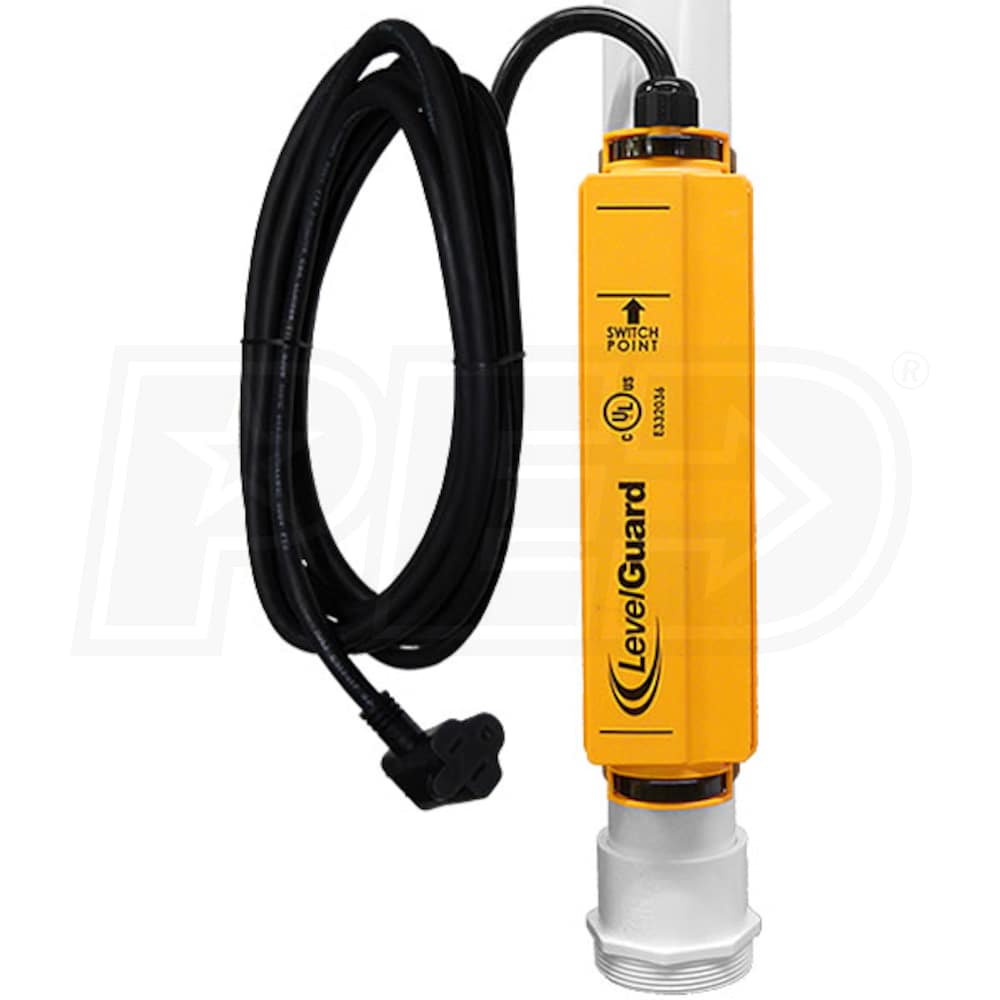

LevelGuard Z24801A1Z - Electronic Sump Pump Switch w/ 15' Cord

Model:

Z24801A1Z

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
LevelGuard Z24801A1Z - Electronic Sump Pump Switch w/ 15' Cord
LevelGuard Z24801A1Z - Electronic Sump Pump Switch w/ 15' Cord
Model: Z24801A1Z
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Optional Accessories 10
$268.00
In-Stock
$99.99
Factory-Direct
$24.99
Only 2 In-Stock
$24.99
In-Stock
$123.00
Only 1 In-Stock
$31.90
In-Stock
$48.00
In-Stock

Features

LevelGuard Z24801A1Z - Electronic Sump Pump Switch w/ 15' Cord


Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
  • LevelGuard™ Electronic Sump Pump Control
  • The most dependable electronic switch on the market today
  • "Field-Effect" Sensing Technology
  • Reliably detects water level and solid-state digital switching
  • NO MOVING PARTS
  • Eliminates the #1 failure mode in traditional sump pump systems
  • Water-Tight Thermoplastic Shell
  • Requires less working space than mechanical float switches
  • 6.7" Fluid Level Control Range
  • Automatic time-delay before turn-on
  • Minimizes activation from water sloshing & extends pump life
  • Tested To Over 5 Million Cycles w/ Fused Over-Current Protection
  • Protects against pump electrical failures
  • Outperforms conventional float switches 10 to 1
  • 15' Cord w/ Piggyback Plug Electrical Installation
  • Replaces existing switch connected to non-auto pumps
  • Rated For Pumps Up To 1/2 HP (12A Continuous - 30A Fuse)
  • Should Not Be Used If Water Softener Empties Into Pit
  • May Cycle Rapidly On Install - Allow 24 Hrs For Switch To Adjust
  • 5-Year Limited Warranty - UL-Listed & RoHS Compliant
California residents see
Warning: This product can expose you to chemicals including Antimony oxide (Antimony trioxide) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov

Specifications

Z24801A1Z
specs product image PID-13565
General Information
Product Category
Water Pump Accessories
Motor
Power Cord Length
15 Feet
Rated Capacity
12
Nominal Voltage
120 Volt
Pump
Float Type
Electronic
Overview
Product Category
Water Pump Accessories
Weight
2.5 Pounds
Made in USA
No
Consumer Warranty
5 Years
Product Length
10.1 Inches
Product Width
2.4 Inches
Product Height
1.1 Inches
UPC
816073010163

Reviews

(6)
LevelGuard Z24801A1Z Reviews & Ratings
Customer Photos and Videos
review video 1
LevelGuard
Manufacturer Review
The Only Switch That Will Outlast The Pump
By Jay Orellana
LevelGuard Business Development Manager
Review Posted 04/21/2017
Solid-state, electronic pump switch for sump, effluent, sewage and grinder pumps.

5 year warranty, no moving parts to wear out, tested for millions and millions of cycles.

Rated for maximum 1/2 horsepower or 9.8 steady-state amp pump motors.

Piggy-back plug for 120 Vac non-automatic pumps (i.e. without built-in float switch) or pigtail leads for industrial pump control panels.

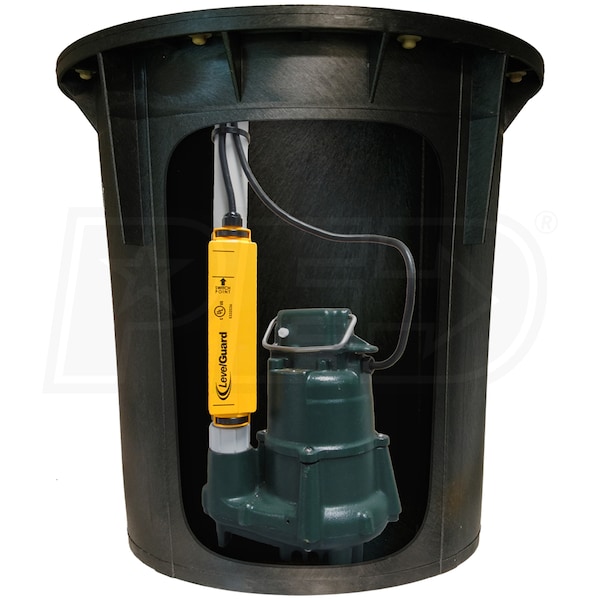

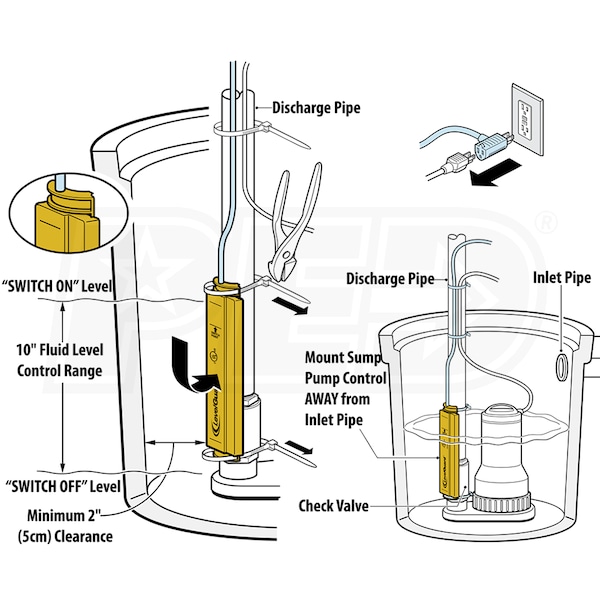

Easily installs in minutes, simple zip-tie mounting to discharge pipe.

No floats to get stuck in small or crowded pits, no worries of pump being stuck OFF and flooding the pit or stuck ON and burning out the motor.

Approx. 8 to 10 inches of draw-down during each pump cycle, extends pump life by reducing wear-n-tear from shorter cycling.

Tens of thousands of units in the field receiving 5-star/A+ user ratings and comments of "high quality", "durable", "built like a tank", "great value for the money", "hassle/maintenance free", "better than a float" and "the only switch that will outlast the pump".

Can be purchased as a stand-alone accessory/replacement part or as a Sump Pumps Direct pump & switch combo kit with Zoeller, Liberty, Little Giant, etc. pumps.
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Very Accurate And Easy To Install!
By Michael W.
Clinton, Illinois
Purchased 11/22/2021 |
Review Posted 01/25/2022
This product is accurate and easy to install. No moving parts and built well. Mine has been in service for 4 months with no issues. This product is worth the money in my opinion!
Michael W. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Easy To Use, Reliable, High Quality
Cons:
None
Verified Buyer
Verified Buyer
Great Product Great Company very RELIABLE
By John S.
Cantonment, Florida
Purchased 04/23/2020 |
Review Posted 05/16/2020
Great product. My sump comes on 100 percent of the time when water line reaches the turn on point. Cannot say enough good about it. Got the switch because mechanical switches were not reliable. Use the sump pump to keep cutter water from flooding my back yard.
John S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
Pros:
Durable, Easy To Use, Exceeded Expectations, Fast
Cons:
Expensive
Verified Buyer
Verified Buyer
Level Guard
By Randall R.
Saginaw, Michigan
Purchased 02/21/2018 |
Review Posted 03/14/2018
Easy to install. Appears to be top quality, five (5) warranty. Working flawlessly so far, been one (1) month since installation. Unsure as to impact of lime deposits over time. May need to remove and clean with “CLR” periodically?..

Time will tell as to the overall long term reliability.
Randall R. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Pros:
Durable, Easy To Use, High Quality, I'd Buy It Again
Verified Buyer
Verified Buyer
Simple, What Else Can I Say
By Verl H.
Meza, Arizona
Purchased 08/29/2016 |
Review Posted 09/19/2016
It works, no more stuck floats...Nuff said.
Verl H. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
5/5
icon-review-marker
Verified Buyer
Verified Buyer
Third One Purchased
By Robert S.
Green Lake, Wisconsin
Purchased 07/06/2016 |
Review Posted 07/29/2016
I purchased two LevelGuards several months ago for my sump pits. They are super easy to install with the piggyback plug & appear to be reliable. I had a neighbor that had sump pump issues because the float switch was broken. I purchased this one for his sump pump. Only positive experiences with ordering & the product.
Robert S. Recommends This
Was this review helpful?
Rating Breakdown
Features
5/5
icon-review-marker
Quality
5/5
icon-review-marker
Performance
5/5
icon-review-marker
Value
4/5
icon-review-marker
