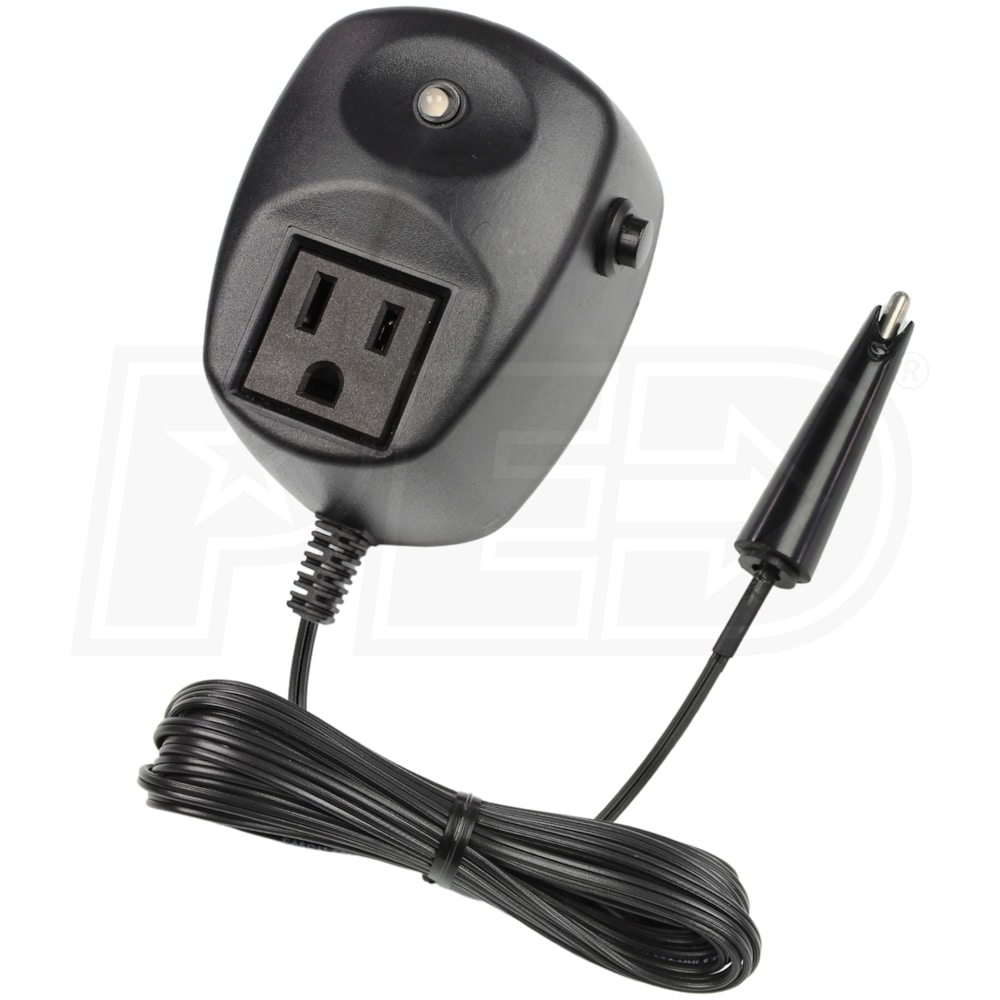

HydroCheck HC5000T - Electronic Sewage Pump Switch w/ Programmable Cycle Length & Built-in Alarms
Model:
HC5000T
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
- NO NEED TO OPEN SEWAGE PIT:
- The HC5000T is easy to install and does not require you to open the sewage pit! Simply lower the sensor into the pit so that it is positioned at the level where you want the pump to turn on and secure the wire externally.
- NO CLEANING & NO MOVING PARTS:
- This innovative sensor is designed to be unaffected by chemicals or waste in the water and never needs to be cleaned! The electronic control module provides the ultimate reliability by eliminating moving parts in the pit that can seize up or fail.
- COMPATIBLE WITH ALL SEWAGE/EJECTOR PUMPS & PIT SIZES:
- The HC5000T is specifically designed to work with ejector/lift station pumps and replaces any existing float switch. The small sensor design is ideal for narrow or crowded pits.
- PROGRAMMABLE CYCLE LENGTH & BUILT-IN ALARMS

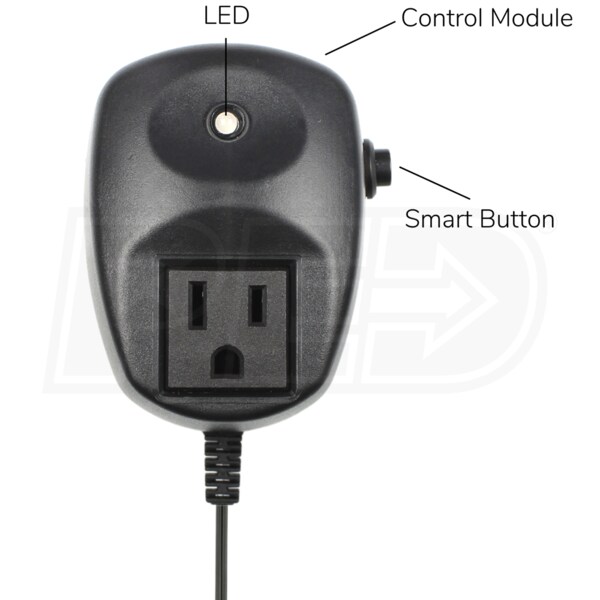

- Use Smart Button to easily program a precise cycle length for your sewage pump that will begin when liquid reaches the sensor tip. Built-in alarms will sound should a problem occur such as pump failure, high water, discharge hose blockage & trapped air.
- All alarms can be individually muted or silenced using the Smart Button.
- TESTED TO MORE THAN 1 MILLION CYCLES WITH A 5 YEAR WARRANTY:
- Manufactured in the USA and backed by an exceptional customer support team that is available to answer all of your product and installation questions!
- Tested to more than 1 million cycles, this tried-and-true technology has been trusted by industry professionals for more than 20 years!
- Additional Specs:
- Voltage: 120V
- Min/Max Current: 2.5/14 Amps (running amps within this range)
- Min/Max Run Time: 5/90 Seconds
- Cable Length: 12 Feet
- For Indoor Use In Pits That Can Be Emptied In 90 Seconds Or Less
- 5-Year Warranty
The HC5000T Sewage Pump Switch is designed to replace mechanical float switches and pressure switches that are used in sewage pits. The unique design of the HC5000T allows you to install it without having to take out the failed mechanical switch or having to open the sewage pit. Unlike traditional float switches, the HC5000T is unaffected by waste water due to its dry-sensor technology. No submerged parts in the pit ensures reliability.
The HC5000T will run the pump for a precise amount of time when triggered by the water reaching the sensor tip. Use the Smart Button to easily program a precise cycle length for your sewage pump that will begin when liquid reaches the sensor tip. Built-in alarms will alert you if there is a problem with the pump or the discharge plumbing. Not rated for outdoor use.

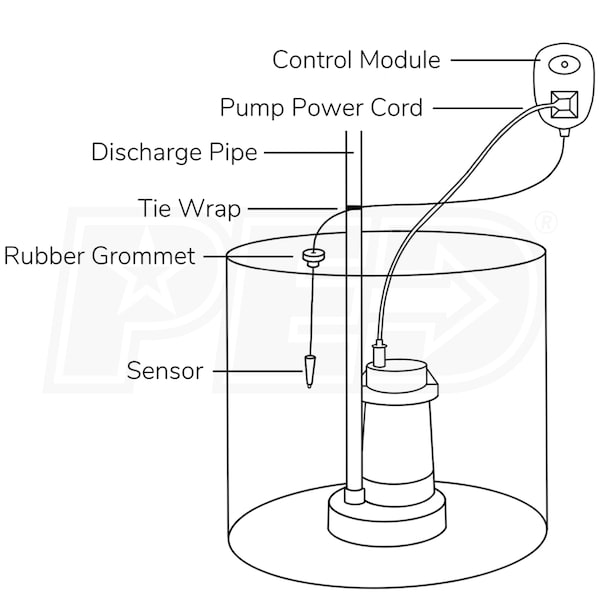

How It Works
The placement of the sensor determines when the programmed pump cycle begins. After the cycle has finished, the pump will turn off. Following the sequence below, the operation is as follows:
1. The pump is off when the water/waste is below the Sensor.
2. When water/waste reaches the sensor the pump is turned on.
3. The pump stays on for the duration of the programmed run time.
4. The pump is turned off when the programmed run time has expired.
Notice that in the HC5000T's operation the sensor is never submerged and therefore cannot be affected by debris.
The HC5000T will run the pump for a precise amount of time when triggered by the water reaching the sensor tip. Use the Smart Button to easily program a precise cycle length for your sewage pump that will begin when liquid reaches the sensor tip. Built-in alarms will alert you if there is a problem with the pump or the discharge plumbing. Not rated for outdoor use.
How It Works
The placement of the sensor determines when the programmed pump cycle begins. After the cycle has finished, the pump will turn off. Following the sequence below, the operation is as follows:
1. The pump is off when the water/waste is below the Sensor.
2. When water/waste reaches the sensor the pump is turned on.
3. The pump stays on for the duration of the programmed run time.
4. The pump is turned off when the programmed run time has expired.
Notice that in the HC5000T's operation the sensor is never submerged and therefore cannot be affected by debris.
Specifications
HC5000T
General Information
Product Category
Water Pump Accessories
Motor
Voltage
120 Volt
Power Cord Length
12 Feet
Overview
Product Category
Water Pump Accessories
Made in USA
Yes
Consumer Warranty
5 Years
UPC
891138000136
Additional Model Numbers
HC5000, HC5000T
