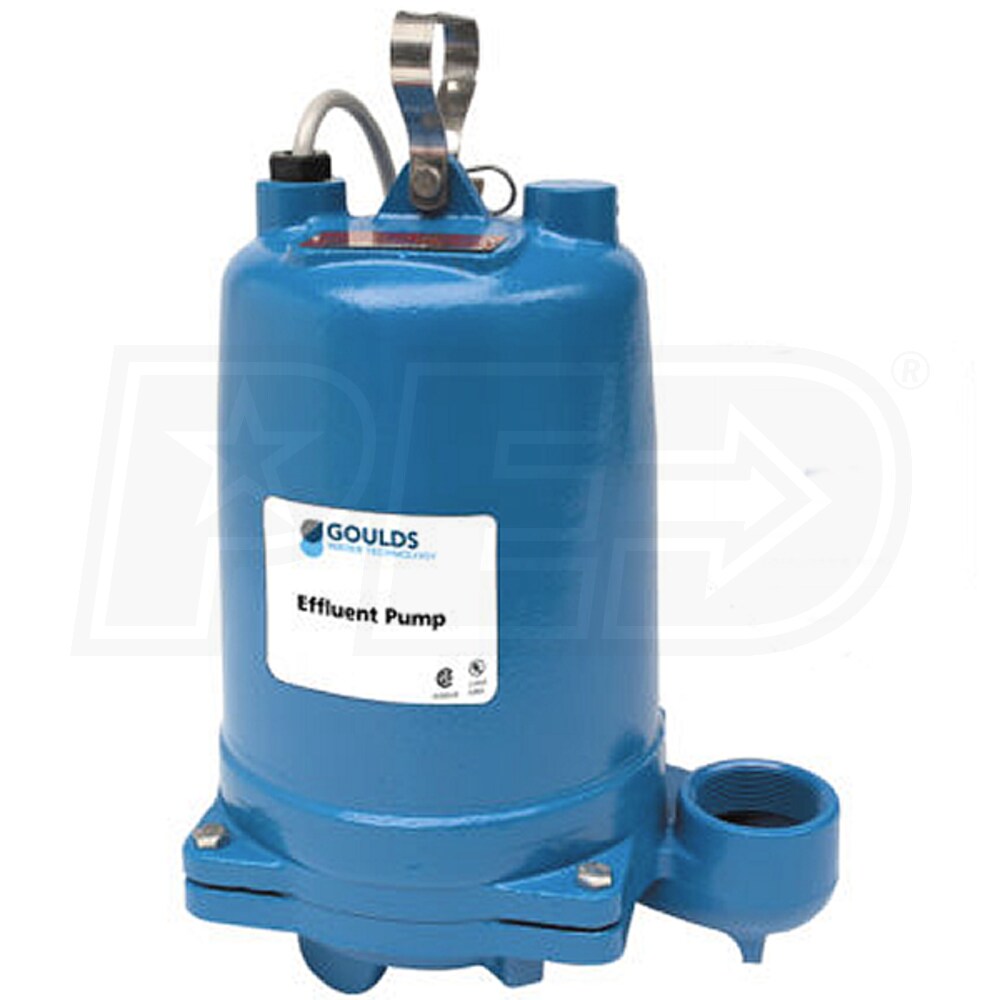

Goulds WE Series - 1/2 HP Cast Iron Effluent Pump (Non-Automatic)

Model:

WE0511H

Write A Review
Add to Cart for Price
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
Factory-Direct
Ships in 8-12 Weeks

Goulds WE Series - 1/2 HP Cast Iron Effluent Pump (Non-Automatic)
Goulds WE Series - 1/2 HP Cast Iron Effluent Pump (Non-Automatic)
Model: WE0511H
Add to Cart for Price
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

4680 Gallons

Switch Type

None

  • ***NON-AUTOMATIC - Requires Float Switch or Controller***
  • Goulds WE Series Cast Iron Submersible Effluent Pump
  • Ideal for residential greywater & septic applications
  • Heavy-Duty Cast Iron Housing & Volute
  • Robust design provides maximum efficiency
  • 1/2 HP, Capacitor Start Motor
  • Oil-filled and thermally protected w/ auto reset
  • Fully-submerged design provides efficient heat transfer
  • Cast Iron, Semi-Open Impeller
  • Dynamically balanced, non-clog design w/ pump out vanes
  • Easily handles solids up to 3/4"
  • Silicon Carbide Mechanical Seal
  • Provides superior abrasion resistance
  • Stainless Steel Shaft & Upper / Lower Ball Bearings
  • Helps extend the lifespan of the pump
  • Designed for Continuous Operation
  • Can be operated continuously without damage when fully submerged
  • Capable of running dry without damage to components
  • 2" NPT (Female) Discharge
  • Will replace most pumps without any plumbing changes
  • 20-Foot Power Cord w/ Plug
  • Severe duty rated, oil and water resistant
  • 1-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Lead which is known to the State of California to cause Developmental Harm.
For more information go to: www.p65Warnings.ca.gov

Specifications

WE0511H
specs product image PID-96920
General Information
Product Category
Sump Pump
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
14.5
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Silicon Carbide
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
4680
GPH @ 5 feet
4680
GPH @ 10 feet
4680
GPH @ 15 feet
4200
GPH @ 20 feet
3600
Discharge Port Size
2 Inch
Check Valve Included
No
Max Head
35 Feet
Engine
Horsepower
.5 HP
Overview
Product Category
Sump Pump
Weight
71 Pounds
Made in USA
Yes
Consumer Warranty
1 Year
Product Length
11.5 Inches
Product Width
8.5 Inches
Product Height
16 Inches
UPC
697666007827
