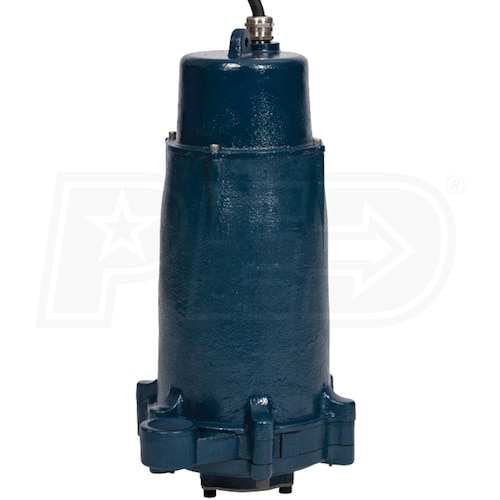

Franklin Electric IGPH-A231-30* - 2 HP Cast Iron High Head Automatic Grinder Pump w/ Brass Impeller & 30' Leads (Float Not Included) (230V)
Model:
515716
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Sewage Pump
GPH
2400 Gallons
Switch Type
None
- FPS - IGPH-A231-30* - IGPH-A Series Grinder Pump 208-230V
- For the toughest residential and commercial wastewater applications
- Min Head 10'; Provides up to 200' Max Head
- Epoxy Powder Coated Cast Iron Construction
- Provides excellent corrosion-resistance & durability
- Automatic Design* (Mechanical Float Not Included)
- Start/Run components encased in oil-free chamber requiring no control panel
- 2 HP 3450 RPM Single Phase Motor (208-230V)
- Built-in overload, over-current & over-temperature protection
- Hardened Stainless Steel, Patented Cutter Design
- Tight cutting clearances for superior grinding at 414,000 cuts per minute
- Brass, 7-Vane, Angled Face Impeller
- Balanced, non-clogging design for extended pump life
- Carbon & Ceramic Mechanical Seal
- Assures maximum protection for extended pump life
- Stainless Steel Shaft w/ Upper/Lower Ball Bearings
- Minimizes friction while providing smooth & quiet operation
- 1-1/4" FNPT Discharge
- Vertical discharge design for easy installation
- 30' Power Cord
- 2-Year Limited Warranty
- *Requires Float Switch - Sold Separately
- FPS - IGPHR-A231-30 - IGPH-A Series Grinder Pump 208-230V
California residents see
Warning: This product can expose you to chemicals including Carbon black (airborne, unbound particles of respirable size) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
515716
Base
Base Material
Cast Iron
Min Sump Basin Size
18 Inch
Motor
Voltage
230 Volt
Running Amps
18.5
Thermal Protection
Yes
Power Cord Length
30 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Brass
Handles Solids
Yes
Float Type
No Switch
GPH @ 0 feet
2400
Discharge Port Size
1-1/4 Inch
Check Valve Included
No
Manual Override
Yes
Max Head
200 Feet
Min Head
10 Feet
Submersible
Yes
Engine
Horsepower
2 HP
Overview
Weight
109 Pounds
Made in USA
Yes
Consumer Warranty
2 Years
Product Length
10.9 Inches
Product Width
10.8 Inches
Product Height
18.8 Inches
UPC
0010121000971
