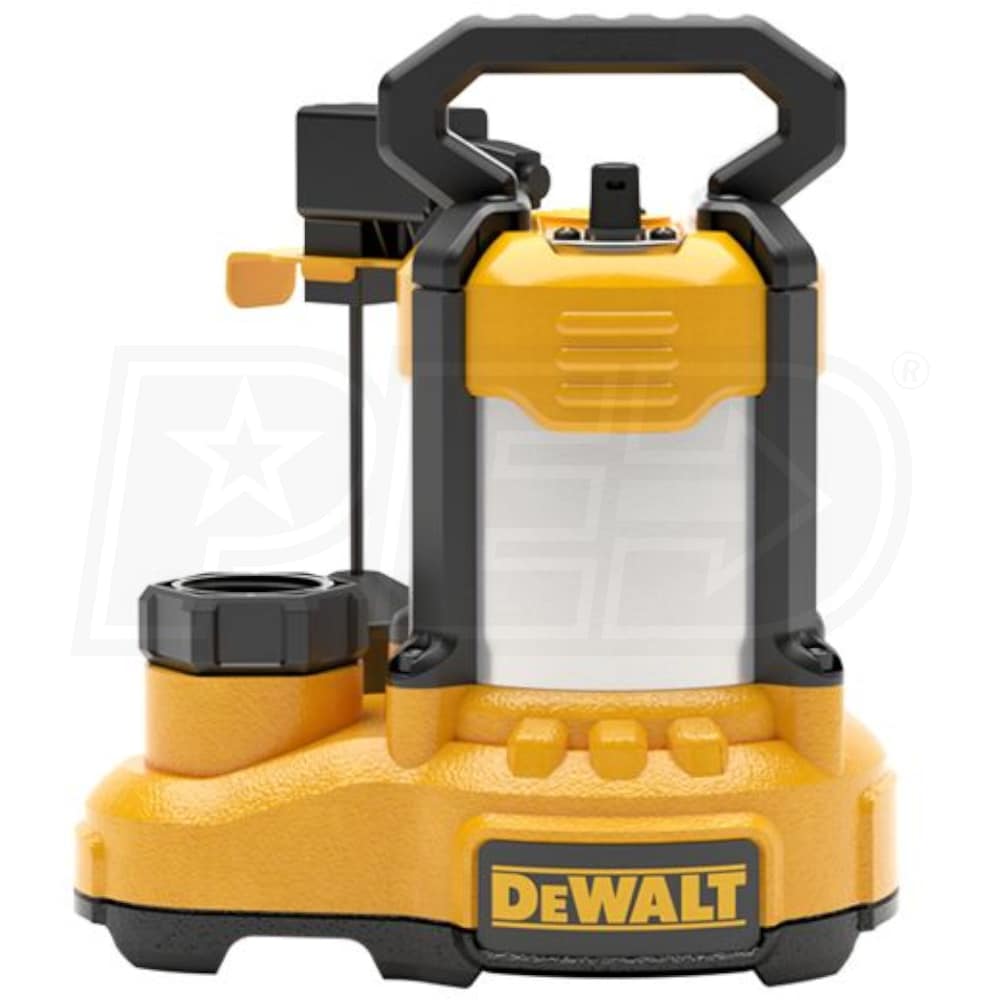

DEWALT 1/3 HP Cast Iron / Stainless Steel Submersible Sump Pump w/ Vertical Float Switch

Model:

DXWP62383

Write A Review
$199.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Friday, Dec 27th
Shipping to60601
DEWALT 1/3 HP Cast Iron / Stainless Steel Submersible Sump Pump w/ Vertical Float Switch
DEWALT 1/3 HP Cast Iron / Stainless Steel Submersible Sump Pump w/ Vertical Float Switch
Model: DXWP62383
$199.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

4500 Gallons

Switch Type

Vertical

  • DEWALT Submersible Sump Pump w/ Vertical Float Switch
  • Engineered to be contractor tough and keep your basement dry
  • 1/3 HP, Oil-Cooled, Hermetically-Sealed Motor
  • Energy-efficient design, only draws 6.5A
  • Thermal Overload Protection
  • Helps extend motor life in demanding applications
  • Cast Iron Base, Stainless Steel Housing & Aluminum Motor Cap
  • Durable design to maximize pump life in sump applications

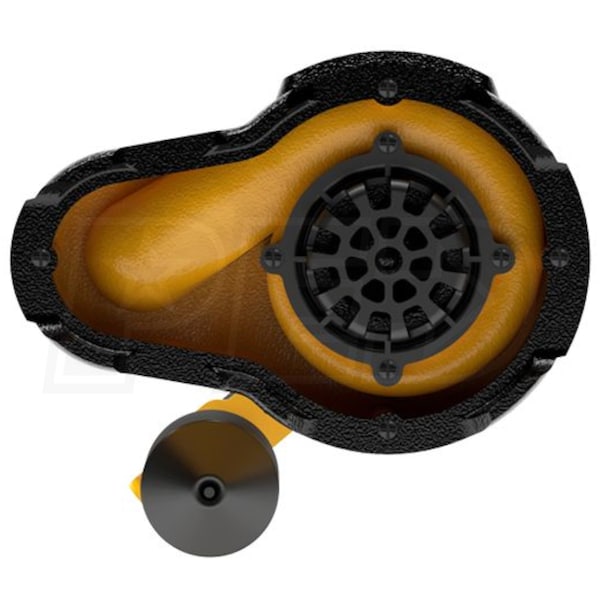

  • High Flow, Cast Iron Impeller
  • Easily handles solids up to 1/2" diameter

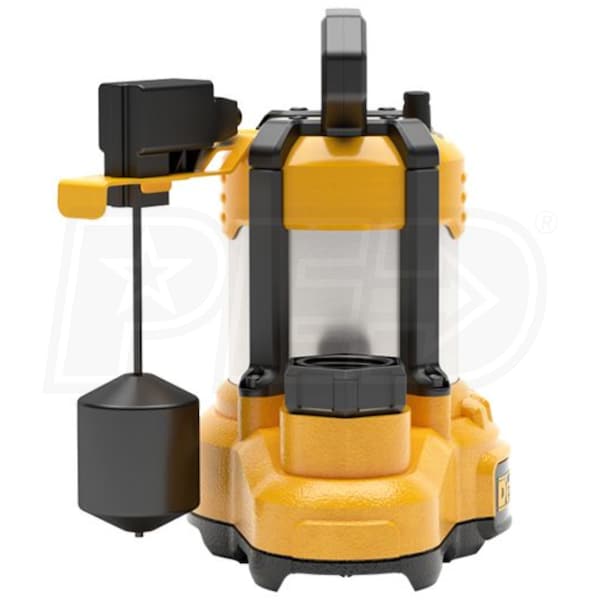

  • Vertical Float Switch w/ Piggyback Plug
  • Provides reliable automatic operation; Tested over 3M cycles
  • Switch can be bypassed to run pump manually
  • SS Motor Shaft & Carbon/Ceramic/SS Shaft Seal
  • Robust components help prevent leaks
  • 2" FPT Discharge w/ 1-1/2" Adapter
  • Allows for maximum discharge and increased performance
  • Makes it easy to connect to your existing discharge line
  • Stainless Steel Fasteners
  • Helps extend pump life in harsh sump conditions
  • 10' Power Cord w/ 3-Prong Plug
  • Ideal for residential sump applications
  • 10-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

DXWP62383
specs product image PID-124708
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.5
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Stainless Steel
Impeller Material
Cast Iron
Solids Handling Size
0.5 inch
Handles Solids
Yes
Float Type
Vertical Float
GPH @ 0 feet
4500
GPH @ 5 feet
4200
GPH @ 10 feet
3780
GPH @ 15 feet
3360
GPH @ 20 feet
1620
Discharge Port Size
1-1/2 Inch and 2 Inch
Check Valve Included
No
Float On
5.5
Float Off
1.5
Manual Override
Yes
Max Head
25 Feet
Submersible
Yes
Remote Monitoring
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
24 Pounds
Consumer Warranty
10 Years
Product Length
9.7 Inches
Product Width
10.4 Inches
Product Height
12.9 Inches
UPC
725113623839
