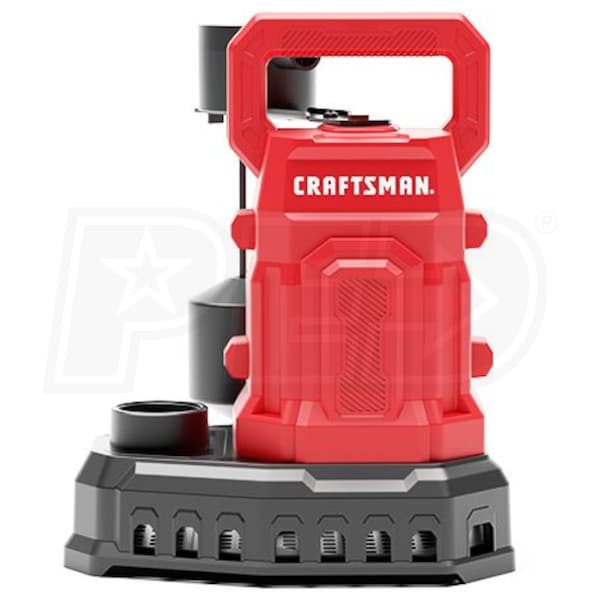

Craftsman 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch

Model:

CMXWUSD62348

Write A Review
$139.00
Free Shipping
  Learn More About Free Freight
Free Shipping
*This product qualifies for Free Shipping anywhere in the contiguous US. Accessories may ship separately. Items over 100lbs shipped via semi-truck, be sure to select "Lift Gate" to lower the product to the ground curbside. Remote area surcharges may apply, see our full shipping policy for more details.
In-Stock
Ships Wednesday, Dec 4th
Shipping to60601
Craftsman 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Craftsman 1/3 HP Thermoplastic Submersible Sump Pump w/ Vertical Float Switch
Model: CMXWUSD62348
$139.00
Accessories
Features
Specifications
Reviews
Product Q&A
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Primary

GPH

3500 Gallons

Switch Type

Vertical

  • Craftsman Submersible Sump Pump w/ Vertical Float Switch
  • Designed for use in residential sump applications
  • 1/3 HP Split Capacitor, Oil-Cooled Motor
  • Energy-efficient design allows for easier start-ups
  • Solid copper winding for increased performance and motor life
  • Thermal Overload Protection
  • Helps extend motor life in demanding applications
  • Thermoplastic Construction
  • Corrosion-resistant design provides long life in sump applications
  • SJE-Rhombus Vertical Float Switch w/ Piggyback Plug
  • Provides reliable automatic operation; Tested over 2M cycles
  • Switch can be bypassed to run pump manually
  • SS Motor Shaft & Carbon/Ceramic/SS Shaft Seal
  • Robust components help prevent leaks
  • 1-1/2" FPT Discharge
  • Allows for maximum discharge and better performance
  • Quad-Foot Base w/ Integral Screen
  • Provides a wider footprint for increased stability
  • Helps filter out large debris to prevent clogging
  • 10' Power Cord w/ 3-Prong Plug
  • Ideal for residential sump applications
  • 3-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

CMXWUSD62348
specs product image PID-124703
Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Housing Material
Thermoplastic
Impeller Material
Plastic
Solids Handling Size
.375 inch
Handles Solids
Yes
Float Type
Vertical Float

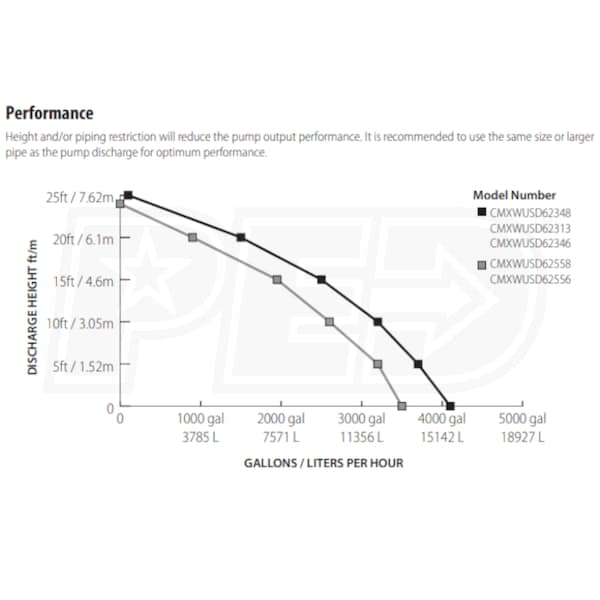

GPH @ 0 feet
3500
GPH @ 5 feet
3200
GPH @ 10 feet
2600
GPH @ 15 feet
1950
GPH @ 20 feet
900
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
6.5
Float Off
2
Manual Override
Yes
Max Head
24 Feet
Submersible
Yes
Remote Monitoring
No
Engine
Horsepower
.33 HP
Overview
Product Category
Sump Pump
Weight
9.4 Pounds
Consumer Warranty
3 Years
Product Length
9 Inches
Product Width
9.7 Inches
Product Height
11.8 Inches
UPC
725113623488
