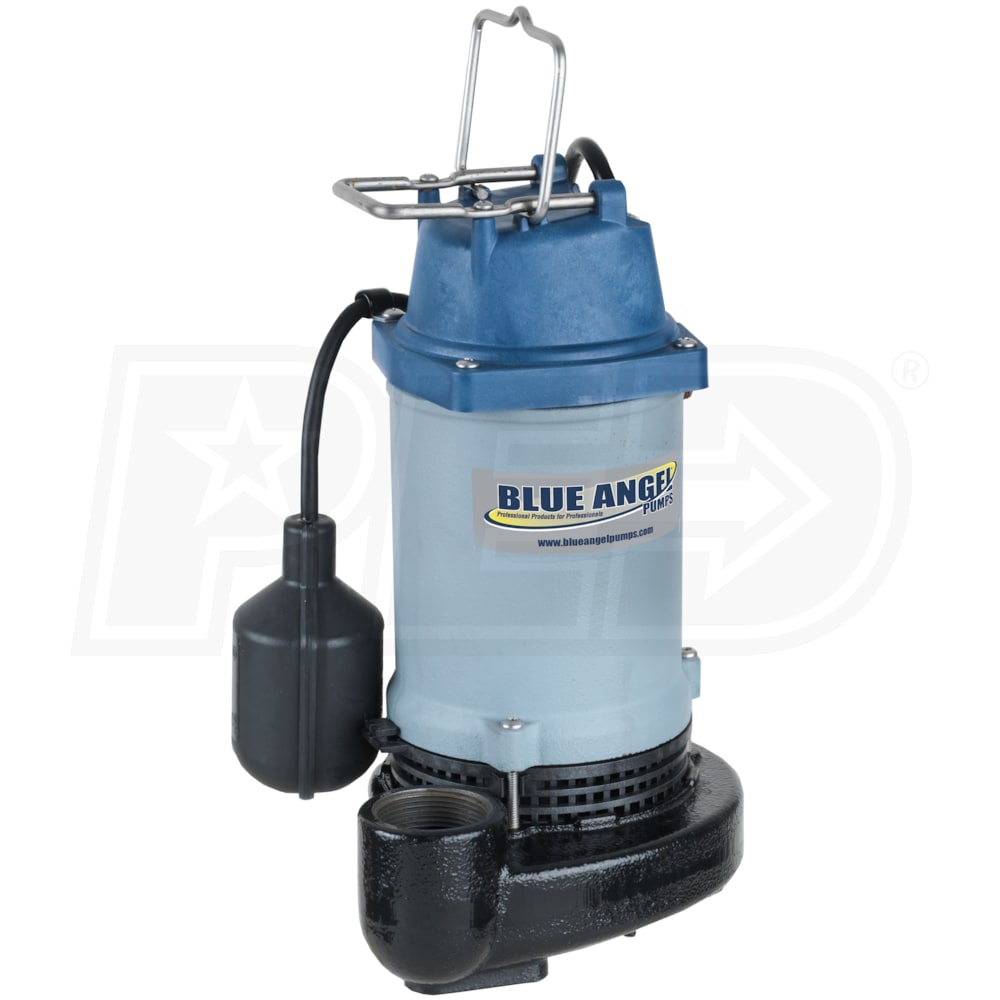

Blue Angel Pumps 1/2 HP Dual Suction Cast Iron Effluent Pump w/ Piggy-Back Tether Float Switch
Model:
T50DSE
+
Share This Product
Recommended Accessories
Expert Recommended Accessories
Selected by Jim, our Expert
Required Accessories
9
These accessories are required to properly setup/install this product.
Optional Accessories
10
Features
Style
Effluent
GPH
5220 Gallons
Switch Type
Piggy-Back Tether
Product Video Disclaimer: "PED is not responsible for any variances from the product in this video and the item you purchase. Please review all product specs prior to purchase."
- T50DSE - Blue Angel Professional Series 1/2 HP Automatic Submersible Effluent Pump
- Assembled in the USA, with foreign and domestic parts
- Epoxy-Coated Cast Iron Motor Housing & Base
- Corrosion-resistant construction maximizes pump life
- 1/2 HP Permanent Split Capacitor (PSC) Motor 120V
- Oil-Filled, thermally protected to prevent overheating and burnout
- Energy-efficient, low amp draw helps extend switch life
- Top Suction
- Centrifugal actions provides maximum water flow while eliminating risk of air lock
- Screened intake filters debris and helps minimize clogging

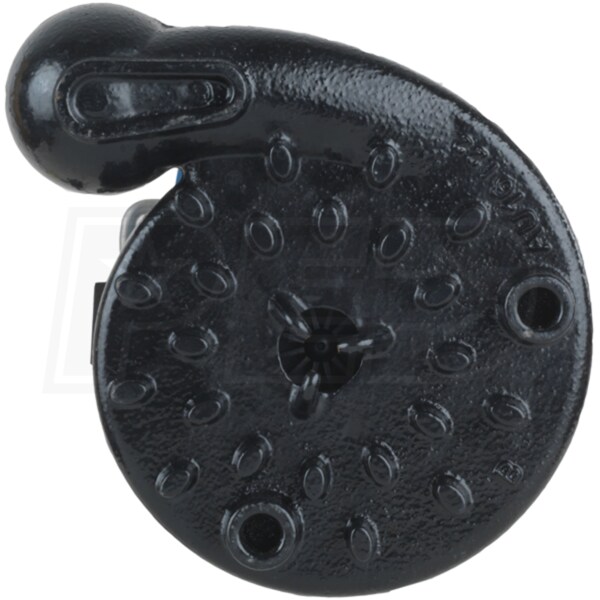

- Bottom Suction
- Vortex design allows pump to pass solids up to 1/2"
- Multi-ring strainer bases filter debris to help prevent clogging
- Corrosion-Resistant Thermoplastic Impeller
- Provides maximum performance and reliability
- Piggy-Back Tether Float Switch
- Versatile design, allows for automatic or manual operation
- For use in 14" Diam. or larger effluent tanks
- 1-1/2-Inch NPT Discharge
- Simplifies installation and complies with building codes
- Carbon / Ceramic Shaft Seal
- Helps ensure increased durability in demanding effluent applications
- Continuous Duty Capability
- Upper/Lower ball bearings for smooth, quiet and longer pump life
- 20-Foot SJTW Power Cord
- Field replaceable design, plugs into standard 3-Prong outlets
- 3-Year Limited Warranty
California residents see
Warning: This product can expose you to chemicals including Di(2-ethylhexyl)phthalate (DEHP) which is known to the State of California to cause Cancer.
For more information go to: www.p65Warnings.ca.gov
Specifications
T50DSE
Base
Base Material
Cast Iron
Min Sump Basin Size
14 Inch
Motor
Voltage
120 Volt
Running Amps
3.8
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Pump
Housing Material
Cast Iron
Impeller Material
Plastic
Solids Handling Size
.5 inch
Handles Solids
Yes
Float Type
Piggy-Back Tether Switch
GPH @ 0 feet
5220
GPH @ 5 feet
4440
GPH @ 10 feet
3480
GPH @ 15 feet
2460
GPH @ 20 feet
1080
Discharge Port Size
1-1/2 Inch
Check Valve Included
No
Float On
15
Float Off
7
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Weight
22 Pounds
Consumer Warranty
3 Years
Product Length
7.57 Inches
Product Width
7.291 Inches
Product Height
12.635 Inches
UPC
040066218230
