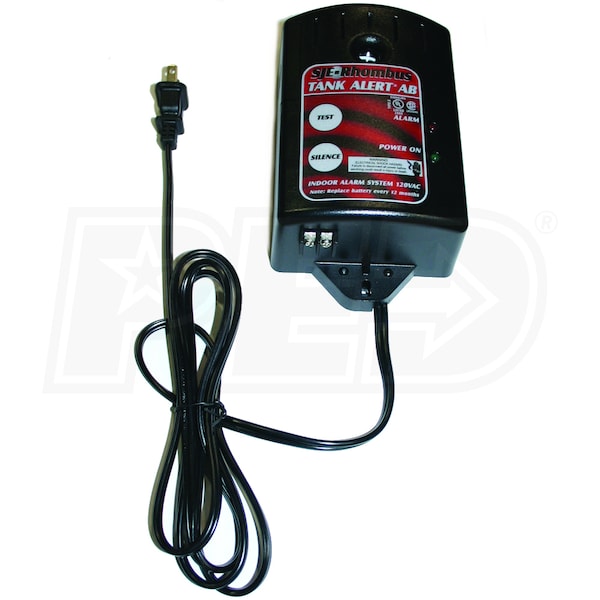

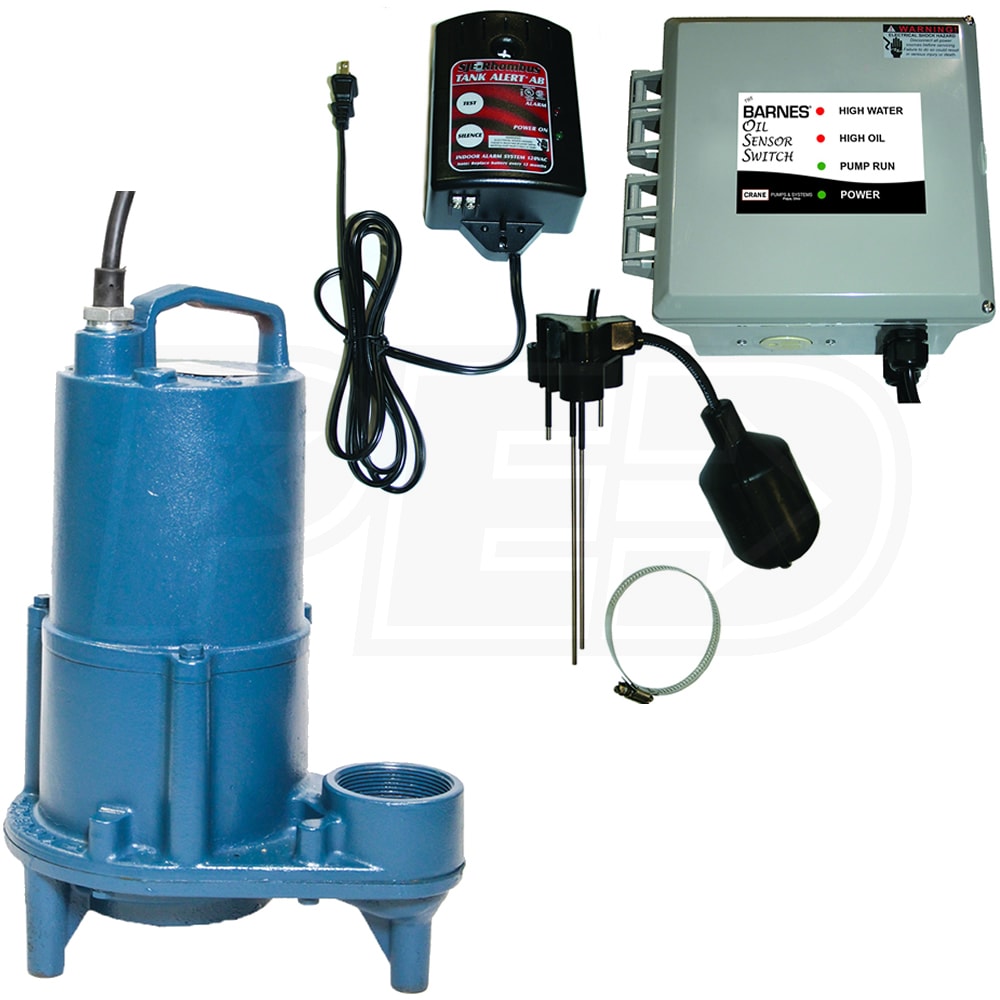

Barnes BOSS Oil Sensor Switch w/ EHV412 1/2 HP Effluent Pump & Hight Water Alarm

Model:

135786

Write A Review
Product Discontinued
Sorry, this product is no longer available.
Continue Shopping With These Categories
Barnes BOSS Oil Sensor Switch w/ EHV412 1/2 HP Effluent Pump & Hight Water Alarm
Barnes BOSS Oil Sensor Switch w/ EHV412 1/2 HP Effluent Pump & Hight Water Alarm
Model: 135786
Product Discontinued
Accessories
Features
Specifications
Reviews
How-To Articles
Manuals
Share

Recommended Accessories

Sump Pumps Direct expert image
Expert Recommended Accessories Selected by Jim, our Expert
Required Accessories 9
These accessories are required to properly setup/install this product.
Optional Accessories 10

Features

Style

Effluent

GPH

2880 Gallons

Switch Type

Electronic

  • Barnes BOSS Oil Sensor Switch & High Water Alarm w/ 1/2 HP Effluent Pump
  • For simplex pump control in elevator pits
  • Allows for water to be removed while preventing oil from being pump

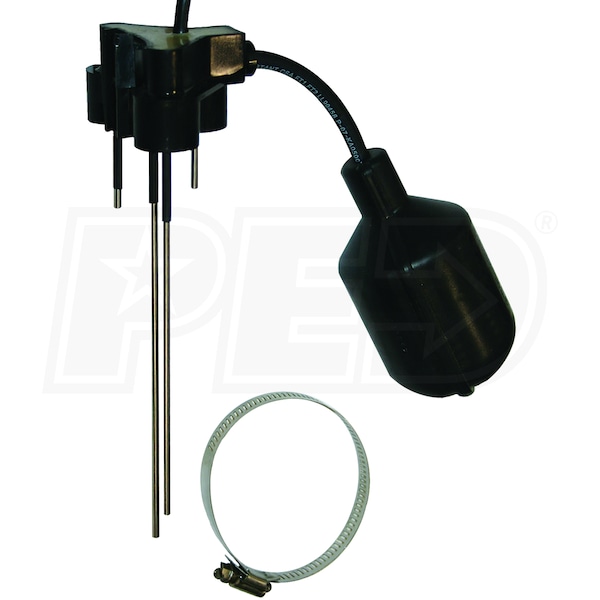

  • Oil Watch Switch - ASME A17.1 Compliant
  • Activates the pump to remove water from the pit
  • Stops the pump before oil/harmful substances are discharged

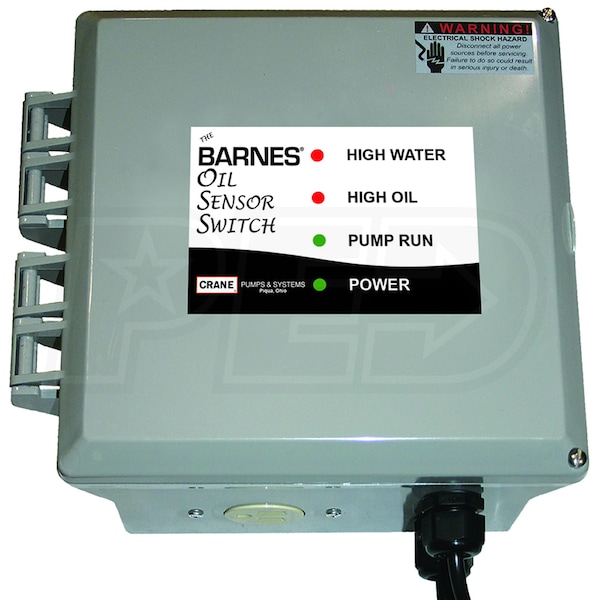

  • NEMA 1 Control Panel
  • Designed for indoor applications
  • LED Indicator Lights
  • Makes it easy to identify a high water / high water situation
  • Auxiliary Contacts
  • For connection of remote alarms, auto-dialers & building automation systems
  • 120V 15A Pump Plug Receptacle & 10-Foot Power Cord (120V)
  • Allows for easier installation

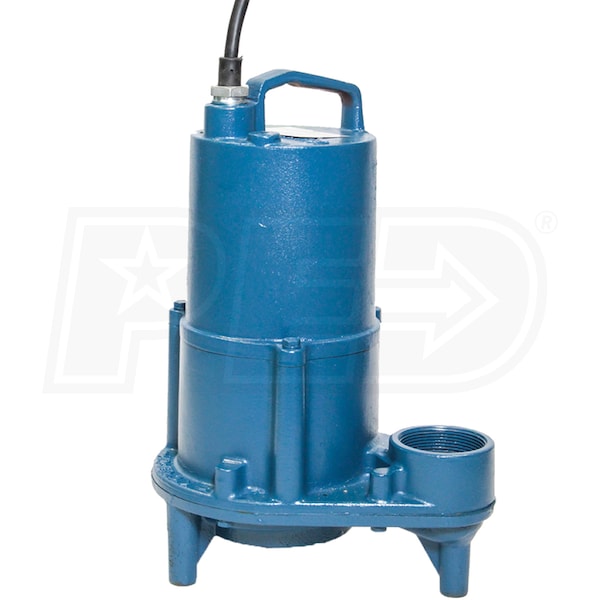

  • Barnes EHV412 - 1/2 HP Cast Iron Effluent Pump
  • Cast Iron motor housing and pump body
  • 1/2 HP Permanent Split-Capacitor (PSC) Motor
  • Thermally protected, energy-efficient design, only draws 6.4 FLA
  • Multi-Vane, Cast Iron Vortex Impeller
  • Allows for easy-passage of spherical solids up to 3/4"
  • Stainless Steel Shaft & Hardware
  • Robust design helps increase life-span of pump
  • Oil-Lubricated, Upper & Lower Ball Bearings
  • Provides increased life-span and quieter operation
  • 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov

Specifications

135786
specs product image PID-80828
Base
Base Material
Cast Iron
Motor
Voltage
120 Volt
Running Amps
6.4
Thermal Protection
Yes
Power Cord Length
20 Feet
Oil Free Motor
No
Starting Amps
19.6
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.75 inch
Handles Solids
Yes
Total Head Lift
45 Feet
Float Type
Electronic
GPH @ 0 feet
2880
GPH @ 5 feet
2880
GPH @ 10 feet
2700
GPH @ 15 feet
2550
GPH @ 20 feet
2280
Discharge Port Size
2 Inch
Check Valve Included
No
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.5 HP
Overview
Weight
54 Pounds
Consumer Warranty
2 Years
