Features
Style
Primary
GPH
3000 Gallons
Switch Type
Vertical

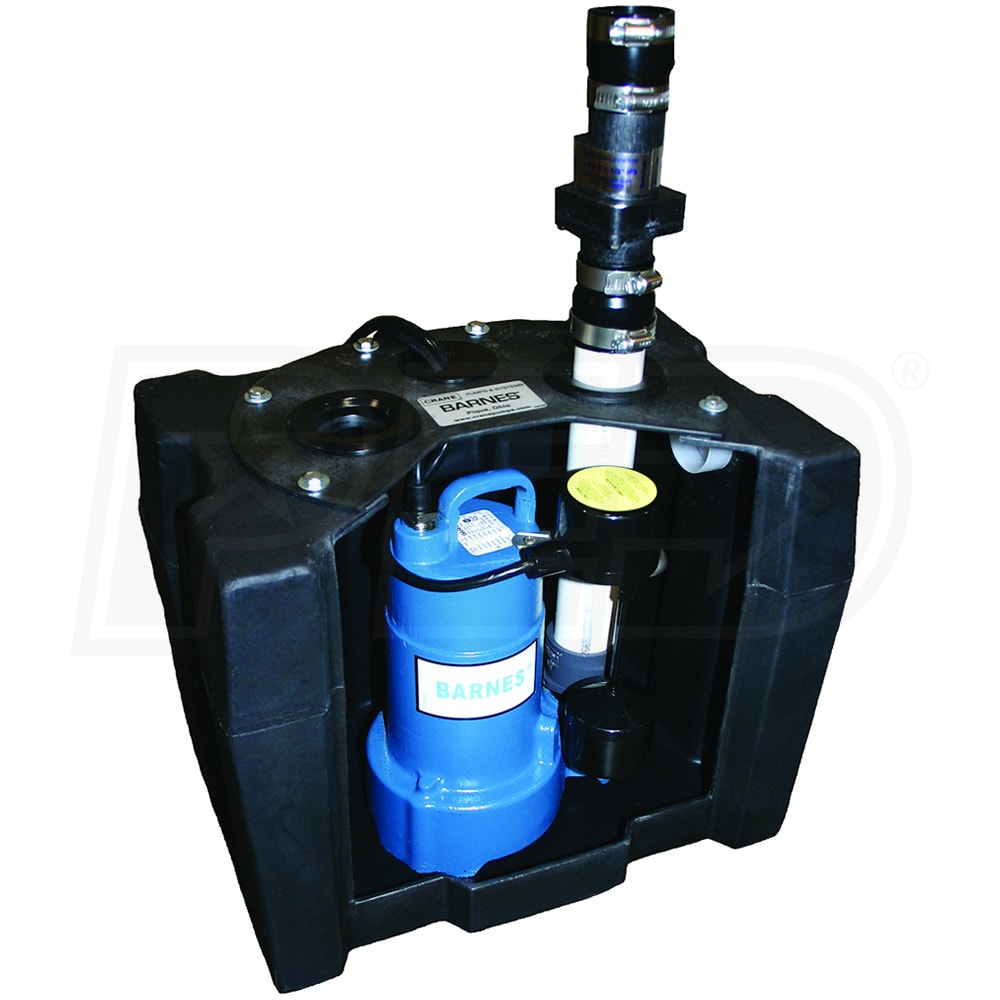

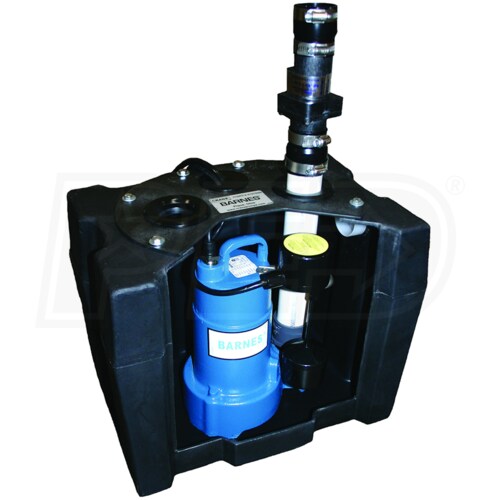

- Barnes SP33LT - 1/3 HP Commercial Laundry Tray System w/ Vertical Float Switch
- Designed for gray waste-water removal in a variety of locations

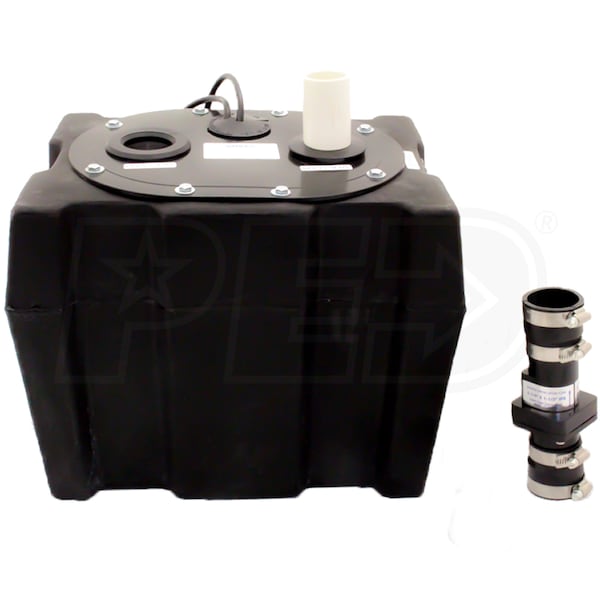

- 11-Gallon Basin (12" x 16" x 14")
- Durable, corrosion-resistant polyethylene construction
- 1/8" Thick, black closed-cell foam basket prevents debris from clogging pump
- 1-1/2" Inlet & Discharge
- Makes it easy to connect to your current plumbing system

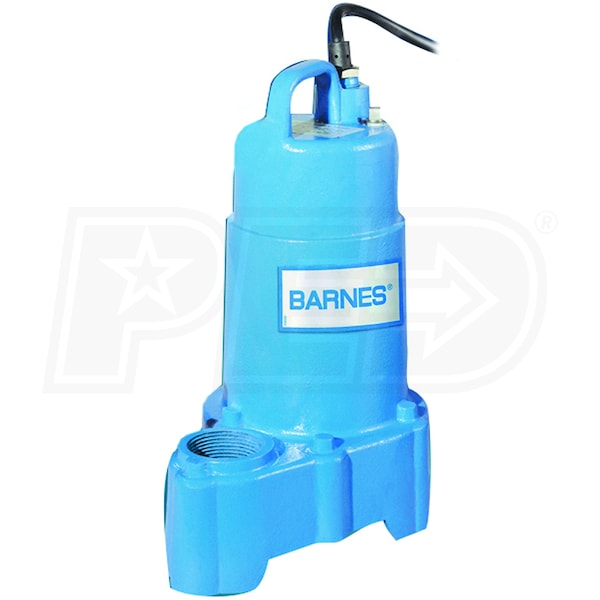

- Cast Iron Motor Housing
- Allows for maximum heat dissipation for increased motor life
- Thermoplastic Pump Body & Strainer
- Corrosion-resistant design provides long life in sump applications
- 1/2 HP Permanent Split-Capacitor (PCS) Motor
- Thermally protected, energy-efficient design, only draws 6.8 FLA

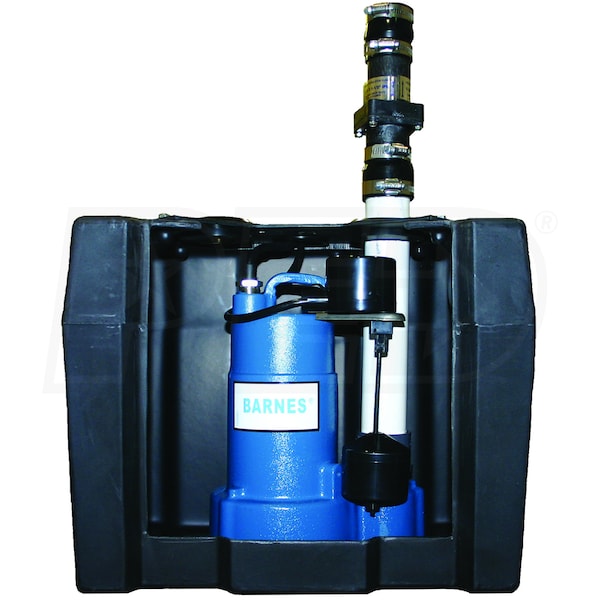

- Vertical Float Switch
- Provides reliable automatic-operation in sump pits 18"+
- 10-Vane, Cast Iron Vortex Impeller
- Allows for easy-passage of spherical solids up to 1/2"
- Carbon/Ceramic/Buna-N Seal
- Assures maximum protection against pump failure
- Stainless Steel Shaft & Hardware
- Robust design helps increase life-span of pump
- Oil-Lubricated, Upper & Lower Ball Bearings
- Provides increased life-span and quieter operation
- High Capacity 1-1/2" Discharge
- Includes check valve for easier installation
- 10-Foot Power Cord w/ Plug & Pressure Grommet
- GFCI compatible design with sealing and strain relief
- 2-Year Limited Warranty
California residents see
WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov.
For more information go to: www.p65Warnings.ca.gov
Specifications
112900

Base
Base Material
Thermoplastic
Motor
Voltage
120 Volt
Running Amps
5.8
Thermal Protection
Yes
Power Cord Length
10 Feet
Oil Free Motor
No
Pump
Mechanical Seal Material
Ceramic Carbon
Housing Material
Cast Iron
Impeller Material
Cast Iron
Solids Handling Size
.5 inch
Handles Solids
Yes

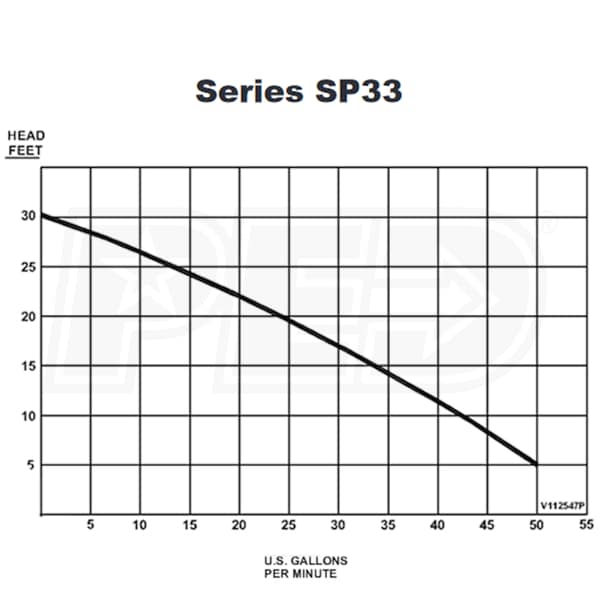

Total Head Lift
30 Feet
Float Type
Vertical Float
GPH @ 0 feet
3000
GPH @ 5 feet
3000
GPH @ 10 feet
2550
GPH @ 15 feet
1980
GPH @ 20 feet
1500
Discharge Port Size
1-1/2 Inch
Check Valve Included
Yes
Manual Override
Yes
Submersible
Yes
Engine
Horsepower
.33 HP
Overview
Weight
26 Pounds
Consumer Warranty
2 Years
Product Length
12 Inches
Product Width
16 Inches
Product Height
14 Inches
